DANA 80 REAR - CHEVY - GMC > BEARINGS - SEALS - SHIMS > SHIMS

Dana Spicer 707481X SHIM KIT fits Dana 80 REAR end Chevy GMC 2000 to 2007 GMT 560 and P truck with BOM 606200
Part Number:
707481X


UPC:
023913148997

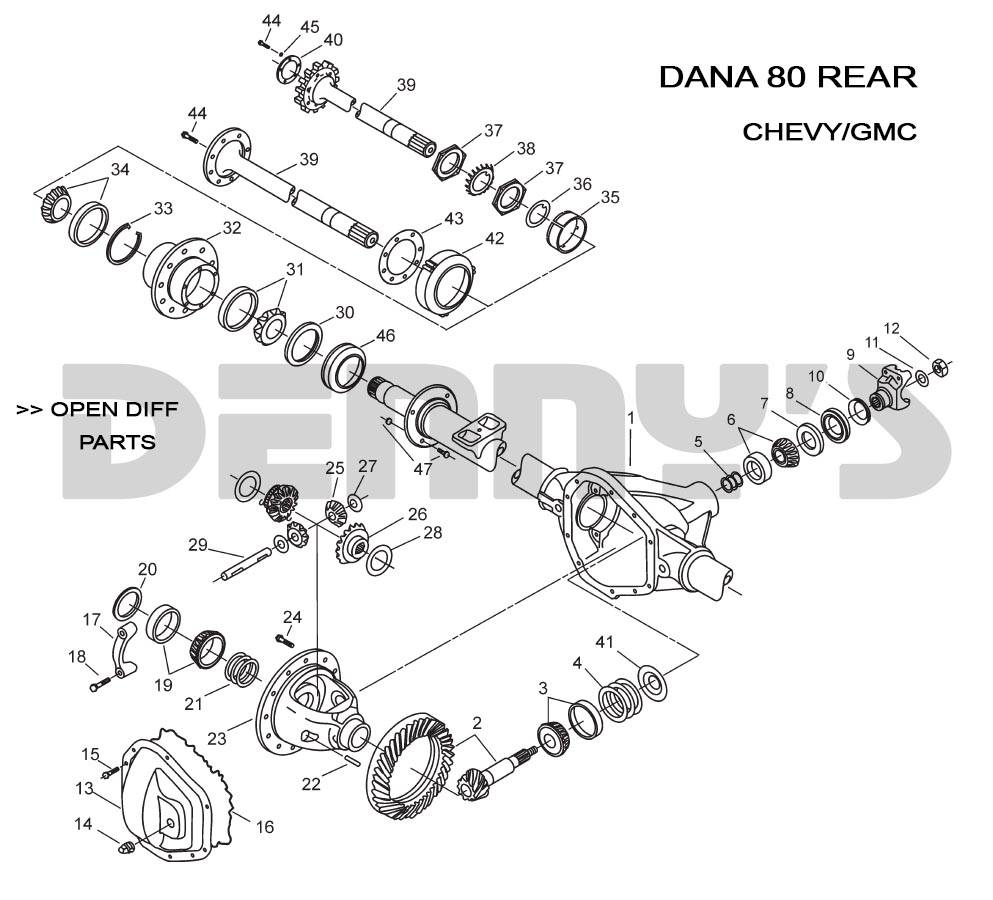

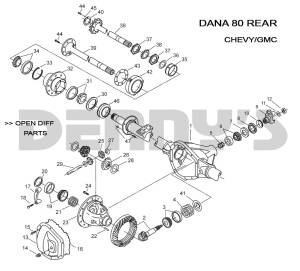

Diagram Number:
4,20,21
Your Cost $87.42 Sale Price $73.22
You Save $14.20
STATUS:  IN STOCK

DANA SPICER 707481X

SHIM Kit - For Differential Side bearings and Pinion Bearings

  • Fits Dana 80 Rear
  • Fits Chevy GMC - GMT560 and P truck with BOM 606200
    • 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

NOTE: Use this kit with inner pinion bearing 707447X

INCLUDES

  • (9) Diff Side Bearing Shims
    • 2.765 OD
    • 2.025 ID
    • various thickness .038 to .052
  • (2) Outboard Diff Side Bearing preload spacers
    • 3.035 OD
    • 2.525 ID
    • .030 thickness
  • (9) Pinion Bearing Shims
    • 1.970 OD
    • 1.640 ID
    • various thickness .010 to .030
  • (1) 2001855 Pinion Nut
  • (1) 37104 Washer



Spicer
Dana Spicer 707481X SHIM KIT fits Dana 80 REAR end Chevy GMC 2000 to 2007 GMT 560 and P truck with BOM 606200
Dana Spicer 707481X SHIM KIT fits Dana 80 REAR end Chevy GMC 2000 to 2007 GMT 560 and P truck
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $87.42 Sale Price $73.22
You Save $14.20

DANA SPICER 707481X

SHIM Kit - For Differential Side bearings and Pinion Bearings

  • Fits Dana 80 Rear
  • Fits Chevy GMC - GMT560 and P truck with BOM 606200
    • 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

NOTE: Use this kit with inner pinion bearing 707447X

INCLUDES

  • (9) Diff Side Bearing Shims
    • 2.765 OD
    • 2.025 ID
    • various thickness .038 to .052
  • (2) Outboard Diff Side Bearing preload spacers
    • 3.035 OD
    • 2.525 ID
    • .030 thickness
  • (9) Pinion Bearing Shims
    • 1.970 OD
    • 1.640 ID
    • various thickness .010 to .030
  • (1) 2001855 Pinion Nut
  • (1) 37104 Washer


Dana Spicer 707481X SHIM KIT fits Dana 80 REAR end Chevy GMC 2000 to 2007 GMT 560 and P truck with BOM 606200

Dana Spicer 707481X SHIM KIT fits Dana 80 REAR end Chevy GMC 2000 to 2007 GMT 560 and P truck
