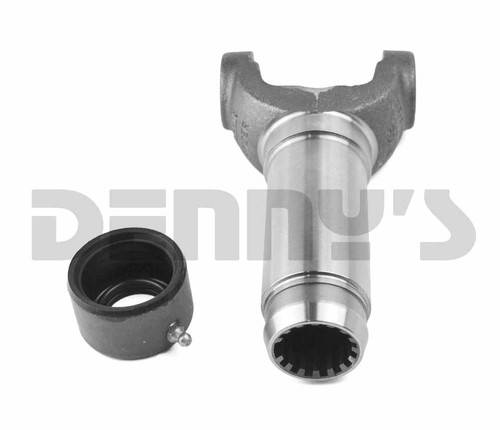

DANA SPICER 3-3-2701KX Slip Yoke 1350 Series 15/16 spline 6.810 inches

DANA SPICER 3-3-2701KX

1350 Series Slip Yoke

• Spline/Hole Outside Diameter = 1.375
• Number of Splines = 15/16
• Series = 1350
• Lock up style = OUTSIDE
• Universal Joint Width = 3.625
• D - Universal Joint Bore = 1.187
• Dust Cap Part Number = 211121X
  • Dust Cap Style = 1 PIECE PRESS ON
• F - Center of u-joint bore to plug = 1.190
• J - Center of u-joint bore to End of Slip yoke = 6.810
