Dana Spicer DB250C54003C Ready Pack Driveshaft Kit SPL250 series mid-ship carrier bearing style coupling shaft fits 5.118 x 0.197 wall tube
DB250C54003C
Dana Spicer DB250C54003C
Ready Pack Driveshaft Kit in a Box
- SPL250 series
- Mid-ship carrier bearing style coupling shaft
- All the parts you need to repair, rebuild or make a new SPL250 driveshaft
- Use on driveshaft base part number 250CS54003C
- Note: 5.118 OD - 0.197 wall Tubing is NOT included in the kit
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$799.95
Description
Dana Spicer DB250C54003C
Ready Pack Driveshaft Kit in a Box
- SPL250 series
- Mid-ship carrier bearing style coupling shaft
- All the parts you need to repair, rebuild or make a new SPL250 driveshaft
- Use on driveshaft base part number 250CS54003C

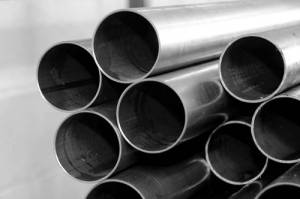

- Note: 5.118 OD - 0.197 wall Tubing is NOT included in the kit See tubing part number 120-30-5-7300
DB250C54003C Kit includes the following parts:
- (1) SPL250-3X Universal Joint
- (1) 250-28-17 Weld Yoke to fit 5.118 x 0.197 wall tubing
- (1) 250-53-11 Stub Shaft for center support bearing to fit 5.118 x 0.197 wall tubing
- (1) 10094142 Support Bearing
- (1) 250-4-21-1 End Yoke
- (1) 250-74-11 Nut
- (1) 230123-6 Washer
Note: 5.118 OD - 0.197 wall Tubing is NOT included in the kit
Details
- DB250C54003C
- DB250C54003C
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 66.0 lbs.
- W20.0000” x H10.0000” x L20.0000”
- FREE SHIPPING ON PARTS ORDERS OVER $99
- >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
