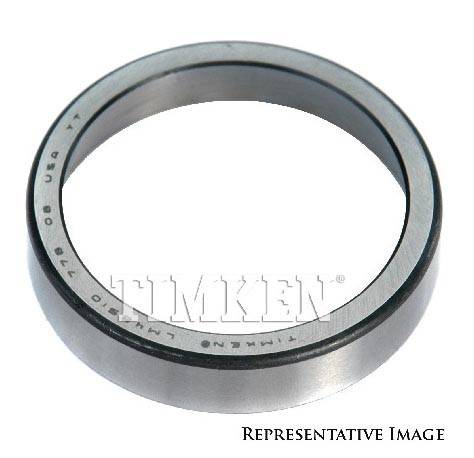

Timken M802011 Tapered Roller Bearing Cup Outer Pinion Bearing Dana 80 Dodge

TIMKEN BEARING CUP M802011

Outer Pinion Bearing Cup - Dana 80 Dodge

• TIMKEN Tapered Roller Bearing M802011
  • BEARING CUP - BEARING RACE
• Use with Timken M802048 Bearing CONE
• Exploded View Number 6

DID YOU KNOW:

• TIMKEN offers the most extensive line of tapered roller bearings available anywhere in the world.
• TIMKEN Tapered roller bearings are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings. They manufacture nearly 26,000 tapered roller bearing combinations – in single, double and four-row tapered roller bearing configurations. Customized geometries and engineered surfaces can be applied to these tapered roller bearings to further enhance performance in demanding applications.
• TIMKEN Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads.
