Dana Spicer 42414 ABS Wheel Speed Sensor TONE RING for Dodge Dana 80 REAR end fits 1994 to 2002
Diagram Number: 38
42414
Dana Spicer 42414
ABS Wheel Speed Sensor TONE RING
- Fits Dodge Dana 80 REAR end
- 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
- Mounts on diff carrier and held in place by ring gear
- 120 teeth
- OD = 11.02 in.
- ID = 9.12 in.

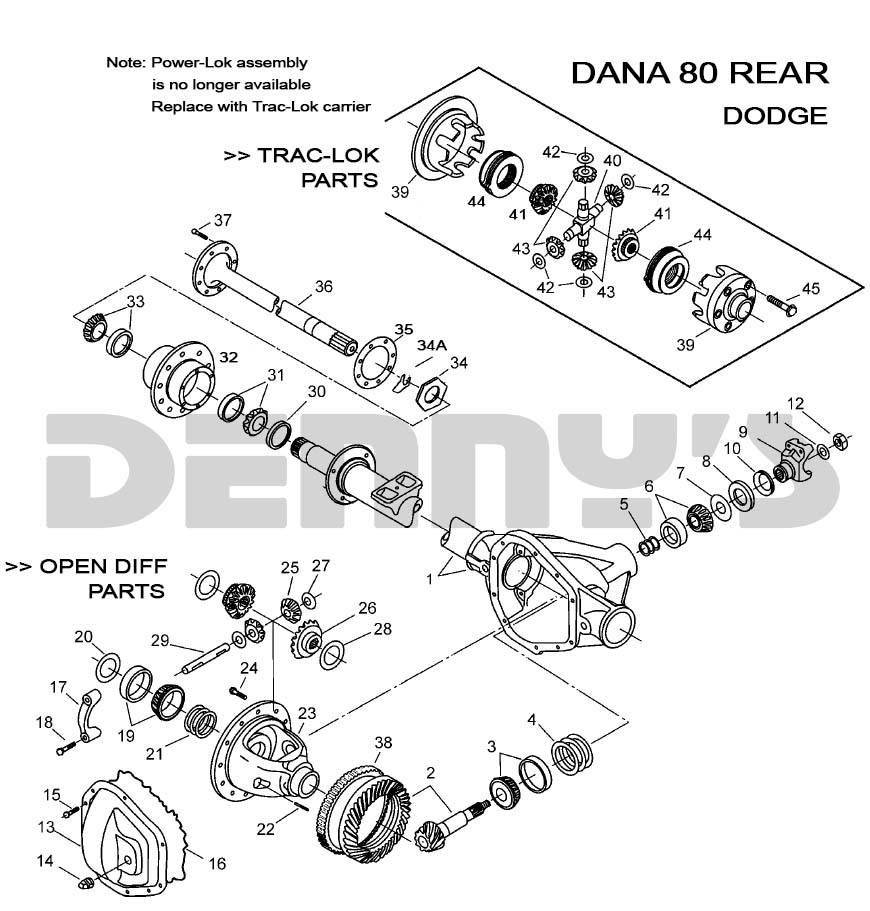

Exploded View number 38
Limited Supply: only 2 remaining
Pricing:
$79.95
Description
Dana Spicer 42414
ABS Wheel Speed Sensor TONE RING
- Fits Dodge Dana 80 REAR end
- 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002
- Mounts on diff carrier and held in place by ring gear
- 120 teeth
- OD = 11.02 in.
- ID = 9.12 in.
Exploded View number 38
Details
- 42414
- 42414
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 2.0 lbs.
- W10.0000” x H1.0000” x L10.0000”
