Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

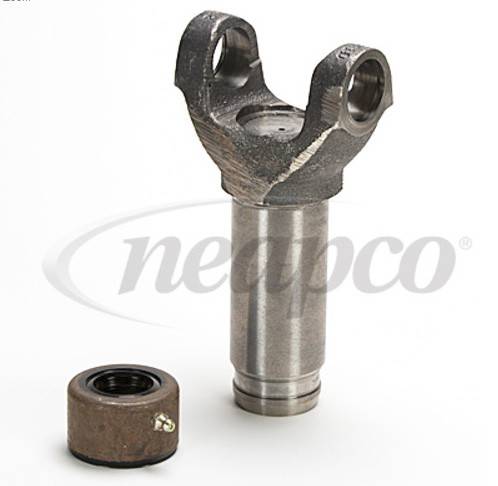

NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches
Part Number:
N3-3-2701KX


UPC:
083869021355
Your Cost $101.47
STATUS:  IN STOCK

NEAPCO N3-3-2701KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

  • Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft.  It will fit in place of the original slip yoke on any 15/16 spline driveshaft with a spline diameter of 1.375 inches
  • 15/16 splines and 1.375 inch Spline Diameter
  • 6.810 inches from center of u-joint bearing cap to end of yoke with seal removed.
Neapco
NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches
NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $101.47

NEAPCO N3-3-2701KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft.  It will fit in place of the original slip yoke on any 15/16 spline driveshaft with a spline diameter of 1.375 inches

  • Has one wide (Keyed) spline for proper alignment
  • Can be used on 15/16 spline driveshaft and also
  • Can be used on a normal 16 spline driveshaft

Designed for 1350 series u-joint.  See bottom of this page for 1350 series u-joints

  • 3 5/8 inches between snap rings
  • 1 3/16 diameter bearing caps

15/16 splines and 1.375 inch Spline Diameter

  • Fits 1516 spline driveshaft with 1.375 spline Diameter
    • For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
    • Spline Drawing copyright Denny's Driveshafts
  • Includes PRESS on seal
  • 6.810 inches from center of u-joint bearing cap to end of yoke with seal removed.
    • Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
    • Slip Yoke Drawing copyright Denny's Driveshafts
NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches

NEAPCO N3-3-2701KX Slip Yoke 1350 series 15/16 spline 6.810 inches
