Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 2010948 Companion Flange 29 Spline fits Dana 60, 61, 70 Front or Rear ends can be used with 1310, 1330, 1350 and 1410 series flange yokes
Part Number:
2010948


UPC:
023913235253

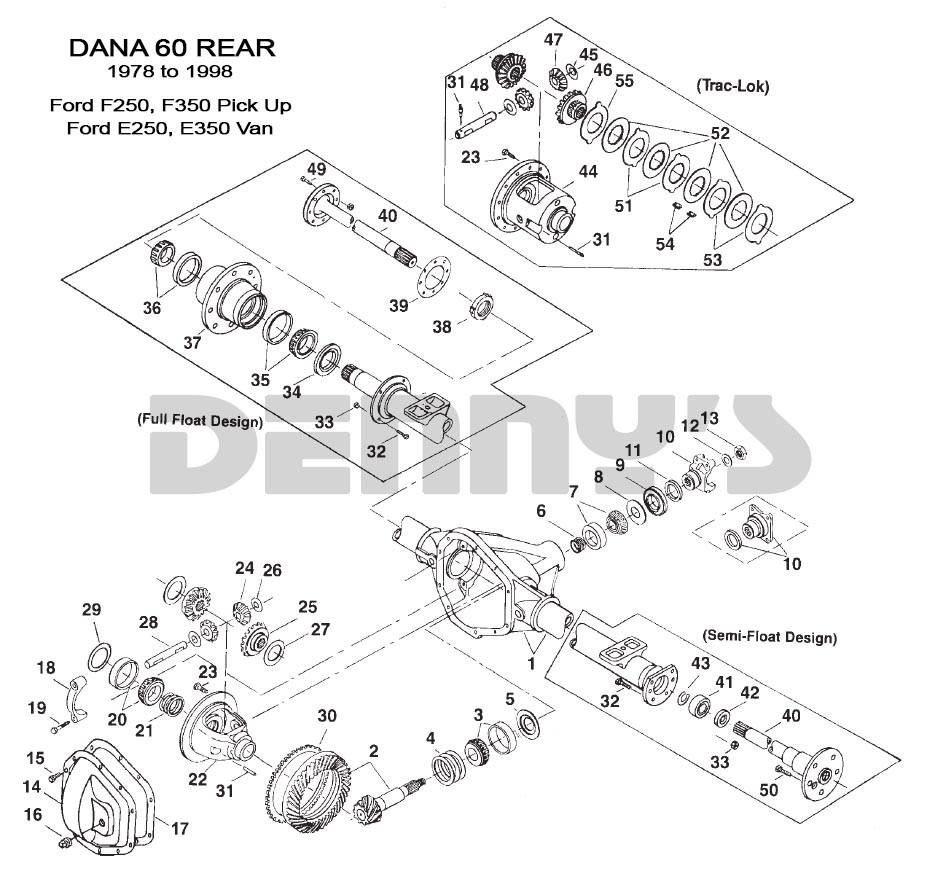

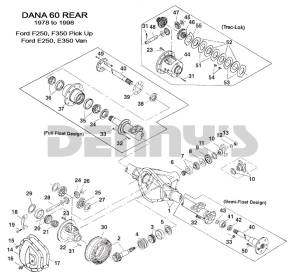

Diagram Number:
10
Your Cost $59.95
STATUS:  IN STOCK

Dana Spicer 2010948

  • COMPANION FLANGE
  • Fits Dana 60, 61, 70 FRONT or REAR ends
  • 29 splines
  • 1.875 inches seal surface
  • 1.5 inches length through splined hole
  • 8 mounting holes
    • M12-1.75T Metric thread
    • Note: Only 4 holes are needed for mounting flange yoke
    • See bottom of this page for flange yoke choices

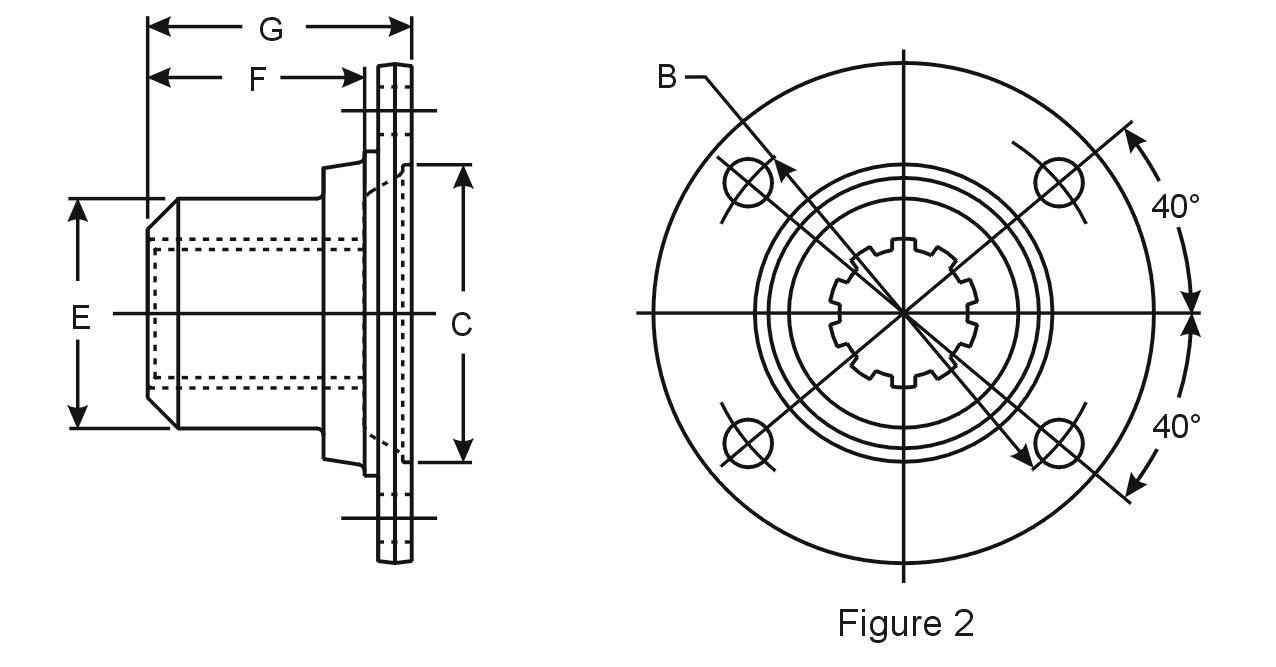

    • 4.25 inch bolt circle - diagonally
  • 1.955 inches from flange mounting face to end of splined hole
  • 2 inch male pilot diameter

Can be used with 1310, 1330, 1350 and 1410 flange yokes

  • Great way to connect any 1310, 1330, 1350 or 1410 series driveshaft to a Dana 60, 61, 70 Front or Rear end


Spicer
Dana Spicer 2010948 Companion Flange 29 Spline fits Dana 60, 61, 70 Front or Rear ends can be used with 1310, 1330, 1350 and 1410 series flange yokes
Dana Spicer 2010948 Companion Flange 29 Spline fits Dana 60, 61, 70 Front or Rear ends
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $59.95

Dana Spicer 2010948

  • COMPANION FLANGE
  • Fits Dana 60, 61, 70 FRONT or REAR ends
  • 29 splines
  • 1.875 inches seal surface
  • 1.5 inches length through splined hole
  • 8 mounting holes
    • M12-1.75T Metric thread
    • Note: Only 4 holes are needed for mounting flange yoke
    • See bottom of this page for flange yoke choices
    • 4.25 inch bolt circle - diagonally
  • 1.955 inches from flange mounting face to end of splined hole
  • 2 inch male pilot diameter

Can be used with 1310, 1330, 1350 and 1410 flange yokes

  • Great way to connect any 1310, 1330, 1350 or 1410 series driveshaft to a Dana 60, 61, 70 Front or Rear end
