NEAPCO N3-3-2471KX Slip Yoke 1350 series 32 spline 6.625 inches

Part Number:
N3-3-2471KX

UPC:

083869004884

Your Cost ~~$96.27~~ Sale Price $95.24

You Save $1.03

STATUS: IN STOCK

NEAPCO N3-3-2471KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 32 spline driveshaft with a spline diameter of 1.375 inches
32 splines and 1.375 inch Spline Diameter
6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.

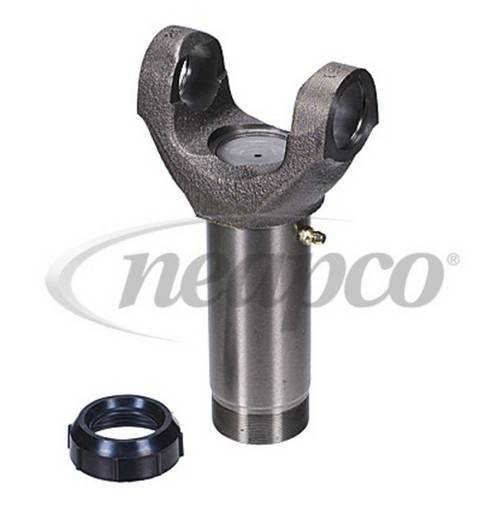

Neapco N3-3-2471KX Slip Yoke 1350 series 32 spline

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$96.27~~ Sale Price $95.24

You Save $1.03

NEAPCO N3-3-2471KX

1350 series Slip Yoke

Fits Front or Rear Spline and Slip Style Driveshaft

Use this slip yoke to upgrade to 1350 series and retain your existing driveshaft. It will fit in place of the original slip yoke on any 32 spline driveshaft with a spline diameter of 1.375 inches

Designed for 1350 series u-joint. See bottom of this page for 1350 series u-joints

3 5/8 inches between snap rings
1 3/16 diameter bearing caps

32 splines and 1.375 inch Spline Diameter

Fits 32 spline driveshaft with 1.375 spline Diameter
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
Includes screw on seal
6.625 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed

Neapco N3-3-2471KX Slip Yoke 1350 series 32 spline
