Dana Spicer 6.5-53-171 Midship splined stub 1810 series 46 splines fits 4.500 x .134 wall tube
Part Number:
6.5-53-171


UPC:
023913211981
Your Cost $222.50 Sale Price $187.44
You Save $35.06
STATUS:  FACTORY DIRECT TO YOU

Dana Spicer 6.5-53-171

MIDSHIP STUB SPLINE

Use with 1810 series Center Support Bearing

  • 2.350 inch diameter spline
  • 46 SPLINES
    • Fits TUBE DIAMETER = 4.500 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .134 inch Tube wall thickness
      • Butt diameter = 4.242
    • Major SPLINE Diameter = 2.350
    • SPLINES = 46

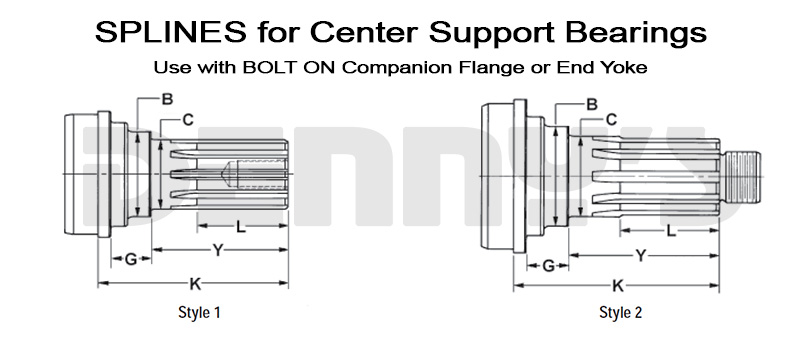

    • STYLE = 2
    • B = 2.875
    • C = 2.362
    • G = .812
    • K = 5.312
    • L = 2.625
    • Y = 4.000
    • Thread size = 1.250-18
  • SPECIAL NOTES: Spline has helix on tooth. End yokes will be a tight fit.

Spicer
Dana Spicer 6.5-53-171 Midship splined stub 1810 series 46 splines fits 4.500 x .134 wall tube
Dana Spicer 6.5-53-171 Midship splined stub 1810 series 46 splines fits 4.500 x .134 wall tubing
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $222.50 Sale Price $187.44
You Save $35.06

>>>>> SPECIAL ORDER PART:  This part number is a special order.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

Dana Spicer 6.5-53-171

MIDSHIP STUB SPLINE

Use with 1810 series Center Support Bearing

  • 2.350 inch diameter spline
  • 46 SPLINES
    • Fits TUBE DIAMETER = 4.500 inch OUTSIDE TUBE Diameter
    • Fits TUBE WALL THICKNESS =  .134 inch Tube wall thickness
      • Butt diameter = 4.242
    • Major SPLINE Diameter = 2.350
    • SPLINES = 46
    • STYLE = 2
    • B = 2.875
    • C = 2.362
    • G = .812
    • K = 5.312
    • L = 2.625
    • Y = 4.000
    • Thread size = 1.250-18
  • SPECIAL NOTES: Spline has helix on tooth. End yokes will be a tight fit.

Dana Spicer 6.5-53-171 Midship splined stub 1810 series 46 splines fits 4.500 x .134 wall tube

Dana Spicer 6.5-53-171 Midship splined stub 1810 series 46 splines fits 4.500 x .134 wall tubing

You May Also Need These Parts to Complete the Job

Spicer SELECT 25-210875-1X Center Support Bearing for 1760/1810 series
$71.95 $67.95
