Dana Spicer 10007803 CHROMOLY OUTER AXLE fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect Front Axle

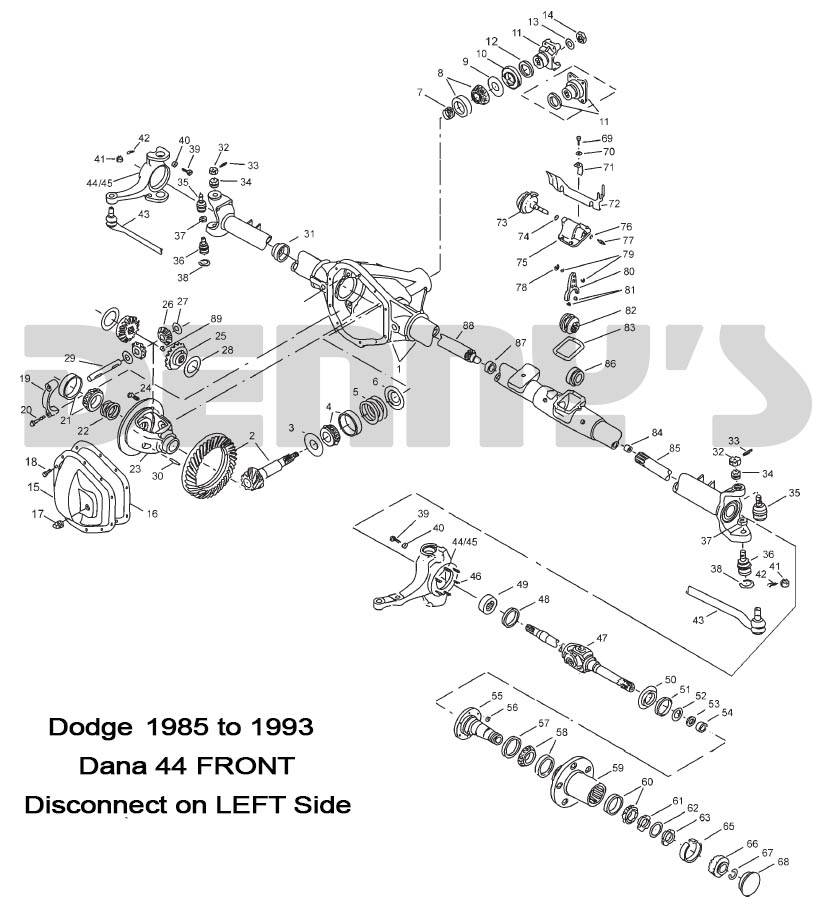

Diagram Number: 47-OUTER
10007803
DANA SPICER 10007803
- CHROMOLY OUTER AXLE SHAFT - Replaces old part number 36503
- Fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
- ONLY Fits Bill of Materials number 610360-2 ONLY
- CHECK to be sure Dimension B = 9.72 inches on original axle before buying
- Some 1991 - 1991-1/2 will have slightly longer outer axle See Part Number 621063
- 10007803 is the Chromoly replacement for 620200
Limited Supply: only 3 remaining
Pricing:
$247.95
Description
DANA SPICER 10007803
- CHROMOLY OUTER AXLE SHAFT - Replaces old part number 36503
- Fits 1991 to 1991-1/2 DODGE W150, W200, W250 with DANA 44 Disconnect front axle
- ONLY Fits Bill of Materials number 610360-2 ONLY
- CHECK to be sure Dimension B = 9.72 inches on original axle before buying
- Some 1991 - 1991-1/2 will have slightly longer outer axle See Part Number 621063
- 10007803 is the Chromoly replacement for 620200
DIMENSIONS
- 19 SPLINES
- B1 = 1.250 inch diameter with 19 splines
- B = 9.72 inches Centerline of u-joint to end of yoke
- Requires 5-760X Axle Universal Joint
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
Details
- 10007803
- 10007803
- Spicer
- Available
- New
Categories
- DODGE 4X4 Front - DANA 44 - W150, W200, W250 DISCONNECT FRONT - 1985 to 1993-1/2 DODGE - AXLES
- AXLES and FRONT DIFF Parts 4X4 - DODGE 4X4 Front - DANA 44 - W150, W200, W250 DISCONNECT FRONT - 1985 to 1993-1/2 DODGE
- DANA 44 - W150, W200, W250 DISCONNECT FRONT - 1985 to 1993-1/2 DODGE - AXLES - AXLES - OUTER
Shipping Information
- Item Requires Shipping
- 8.0 lbs.
- W6.0000” x H5.0000” x L10.0000”
