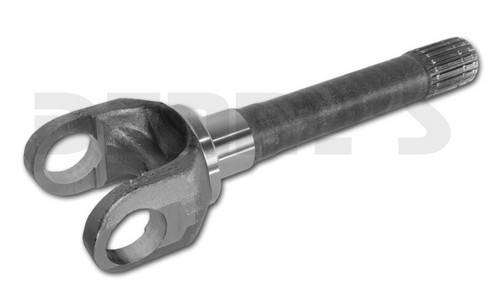

Dana Spicer 41677 OUTER AXLE SHAFT fits 1979 to 1987 GM Truck & Blazer 8.5 inch 10 Bolt Front Axle 19 Spline AXLE
Part Number:
41677


UPC:
023913140823
Your Cost $59.95
STATUS:  IN STOCK

Dana Spicer 41677

  • OUTER AXLE SHAFT
    • 19 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
      • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • Genuine DANA SPICER Replacement Front Axle Shaft



Spicer
Dana Spicer 41677 OUTER AXLE SHAFT fits 1979 to 1987 GM Truck & Blazer 8.5 inch 10 Bolt Front Axle 19 Spline AXLE
Dana Spicer 41677 OUTER AXLE SHAFT fits 1979 to 1987 GM Truck & Blazer 8.5 inch 10 Bolt Front Axle 19 Spline AXLE
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $59.95

Dana Spicer 41677

  • OUTER AXLE SHAFT
    • 19 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
      • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
  • Genuine DANA SPICER Replacement Front Axle Shaft

DIMENSIONS

  • 19 SPLINES
  • Dimension "B1" =  1.250 inch diameter
  • Dimension "B" = 9.94 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
    • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
    • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

UPGRADE AVAILABLE:

  • See Dana Spicer 10007802 CHROMOLY outer axle shaft upgrade. Replaces Dana Spicer 41677 and 41677-1541
  • See bottom of this page
