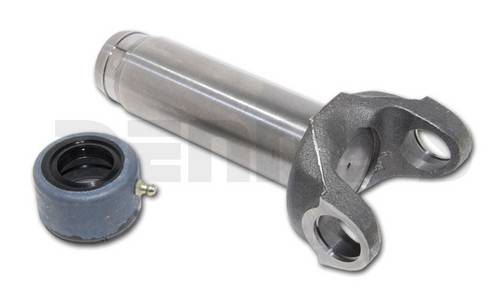

DANA SPICER 2-3-8041KX Driveshaft Slip Yoke 1330 series 16 spline 7.5 inches
2-3-8041KX
DANA SPICER 2-3-8041KX
1330 series Slip Yoke
Fits Front or Rear Spline and Slip Style Driveshaft
- 16 splines and 1.375 inch Spline Diameter
- 7.5 inches from center of u-joint bearing cap to end of yoke with seal removed.
Limited Supply: only 8 remaining
Pricing:
$67.95
Description
DANA SPICER 2-3-8041KX
1330 series Slip Yoke
Designed for 1330 series u-joint. See bottom of this page for 1330 series u-joints
- E = 3 5/8 inches between snap rings
- D = 1 1/16 diameter bearing caps
- J = 7.5 inches from center of u-joint bearing cap to end of yoke with seal removed.
- Measure from CENTER of Bearing Cap Hole to END of Yoke with seal removed
- Fits 16 spline driveshaft with 1.375 spline Diameter
- For proper fit be sure to Measure OUTSIDE DIAMETER of SPLINED SHAFT
- Includes press on seal ....Note: For ease of installation we will press on the Seal before shipping
Details
- 2-3-8041KX
- 2-3-8041KX
- Spicer
- Available
- New
Categories
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS - 1330 SPLINE and SLIP DRIVESHAFT
- BUILD IT YOURSELF - PARTS LISTS - 1330 SPLINE and SLIP DRIVESHAFT - BUILD 1330 SERIES with 2 INCH DIAMETER TUBE
- 1330 SPLINE and SLIP DRIVESHAFT - BUILD 1330 SERIES with 2 INCH DIAMETER TUBE - SPLINE and SLIP
- Driveline Parts - BUILD IT YOURSELF - PARTS LISTS
Shipping Information
- Item Requires Shipping
- 4.2 lbs.
- W6.0000” x H5.0000” x L8.0000”
