Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
Part #:
3-3-6541X
Your Cost $90.55

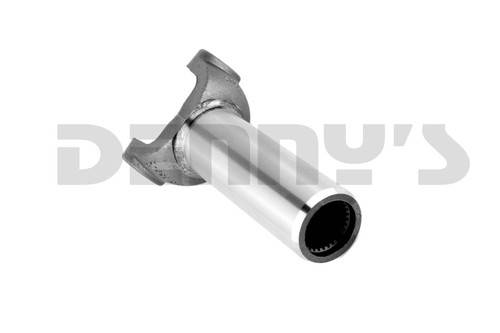

DANA SPICER 3-3-6541X

SLIP YOKE 1410 series

  • Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
    • Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
    • You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
  • Fits Dodge RAM 2500/3500 4x4 Rear Driveshaft
  • Fits Chevy and GMC 2500/3500 4x4 Rear Driveshaft




Spicer
DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $90.55

DANA SPICER 3-3-6541X

SLIP YOKE 1410 series

  • Fits New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output
    • Also fits some applications with 241DHD, 261HD, 263G, 263 XHD with 31 spline output.
    • You must verify dimension of slip yoke barrel to be 2.200 before ordering this part
  • Fits Dodge RAM 2500/3500 4x4 Rear Driveshaft
  • Fits Chevy and GMC 2500/3500 4x4 Rear Driveshaft

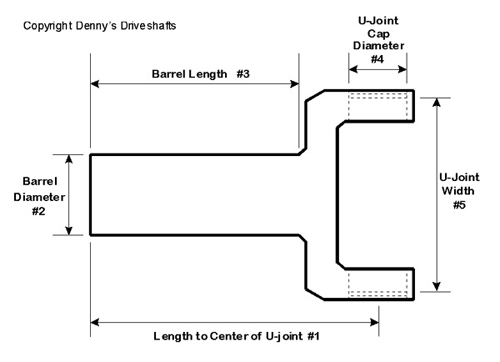

 DIMENSIONS

  • 1410 Series
  • Outside Snap Ring style
  • Length to center of u-joint... Dimension #1 =  8.34 inches
  • Barrel Diameter... Dimension #2 = 2.20 inches
  • Barrel Length... Dimension #3 =  6.312 inches
  • U-joint cap diameter... Dimension #4 = 1.188 inches
  • U-joint width... Dimension #5 = 4.188 inches
  • Series... 1410
  • Spline count... 30/31
  • Spline OD 1.615 inches
  • Counterbore Diameter = 1.655
  • Counterbore Depth = 0.270
  • Special Notes:  Counterbore at hub end





DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING

DANA SPICER 3-3-6541X Slip Yoke fits Dodge, Chevy, GMC 2500, 3500 4x4 with New Process NP261XHD NP263XHD Transfer Case with 31 spline rear output 1410 Series 8.34 inches long - FREE SHIPPING
