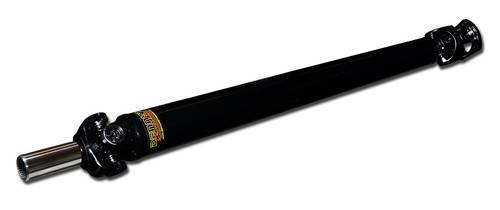

Denny's STR-330CV GM Double Cardan CV Driveshaft 3 inch DOM Steel to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat flange on rear end pinion.

Part Number:
STR-330CV

UPC:

Your Cost $805.95

STATUS: PLEASE CALL TO ORDER

Denny's STR-330CV

Custom Built 3 inch Double Cardan CV Driveshaft

Comes complete with slip yoke, universal joints and double cardan CV
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Fits rear end pinion flange with 4.25 inch bolt circle and 3.125 inch pilot diameter
- Replaces original equipment 3 universal joint double cardan cv driveshaft
- Larger 3 inch DOM tube is stronger than the original equipment 2.75 inch welded seam tube.
Recommended for use with less than 500 horsepower.
High speed High RPM balanced and tested for smooth overall performance

Denny's STR-330CV GM Double Cardan CV Driveshaft 3 inch DOM Steel to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat flange on rear end pinion.

Click for Larger Photo

STATUS: PLEASE CALL TO ORDER

YOUR COST: $805.95

Denny's STR-330CV

Custom Built 3 inch Double Cardan CV Driveshaft

Comes complete with slip yoke, universal joints and double cardan CV
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Fits rear end pinion flange with 4.25 inch bolt circle and 3.125 inch pilot diameter
- Replaces original equipment 3 universal joint double cardan cv driveshaft
- Transmission slip yoke in 27 or 32 splines to fit your application
Recommended for use with less than 500 horsepower.

Larger than stock 3 inch Diameter Tube - DOM Steel
- "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
- All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation. This is priceless when it comes to customer satisfaction!
All Denny's Driveshafts come Fully Assembled and ready to bolt in!

You also get...

- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
  - Please see our Free Lifetime Labor page for details. CLICK HERE

HOW TO MEASURE

>>>>>> Use both Diagram "K" and Diagram "L"

CLICK HERE to see Diagram "K" now
- On Diagram "K" we need the answers to NUMBERS 53, 53A, 53B, 54 and 55. You can skip number 52.
- If you have a T400 transmission with a 32 spline output shaft we need to know if it has a threaded hole in the end of the output shaft
- IMPORTANT: On Diagram "K" please see number 54.
  - Number 54 must be 3.125 inches for this driveshaft to fit your car
CLICK HERE to see Diagram "L" now
- On DIAGRAM "L" we need the answer to NUMBER 59 only on this page to build your order
- IMPORTANT: On Diagram "L" please see number 59.
  - Number 59 must be 4.25 inches for this driveshaft to fit your car

OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!
