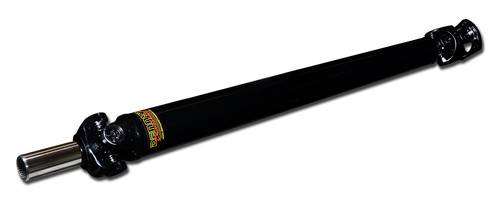

Denny's STR-330CV GM Double Cardan CV Driveshaft 3 inch DOM Steel to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat flange on rear end pinion.
STR-330CV
Denny's STR-330CV
Custom Built 3 inch Double Cardan CV Driveshaft
- Comes complete with slip yoke, universal joints and double cardan CV
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Fits rear end pinion flange with 4.25 inch bolt circle and 3.125 inch pilot diameter
- Replaces original equipment 3 universal joint double cardan cv driveshaft
- Larger 3 inch DOM tube is stronger than the original equipment 2.75 inch welded seam tube.
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Recommended for use with less than 500 horsepower.
- High speed High RPM balanced and tested for smooth overall performance
Not Available
Availability: THIS ITEM CAN BE BACK ORDERED - PLEASE EMAIL VEHICLE DETAILS, DIMENSIONS AND PHONE NUMBER AND WE WILL CALL YOU TO WRITE UP THE ORDER
Pricing:
$805.95
Description
Denny's STR-330CV
Custom Built 3 inch Double Cardan CV Driveshaft
- Comes complete with slip yoke, universal joints and double cardan CV
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Fits rear end pinion flange with 4.25 inch bolt circle and 3.125 inch pilot diameter
- Replaces original equipment 3 universal joint double cardan cv driveshaft
- Transmission slip yoke in 27 or 32 splines to fit your application
- Built to fit late 60's to mid 70's Buick, Oldsmobile, Pontiac and Chevrolet cars with flat mounting flange on rear end pinion
- Recommended for use with less than 500 horsepower.
- Larger than stock 3 inch Diameter Tube - DOM Steel
- "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
- All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
- All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation. This is priceless when it comes to customer satisfaction!
- All Denny's Driveshafts come Fully Assembled and ready to bolt in!
You also get...
- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
- Please see our Free Lifetime Labor page for details. CLICK HERE
-
- Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
HOW TO MEASURE
>>>>>> Use both Diagram "K" and Diagram "L"
- CLICK HERE to see Diagram "K" now
- On Diagram "K" we need the answers to NUMBERS 53, 53A, 53B, 54 and 55. You can skip number 52.
- If you have a T400 transmission with a 32 spline output shaft we need to know if it has a threaded hole in the end of the output shaft
- IMPORTANT: On Diagram "K" please see number 54.
- Number 54 must be 3.125 inches for this driveshaft to fit your car
- CLICK HERE to see Diagram "L" now
- On DIAGRAM "L" we need the answer to NUMBER 59 only on this page to build your order
- IMPORTANT: On Diagram "L" please see number 59.
- Number 59 must be 4.25 inches for this driveshaft to fit your car
OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!
Details
- STR-330CV
- STR-330CV
- Dennys
- Temporarily Not Available
- THIS ITEM CAN BE BACK ORDERED - PLEASE EMAIL VEHICLE DETAILS, DIMENSIONS AND PHONE NUMBER AND WE WILL CALL YOU TO WRITE UP THE ORDER
- New
