Dana Spicer 5-460X Greaseable Combination U-joint Outside Snap Rings 1310 series 3.219 x 1.062 to Outside Snap Rings 1350 series 3.625 x 1.188
5-460X

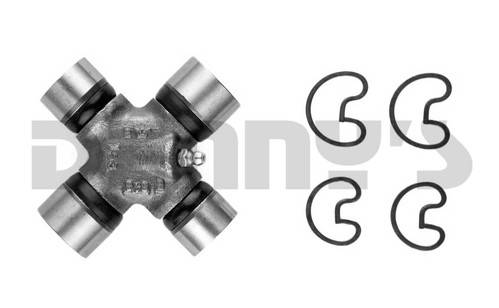

Dana Spicer 5-460X
1310/1350 Combination Universal Joint
- Greaseable universal joint
- Outside Snap Rings
- 1310 to 1350 combination u-joint
- Use this u-joint to connect mismatched driveshafts and driveline components
- For example to connect a 1310 series slip yoke to a 1350 series driveshaft
- For example to connect a 1310 series driveshaft to a 1350 series pinion yoke
Dimensions
- A = 3.219 inches (1310)
- B = 3.625 inches (1350)
- C = 1.062 inches
- D = 1.188 inches
Limited Supply: only 5 remaining
Pricing:
$35.84
Description
Dana Spicer 5-460X
1310/1350 Combination Universal Joint
- Greaseable universal joint
- Outside Snap Rings
- 1310 to 1350 combination u-joint
- Use this u-joint to connect mismatched driveshafts and driveline components
- For example to connect a 1310 series slip yoke to a 1350 series driveshaft
- For example to connect a 1310 series driveshaft to a 1350 series pinion yoke
Dimensions
- A = 3.219 inches (1310)
- B = 3.625 inches (1350)
- C = 1.062 inches
- D = 1.188 inches
Details
- 5-460X
- 5-460X
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 1.6 lbs.
- W6.0000” x H5.0000” x L2.0000”
