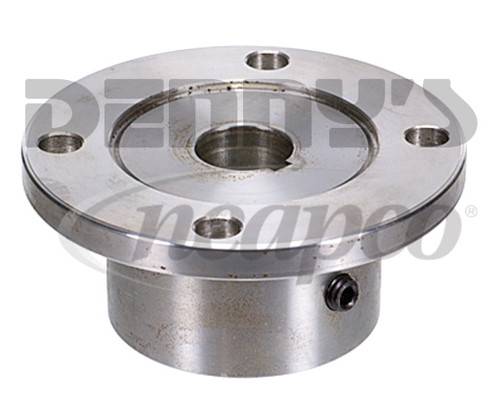

Neapco N3-1-1013-1 Companion Flange 1350/1410 Series fits 1 inch Round Shaft with .250 KEY
Part #:
N3-1-1013-1
Your Cost $54.50

NEAPCO  N3-1-1013-1

COMPANION FLANGE

  • 1350/1410  Series
  • Same as Dana Spicer 3-1-1013-1

Neapco
Neapco N3-1-1013-1 Companion Flange 1350/1410 Series fits 1 inch Round Shaft with .250 KEY
Neapco N3-1-1013-1 Companion Flange 1350/1410 Series fits 1 inch Round Shaft with .250 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SPECIAL ORDER - 7 to 10 Days lead time
YOUR COST:  $54.50

NEAPCO  N3-1-1013-1

COMPANION FLANGE

  • 1350/1410 Series
  • Same as Dana Spicer 3-1-1013-1



Companion Flanges - Circular w/ Round Hole Model/Part #:  N3-1-1013-1
D.) Bore Dia. 1.000
K) Keyway Width (nom.) .250
C) Pilot Dia. M=male F=female 2.750-F
Figure 1
Bolt Hole Dia. (D-drilled T=tapped) .438 D
Bolt Holes 4
E) Hub Dia. 2.875
F) Flg. Face to Hub End 2.000
A) Flange Diameter 4.562
B) Bolt Circle Diameter 3.750

Denny's Driveshafts Companion Flange Dimensions

Neapco N3-1-1013-1 Companion Flange 1350/1410 Series fits 1 inch Round Shaft with .250 KEY

Neapco N3-1-1013-1 Companion Flange 1350/1410 Series fits 1 inch Round Shaft with .250 KEY
