Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits FORD HIGH PINION Dana 60 FRONT differential case 706040X, 706041X, 2005502

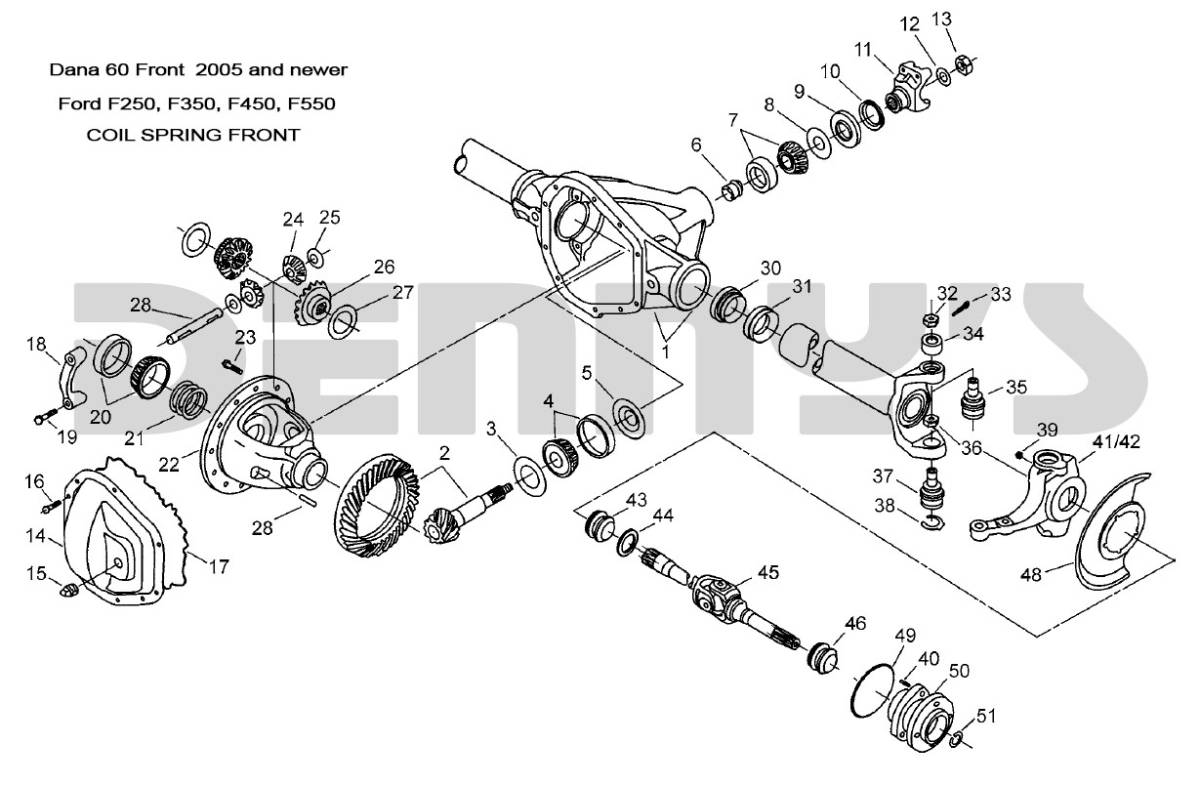

Diagram Number: 24-28
706702X
Dana Spicer 706702X
DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline
- Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
- DANA 60 OPEN differential for FORD HIGH PINION FRONT
- OPEN DIFF - NOT positraction
- Fits 1.50 - 35 spline axles
- Fits all ratio open diff cases
- 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
- NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different

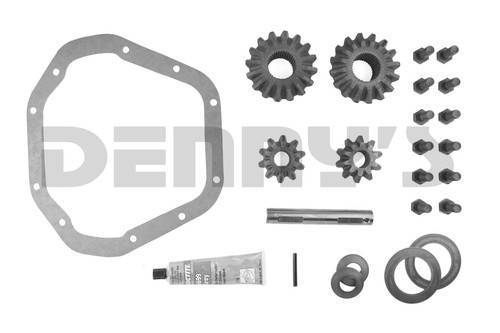

INCLUDES:
| QTY | Part | Description |
|---|---|---|
| 2 | 35625 | SIDE SPIDER GEAR 1.50 - 35 SPLINE |
| 2 | 34367 | SMALL SPIDER GEAR |
| 2 | 34730 | CUPPED THRUST WASHER |
| 2 | 34729 | SIDE GEAR FLAT THRUST WASHER |
| 1 | 30263 | DIFF CROSS SHAFT |
| 1 | 34687 | GASKET |
| 1 | 38615 | 2.8 OZ TUBE SILICONE |
| 1 | 44810 | ROLL PIN |
| 12 | 701056X | RING GEAR BOLTS |
Not Available
Pricing:
$295.95
Description
Dana Spicer 706702X
DIFFERENTIAL SPIDER GEAR KIT 1.50 - 35 spline
- Fits FORD F250, F350, F450, F550 with Dana 60 High Pinion Reverse rotation Front Axle
- DANA 60 OPEN differential for FORD HIGH PINION FRONT
- OPEN DIFF - NOT positraction
- Fits 1.50 - 35 spline axles
- Fits all ratio open diff cases
- 706702X spider gear kit and 706040X Case are in Dana Spicer loaded case 2005502
- NOTE: These spider gears (706702X) have the older style original shape to the gear as compared to the newer style formed gears (708236) that look different
INCLUDES:
| QTY | Part | Description |
|---|---|---|
| 2 | 35625 | SIDE SPIDER GEAR 1.50 - 35 SPLINE |
| 2 | 34367 | SMALL SPIDER GEAR |
| 2 | 34730 | CUPPED THRUST WASHER |
| 2 | 34729 | SIDE GEAR FLAT THRUST WASHER |
| 1 | 30263 | DIFF CROSS SHAFT |
| 1 | 34687 | GASKET |
| 1 | 38615 | 2.8 OZ TUBE SILICONE |
| 1 | 44810 | ROLL PIN |
| 12 | 701056X | RING GEAR BOLTS |
Details
- 706702X
- 706702X
- Spicer
- Temporarily Not Available
- New
Categories
- FORD 4X4 Front - DANA SUPER 60 FRONT - FORD 2005 to 2016 - DIFF PARTS
- AXLES and FRONT DIFF Parts 4X4 - FORD 4X4 Front - DANA SUPER 60 FRONT - FORD 2005 to 2016
- DANA SUPER 60 FRONT - FORD 2005 to 2016 - DIFF PARTS - DIFF CASE and SPIDERS
- DIFF PARTS - DIFF CASE and SPIDERS - DANA 60 OPEN DIFF - SPIDER GEAR KITS
Shipping Information
- Item Requires Shipping
- 9.5 lbs.
- W12.0000” x H3.0000” x L12.0000”
