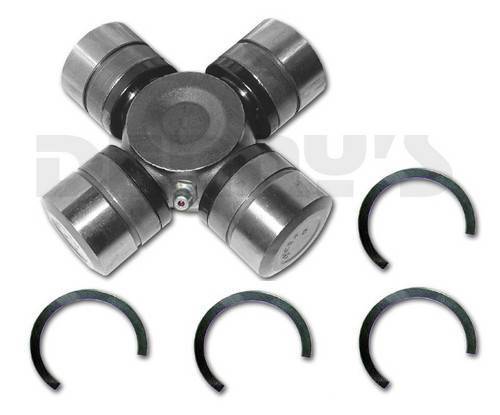

DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits 1999 to 2003 FORD F-450, F-550 Super Duty all with DANA Super 60 Front

DANA SPICER SPL55-4X

Dana 60 Front Axle U-joint

• GREASEABLE front axle universal joint ...grease fitting in body
• Fits FORD F-450, F-550 Super Duty with Dana 60 Front Axles

  • 1999, 2000, 2001, 2002, 2003

DIMENSIONS

• C & D = 1.375 inch diameter with inside "C" Clips to lock the cap in place.
• A & B = 3 inches is the span between the yoke inner surfaces where the "C" Clips lock in.
• 1480WJ series
