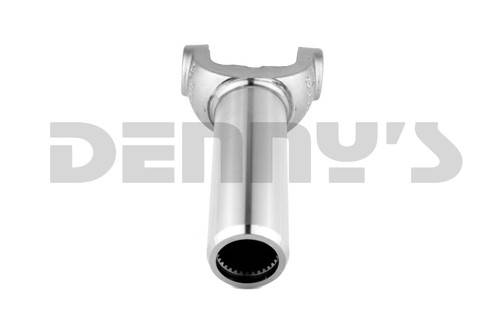

DANA SPICER 3-3-01683X Nickel Plated Slip Yoke 31 splines 2.20 barrel diameter 1410 Series
3-3-01683X
DANA SPICER 3-3-01683X
1410 Series Slip Yoke
- Spline Outside Diameter = 1.616
- Number of Splines = 30/31
- Series = 1410
- Lock up style = OUTSIDE
- Universal Joint Width = 4.187
- D - Universal Joint Bore = 1.187
- J - Center of u-joint bore to End of Slip yoke = 8.340
- R - Barrel Outside Diameter = 2.200
- Counterbore Diameter = 1.655
- Counterbore Depth = 0.270
- Special Notes: Nickel Plated
Limited Supply: only 2 remaining
Pricing:
$135.52
Description
DANA SPICER 3-3-01683X
1410 Series Slip Yoke
- Spline Outside Diameter = 1.616
- Number of Splines = 30/31
- Series = 1410
- Lock up style = OUTSIDE
- Universal Joint Width = 4.187
- D - Universal Joint Bore = 1.187
- J - Center of u-joint bore to End of Slip yoke = 8.340
- R - Barrel Outside Diameter = 2.200
- Counterbore Diameter = 1.655
- Counterbore Depth = 0.270
- Special Notes: Nickel Plated
Details
- 3-3-01683X
- 3-3-01683X
- Spicer
- Available
- New
Categories
- Driveline Parts - Slip Yokes - SLIP YOKES - For 4X4 Transfer Case
- Slip Yokes - SLIP YOKES - For 4X4 Transfer Case - NP261XHD NP263XHD with 31 SPLINE rear output 2.200 barrel OD
- SLIP YOKES - For 4X4 Transfer Case - NP261XHD NP263XHD with 31 SPLINE rear output 2.200 barrel OD - 1410 SERIES - OUTSIDE SNAP RINGS
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W5.0000” x H3.0000” x L10.0000”
