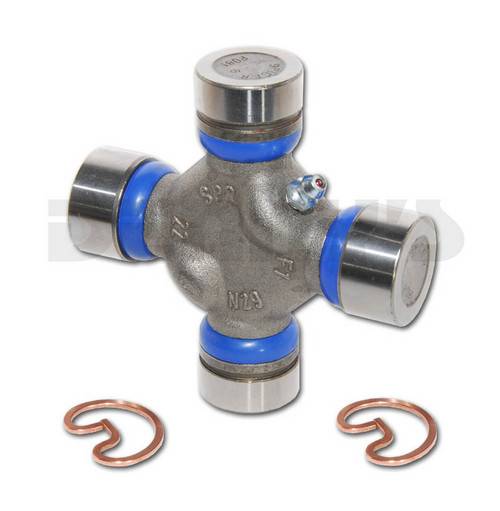

Dana Spicer 5-1204X Greaseable u-joint 1330 Series fits 67 to 73 Ford Mustang outside snap ring style 3.625 inch cap to cap 1.062 and 1.125 inch cap diameter - Use at rear end

DANA SPICER 5-1204X

UNIVERSAL JOINT - Use at rear end of driveshaft

• Fits Ford Mustang

  • 1967, 1968, 1969, 1970, 1971, 1972, 1973
• Grease Fitting in body of u-joint
• 1330 series

DIMENSIONS

• A = 3.625 inches (3 5/8 inches )
• B = 3.625 inches (3 5/8 inches )
• C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
• D = 1.125 inch ( 1 1/8 inch ) diameter to fit pinion yoke
• Outside snap rings


Please measure the front diff pinion yoke and transfer case yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps.  Both choices are possible in 1980 to 1989 F250, F350 trucks.
