Ford Driveshafts and Driveline Parts > Universal Joints - Cars and Trucks > 1980 - 1989 F250, F350 Front Driveshaft 2 Joint > NON GREASEABLE

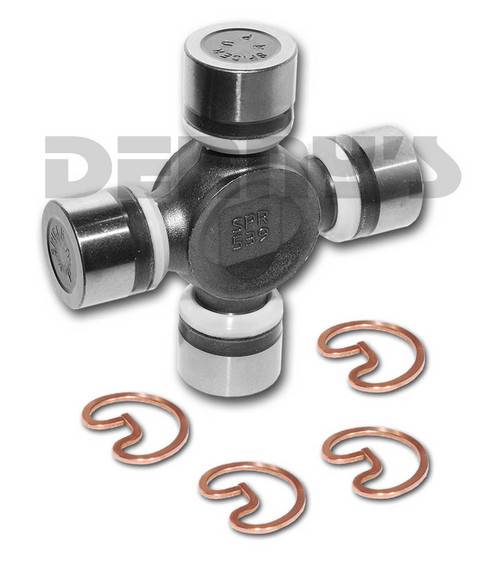

Dana Spicer 5-1330X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 Bearing Caps

Part Number:
5-1330X

UPC:

023913121174

Your Cost $20.77

STATUS: IN STOCK

DANA SPICER 5-1330X

UNIVERSAL JOINT

Fits FORD F250, F350 FRONT 2 joint Driveshaft
- 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989
- Use this u-joint when 1.062 inch bearing caps are required to fit pinion yoke and/or transfer case yoke
1330 Series
NON GREASEABLE U-Joint

DIMENSIONS

A = 3.625 inches (3 5/8 inches )
B = 3.625 inches (3 5/8 inches )
C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
D = 1.062 inch ( 1 1/16 inch ) diameter to fit pinion or transfer case yoke
Outside snap rings

Please measure the front diff pinion yoke and transfer case yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps. Both choices are possible in 1980 to 1989 F250, F350 trucks.

Spicer

Dana Spicer 5-1330X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 Bearing Caps

Dana Spicer 5-1330X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 Bearing Caps

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $20.77

DANA SPICER 5-1330X

UNIVERSAL JOINT

Fits FORD F250, F350 FRONT 2 joint Driveshaft
- 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989
- Use this u-joint when 1.062 inch bearing caps are required to fit pinion yoke and/or transfer case yoke
1330 Series
NON GREASEABLE U-Joint

DIMENSIONS

A = 3.625 inches (3 5/8 inches )
B = 3.625 inches (3 5/8 inches )
C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
D = 1.062 inch ( 1 1/16 inch ) diameter to fit pinion or transfer case yoke
Outside snap rings

Please measure the front diff pinion yoke and transfer case yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps. Both choices are possible in 1980 to 1989 F250, F350 trucks.
