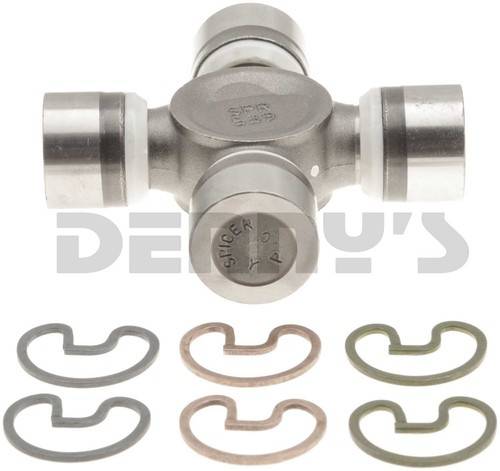

Dana Spicer 5-7438X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 and 1.125 Bearing Caps
Part #:
5-7438X
Your Cost $18.35

DANA SPICER 5-7438X

UNIVERSAL JOINT

  • Fits FORD F250, F350 FRONT 2 joint Driveshaft
    • 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989
    • Use this u-joint when 1.125 inch bearing caps are required to fit pinion yoke and/or transfer case yoke
  • 1330 Series
  • NON GREASEABLE U-Joint

DIMENSIONS

  • A = 3.625 inches (3 5/8 inches )
  • B = 3.625 inches (3 5/8 inches )
  • C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
  • D = 1.125 inch ( 1 1/8 inch ) diameter to fit pinion yoke or transfer case yoke
  • Outside snap rings

Please measure the front diff pinion yoke and transfer case yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps.  Both choices are possible in 1980 to 1989 F250, F350 trucks.

Spicer
Dana Spicer 5-7438X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 and 1.125 Bearing Caps
Dana Spicer 5-7438X NON Greaseable u-joint 1330 Series fits 1980 to 1989 Ford F250, F350 FRONT 2 joint DRIVESHAFT 1.062 and 1.125 Bearing Caps
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $18.35

DANA SPICER 5-7438X

UNIVERSAL JOINT

  • Fits FORD F250, F350 FRONT 2 joint Driveshaft
    • 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989
    • Use this u-joint when 1.125 inch bearing caps are required to fit pinion yoke and/or transfer case yoke
  • 1330 Series
  • NON GREASEABLE U-Joint

DIMENSIONS

  • A = 3.625 inches (3 5/8 inches )
  • B = 3.625 inches (3 5/8 inches )
  • C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
  • D = 1.125 inch ( 1 1/8 inch ) diameter to fit pinion yoke or transfer case yoke
  • Outside snap rings

Please measure the front diff pinion yoke and transfer case yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps.  Both choices are possible in 1980 to 1989 F250, F350 trucks.
