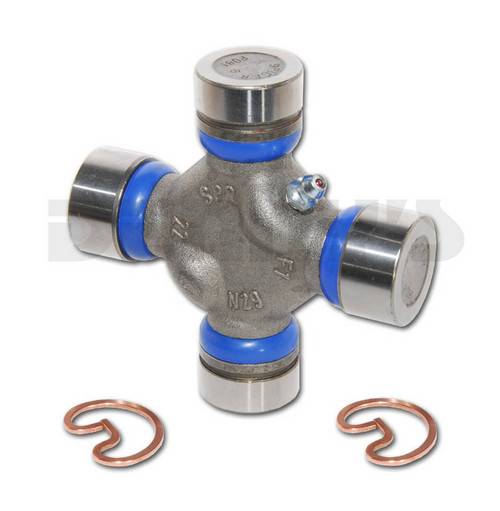

Dana Spicer 5-1204X Greaseable u-joint 1330 Series fits 1979 to 1999 Ford F350 FRONT CV DRIVESHAFT at Front DIFF 1.062 and 1.125 Bearing Caps

DANA SPICER 5-1204X

UNIVERSAL JOINT

• Fits FORD F350 FRONT Double Cardan CV Driveshaft at FRONT DIFF end

  • 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999
  • Fits at front diff end of driveshaft when 1.125 inch bearing caps are required to fit pinion yoke.

• 1330 Series
• GREASEABLE U-Joint

DIMENSIONS

• A = 3.625 inches (3 5/8 inches )
• B = 3.625 inches (3 5/8 inches )
• C = 1.062 inch ( 1 1/16 inch ) diameter to fit slip yoke
• D = 1.125 inch ( 1 1/8 inch ) diameter to fit pinion yoke
• Outside snap rings


Please measure the front diff pinion yoke carefully to see if the yoke saddles are machined for 1.062 inch u-joint bearing caps or 1.125 inch bearing caps.  Both choices are possible in 1979 to 1999 F350 trucks.
