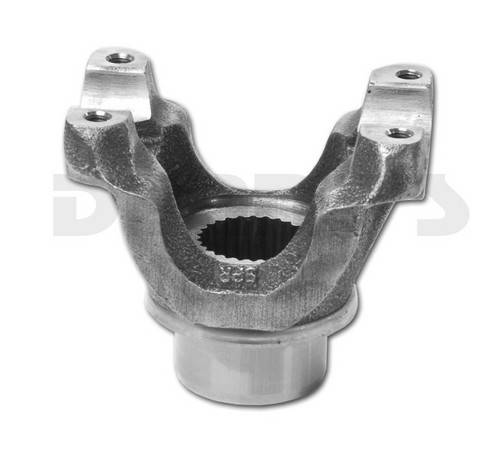

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler
Part Number:
2-4-8091-1X


UPC:
023913230050
Diagram Number:
11
Your Cost $54.90 Sale Price $45.98
You Save $8.92
STATUS:  IN STOCK

DANA SPICER 2-4-8091-1X

PINION YOKE - Strap and Bolt Style

  • Fits  JEEP TJ Wrangler DANA 44 REAR
    • 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
  • Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
  • 26 splines
  • Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.500
  • R = 1.552
  • S = 3.000

IMPORTANT NOTE:

  • The Dana Spicer 2-4-8091-1X replaces old obsolete Dana Spicer part numbers 2-4-8141-1 and 2-4-7791-1.
  • The 2-4-8091-1X dimension "S" in the chart is .250 inches (1/4 inch) shorter than the original equipment pinion yokes that are no longer in production.  The driveshaft slip will easily handle this without concern.

Spicer
DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler
DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline fits Dana 44 REAR 1997 to 2006 Jeep TJ Wrangler
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $54.90 Sale Price $45.98
You Save $8.92

DANA SPICER 2-4-8091-1X

PINION YOKE - Strap and Bolt Style

  • Fits  JEEP TJ Wrangler DANA 44 REAR
    • 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
  • Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
  • 26 splines
  • Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.500
  • R = 1.552
  • S = 3.000

IMPORTANT NOTE:

  • The Dana Spicer 2-4-8091-1X replaces old obsolete Dana Spicer part numbers 2-4-8141-1 and 2-4-7791-1.
  • The 2-4-8091-1X dimension "S" in the chart is .250 inches (1/4 inch) shorter than the original equipment pinion yokes that are no longer in production.  The driveshaft slip will easily handle this without concern.
