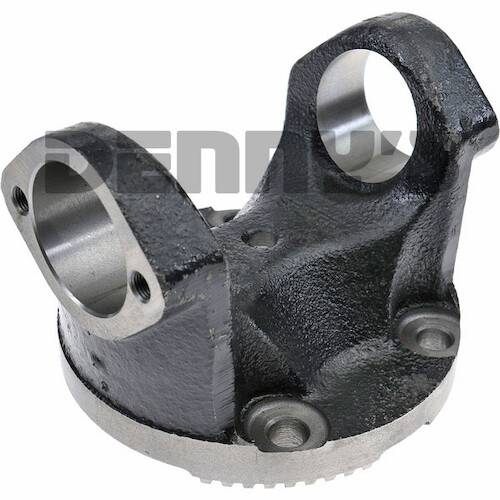

DANA SPICER 6-2-15 Flange Yoke 1710 Series
6-2-15
DANA SPICER 6-2-15
1710 Series Flange Yoke
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$302.95
Description
DANA SPICER 6-2-15
1710 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- Bolt Circle Diameter = 5.118 inches
- Bolt Hole Diameter = 0.472 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter
- Center Pilot
- Series = 1710
- U-Joint Width = 6.094 inches
- D - U-Joint Bearing cap diameter = 1.938 inches
- G - Center of u-joint bore to Face of flange = 3.189 inches
- Special Notes: Bearing Plate Style ..... 150 mm flange w/serrated flange face
Details
- 6-2-15
- 6-2-15
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 11.0 lbs.
- W8.0000” x H8.0000” x L4.0000”
