DANA SPICER 5-2-709 Flange Yoke 1610 Series Bearing Plate Style
|
Part Number: 5-2-709
UPC: 023913220334
|
Your Cost
$321.29 Sale Price $270.66You Save $50.63
Sorry, sold out
STATUS:
FACTORY BACK ORDER at this time
|
|
DANA SPICER 5-2-709
1610 Series Flange Yoke
|

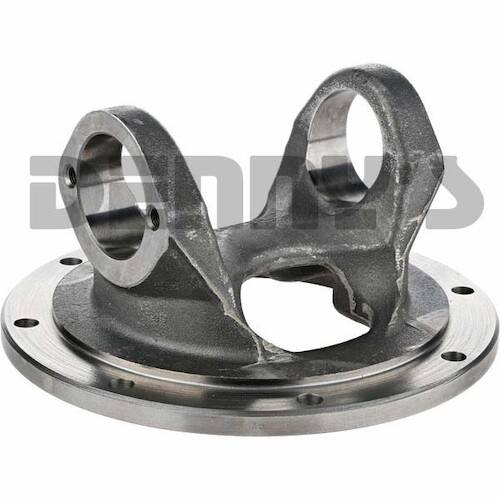

GENERIC PHOTO
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY BACK ORDER at this time
YOUR COST:
$321.29 Sale Price $270.66You Save $50.63
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 5-2-709
1610 Series Flange Yoke
- A - Flange or Swing Diameter = 8 inches
- B - Bolt Circle Diameter = 7.250 inches
- Bolt Hole Diameter = 0.375 inches
- Bolt Holes = 8
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter = 6.435 inches
- Series = 1610
- U-Joint Width = 5.312 inches
- D - U-Joint Bearing cap diameter = 1.875 inches
- G - Center of u-joint bore to Face of flange = 2.750 inches
- Special Notes: Flange has pilot for brake, Bearing Plate Style
|
|
