DANA SPICER 3-2-1839 Flange Yoke 1410 Series
Part Number:
3-2-1839


UPC:
023913229900
Your Cost $46.42 Sale Price $41.95
You Save $4.47
STATUS:  IN STOCK

DANA SPICER 3-2-1839

1410 Series Flange Yoke




Spicer

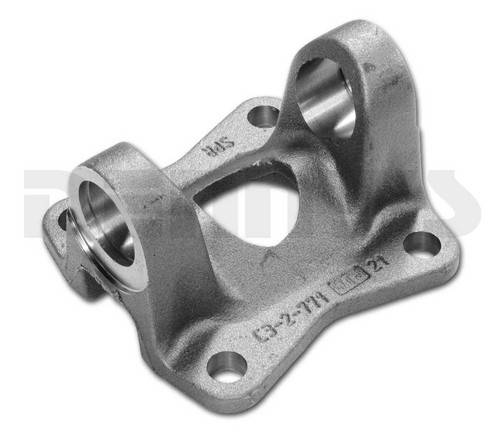

DANA SPICER 3-2-1839 Flange Yoke 1410 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $46.42 Sale Price $41.95
You Save $4.47

DANA SPICER 3-2-1839

1410 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.750 inches
  • B - Bolt Circle Diameter = 4.750 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.953 inches
    • Center Pilot = FEMALE
  • Series = 1410
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 2 inches
  • X - inches
  • Y - inches
  • Special Notes: Bolt holes are equally spaced. Part has hole thru center.





Denny's Driveshafts Flange Yoke Dimension Diagram
