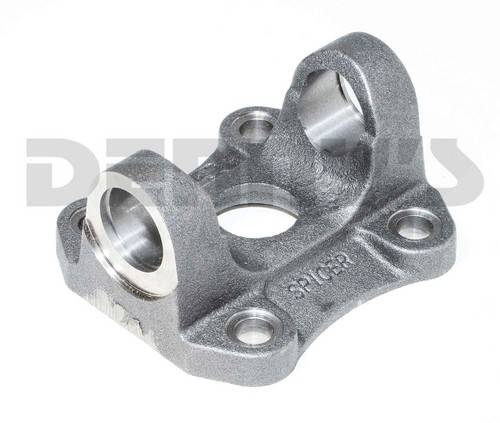

DANA SPICER 3-2-1819 Flange Yoke 1410 Series
Part Number:
3-2-1819


UPC:
023913233068
Your Cost $79.72
STATUS:  IN STOCK

DANA SPICER 3-2-1819

1410 Series Flange Yoke




Spicer
DANA SPICER 3-2-1819 Flange Yoke 1410 Series
DANA SPICER 3-2-1819 Flange Yoke 1410 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $79.72

DANA SPICER 3-2-1819

1410 Series Flange Yoke

  • A - Flange or Swing Diameter = 5.240 inches
  • B - Bolt Circle Diameter = 4.250 inches
    • Bolt Hole Diameter = 0.500 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1410
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 4.187 inches
    • D - U-Joint Bearing cap diameter = 1.187 inches
  • G - Center of u-joint bore to Face of flange = 1.620 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: PART HAS THRU HOLE CENTER





Denny's Driveshafts Flange Yoke Dimension Diagram
