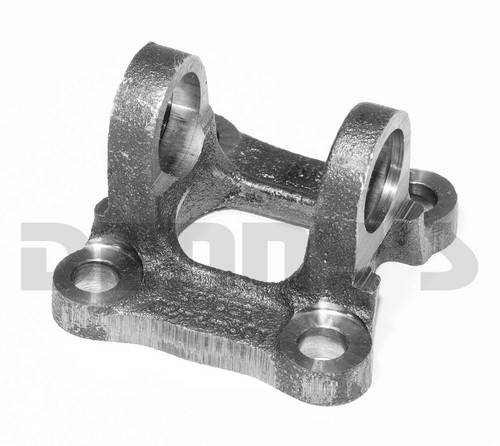

DANA SPICER 2-2-1049 Flange Yoke 1210 Series
Part #:
2-2-1049
Your Cost $28.95

DANA SPICER 2-2-1049

1210 Series Flange Yoke




Spicer
DANA SPICER 2-2-1049 Flange Yoke 1210 Series
DANA SPICER 2-2-1049 Flange Yoke 1210 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $28.95

DANA SPICER 2-2-1049

1210Series Flange Yoke

  • A - Flange or Swing Diameter = 4.360 inches
  • B - Bolt Circle Diameter = 3.500 inches
    • Bolt Hole Diameter = 0.484 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2 inches
    • Center Pilot = FEMALE
  • Series = 1210
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 2.438 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.625 inches
  • X - 2.500 inches
  • Y - 2.500 inches
  • Special Notes: Bolts holes are equally spaced





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-1049 Flange Yoke 1210 Series

DANA SPICER 2-2-1049 Flange Yoke 1210 Series

Click to Load this Photo
Click Here to Enlarge
Click to Load this Photo
Click Here to Enlarge
