DANA SPICER 2-2-01474 Flange Yoke 1330 Series
Part #:
2-2-01474
Your Cost $35.95

DANA SPICER 2-2-01474

1330 Series Flange Yoke




Spicer

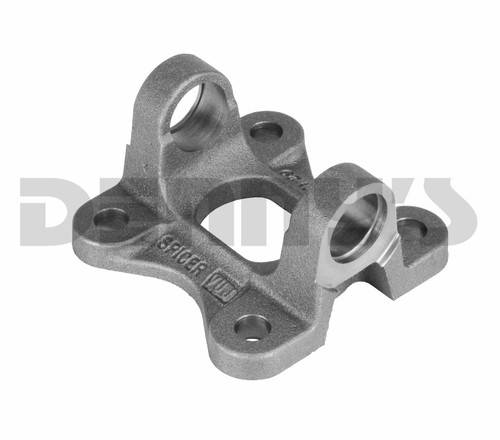

DANA SPICER 2-2-01474 Flange Yoke 1330 Series
DANA SPICER 2-2-01474 Flange Yoke 1330 Series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $35.95

DANA SPICER 2-2-01474

1330Series Flange Yoke

  • A - Flange or Swing Diameter = 5.423 inches
  • B - Bolt Circle Diameter = 4.271 inches
    • Bolt Hole Diameter = 0.487 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.436 inches
    • Center Pilot = FEMALE
  • Series = 1330
    • Outside Snap Ring Style
    • U-Joint Width between snap rings = 3.625 inches
    • D - U-Joint Bearing cap diameter = 1.062 inches
  • G - Center of u-joint bore to Face of flange = 1.618 inches
  • X - 3 inches
  • Y - 3 inches
  • Special Notes: Bolts holes are equally spaced





Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-01474 Flange Yoke 1330 Series

DANA SPICER 2-2-01474 Flange Yoke 1330 Series
