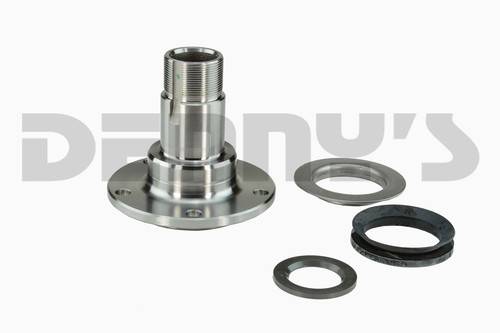

Dana Spicer 707166X SPINDLE fits 1990 to 1992-1/2 Ford Bronco II, Ranger, Explorer

DANA SPICER 707166X

• SPINDLE
  • Replaces old number Dana Spicer 43201
  • Fits Ford Bronco II, Ranger, Explorer with Dana 35 IFS Front with axle universal joints

    • 1990, 1991, 1992, 1992-1/2
  • Does not fit Dana 35 IFS with CV Axles

INCLUDES

• 706527X bearing and seal kit
• 36364 Seal retainer

DIMENSIONS

• A = 1.780 in. OD for Outer Wheel Bearing
• B = 1.780 in. OD for Inner Wheel Bearing
• C = 2-1/2 in. OD for Seal
• D = 3-3/8 in.
• E = 3/8 in.
• F = 5/16 in.
• G = 3-13/16 in.
• H = 4-1/2 in.
• K = 4-11/16 in.
• Bolt Holes = 5
• Bolt Hole Diameter = .420 in.
• Keyway = .312 in
