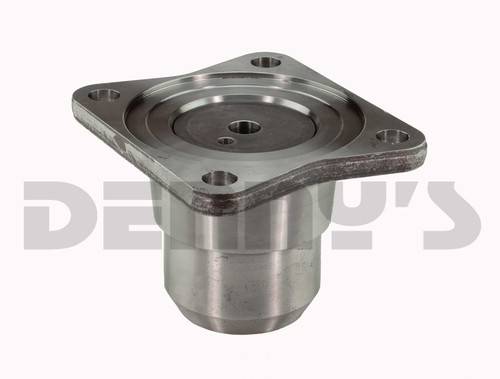

DANA SPICER 4-1-4501X Companion Flange 1480/1550 Series 1.790 x 34 spline with 2.562 Hub
4-1-4501X
DANA SPICER 4-1-4501X
- COMPANION FLANGE
- 1480/1550 Series
- 1.790 - 34 SPLINE
- Includes plug 231059
Shipping: >>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
Pricing:
$312.95
Description
DANA SPICER 4-1-4501X
- COMPANION FLANGE
- 1480/1550 Series
- 1.790 - 34 SPLINE
- Includes plug 231059
| Companion Flanges - Splined Hole | Model/Part #: 4-1-4501X |
| D.) Spline OD | 1.790 |
| No. of Splines | 34 I |
| C) Pilot Dia. M=male F=female | 3.750-F |
| B) Bolt Circle Dia. | 4.750 |
| Bolt Hole Dia. (D-drilled T=tapped) | .500-D |
| No. of Holes | 4 |
| Drum Pilot Dia. | .000 |
| E) Hub Dia. | 2.562 |
| F) Len thru Hole | 2.750 |
| G) Flg. Face to Hub End | 3.344 |
| Figure | 1 |
| Slinger Part No. | |
| Series | 1480/1550 |
Details
- 4-1-4501X
- 4-1-4501X
- Spicer
- Available
- New
Shipping Information
- Item Requires Shipping
- 5.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
