Driveshaft and Driveline Parts > PINION YOKES - Front and Rear End > CHEVROLET CORVETTE > CORVETTE 1984 to 1996 > DANA 36 ICA 26 spline pinion 1310 Series

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style

Part Number:
2-4-8091-1X

UPC:

023913230050

Your Cost $49.95

STATUS: IN STOCK

DANA SPICER 2-4-8091-1X

Dana 36 1310 series Pinion Yoke 26 spline. Strap and bolt style to match original equipment.

Spicer

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style

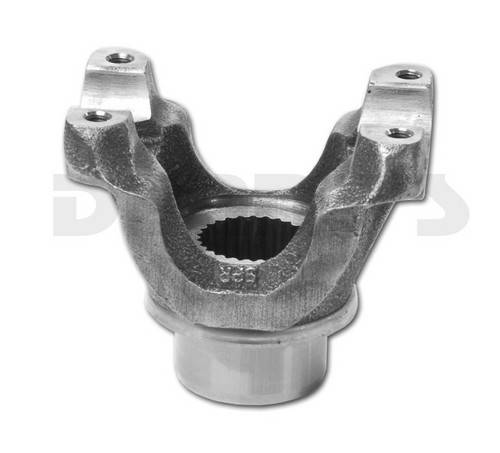

Dana Spicer 2-4-8091-1X Strap and Bolt style 1310 pinion yoke for Corvette Dana 36 rear

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $49.95

DANA SPICER 2-4-8091-1X

Dana 36 1310 series Pinion Yoke 26 spline. Strap and bolt style to match original equipment.

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

Dana Spicer 2-4-8091-1X Corvette Pinion Yoke fits ALL with DANA 36 from 1984 to 1996 1310 series with 26 splines OEM Strap & Bolt Style

Dana Spicer 2-4-8091-1X Strap and Bolt style 1310 pinion yoke for Corvette Dana 36 rear

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.75	Dana Spicer 2-70-18X Strap & Bolt Set for 1980-1996 Corvette rear diff pinion yoke with Dana 36 or Dana 44 rear end Part#: 2-70-18X $7.92
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $20.25	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $17.15
