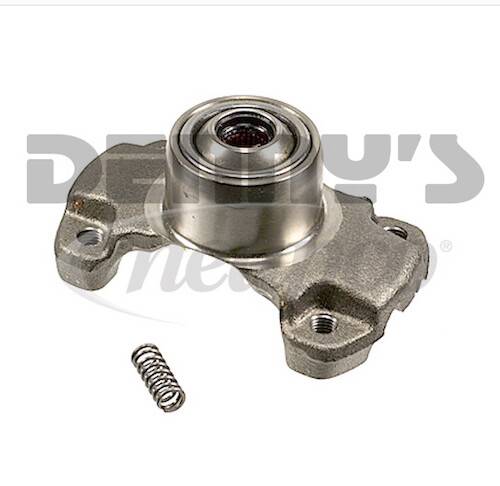

NEAPCO N3-83-019X Double Cardan 1350 CV Centering Yoke Fits 1997 to 2002 Ford Expedition and 1998 Lincoln Navigator OEM Non Greaseable

N3-83-019X

NEAPCO N3-83-019X

Rear Driveshaft 1350 Series Centering Yoke

OEM Replacement Non Greaseable

  • Fits Ford Expedition Rear 1350 Series Double Cardan CV Driveshaft with 9.75 inch rear differential
    • 1997, 1998, 1999, 2000, 2001, 2002
  • Fits Lincoln Navigator Rear 1350 Series Double Cardan CV Driveshaft
    • 1998
Limited Supply: only 1 remaining
Pricing: $117.66

Customize Your Item

- -
 * required
Qty:
FREE SHIPPING ON PARTS ORDERS OVER $99

Description

NEAPCO N3-83-019X

Rear Driveshaft 1350 Series Centering Yoke

OEM Replacement Non Greaseable

  • Fits Ford Expedition Rear 1350 Series Double Cardan CV Driveshaft with 9.75 inch rear differential
    • 1997, 1998, 1999, 2000, 2001, 2002
  • Fits Lincoln Navigator Rear 1350 Series Double Cardan CV Driveshaft
    • 1998
  • Fits Dana Spicer 3-3-5861X Slip yoke to build new 1350 CV double cardan driveshaft
    • See bottom of this page for more details

DIMENSIONS
  • Fits 1350 U-Joint
    • (3.625 inches) 3-5/8 inches between locating tabs on centering yoke
    • (1.187 inches) 1-3/16 inch dimension of saddle to hold U-Joint Bearing cap
  • Bolt Holes are 5/16 - 24 fine thread
    • Bolt hole spacing 1.625 inches across u-joint cap
    • Bolt hole spacing 2.750 inches side to side
  • Fits .500 inch stud diameter
INCLUDES
  • New spring Included
When out of stock Dana Spicer 212019X centering yoke can be used


  • image/jpegIt is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

    Please see the bottom of this page for new rubber boot





PLEASE NOTE:  This part is not interchangeable with the geaseable centering yoke version.   You cannot put this NON Greaseable centering yoke onto a shaft that was originally built for the greaseable centering yoke.   The socket diameter is larger and will restrict the movement of the Double Cardan CV Joint.
