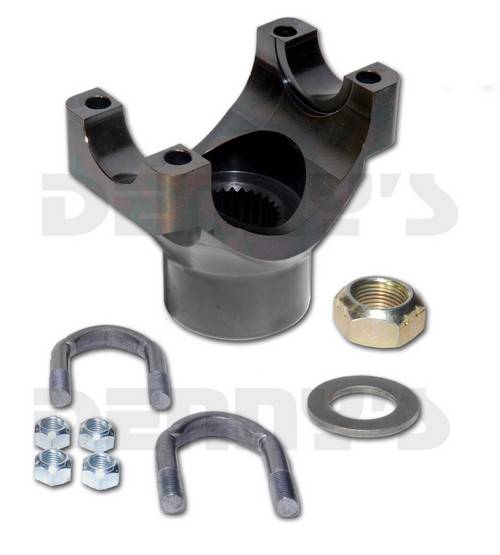

9237719 Chromoly Pinion Yoke 7290 series fits 8.75 inch Dodge with 29 spline pinion 8 3/4 inch

9237719

Chromoly Pinion Yoke 7290 Series

• Fits DODGE 8.75 inch
  • Fits ALL Dodge, Plymouth and Chrysler 8 3/4 inch rear ends with 29 spline pinion gear
  • DOES NOT FIT - Dana 60, 61, 71
• Fits 7290 Series universal joint DODGE "LARGE" U-joint
  • 24 = 2.625 between flats where "C" clip locks u-joint in place
  • 22 = 1.125 Bearing Cap Diameter
• 29 spline
• Forged Chromoly for superior strength

• DOES NOT Come with a dust shield and does not have a provision to install one

INCLUDES

• Pinion nut and washer
• 7290 series U-bolt set.


DIMENSIONS

• 21A = 3.375 inch
• 25 = 1.875 inch
• Length through spline hole = 1.500 inch

  • full spline - no counterbore
• Washer OD = 1.500 inch
• Washer ID = .900 inch
• Washer thickness = .120 inch
• Socket wrench size for nut =  1-5/16 inch.
