200120-502 Spline and Slip yoke set 1310 series fits 2 inch 0.120 wall steel tube allows maximum 4-3/8 inches of slip travel

200120-502

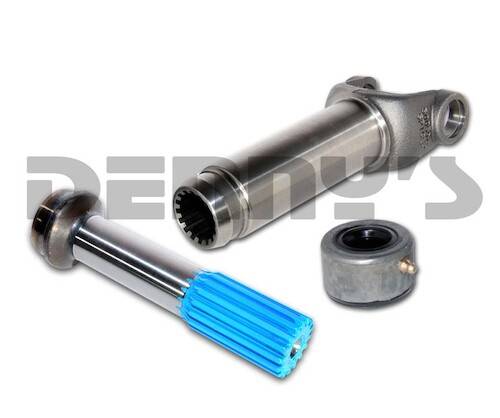

Spicer Spline and Slip yoke set

• Fits 2.0 inch steel tube OD with 0.120 wall thickness
• Fits 1310 series universal joint (see choices at bottom of page)
  • 3.219 wide cap to cap
  • 1.062 cap diameter
  • outside snap rings
• Maximum of 4-3/8 inches slip travel
• Spicer Slip yoke 1.338 x 18/20 (has 18 splines and 2 wide spaces/keys for a total of 20 splines) has press on seal with grease fitting
• Spicer Spline is glidecoated (blue coating) 3.625 inches for wear resistance if properly lubricated
  • Spline butt diameter to press fit into tube - 1.770 inches

The following dimensions are taken with the supplied seal installed.

• **CL to weld Collapsed Dimension - 10.812 inches
• **CL to weld Dimension at MID travel -  12.937 inches
• CL to weld Fully Extended Dimension -  15.125 inches

**Caution --- Using a rubber boot in place of the seal will lengthen the collapsed and mid point dimensions. You must factor this into your build dimensions before cutting, welding and building the driveshaft
