NEAPCO N3R-28-341 Saginaw CV Ball STUD YOKE Saginaw 3R Series to fit 2.75 inch .065 wall tube
N3R-28-341
NEAPCO CV BALL STUD YOKE
N3R-28-341
3R Series
- Fits 2.75 inch OUTSIDE Diameter Tubing with .065 inch wall thickness
- GREASEABLE
- Designed to hold 3R series universal joint
- Fits 2.562 inches between inner surfaces where "C" Clips lock in
- Fits 1 1/8 inch bearing cap diameter
- INSIDE "C" Clip Style

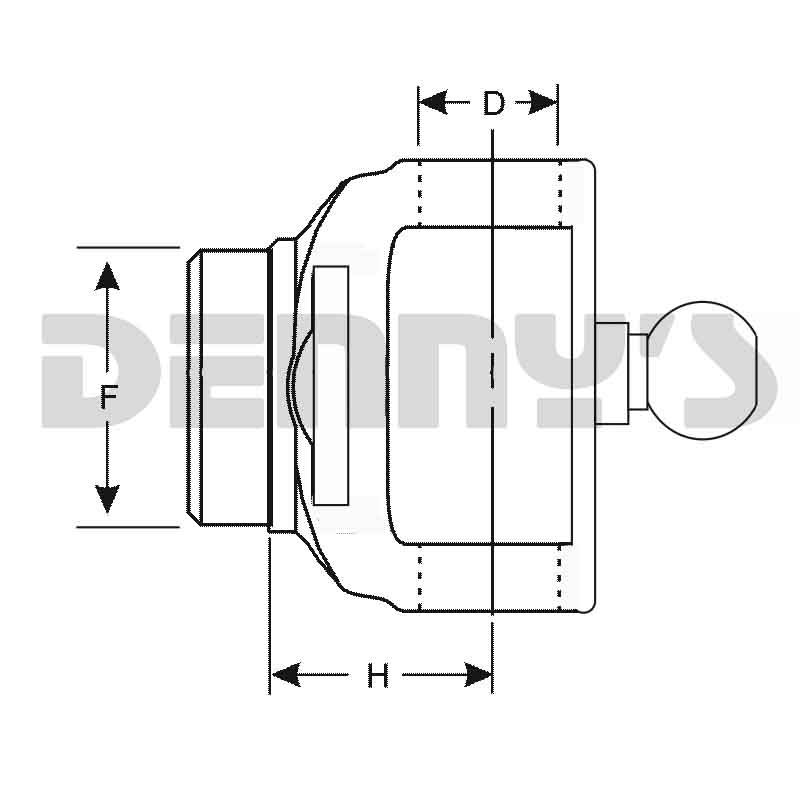

- D = 1.125 Bearing Cap Bore Diameter
- F = 2.63 Butt Diameter
- H = 1.62 CL to Weld
Limited Supply: only 1 remaining
Pricing:
$101.83
Description
NEAPCO CV BALL STUD YOKE
N3R-28-341
3R Series
- Fits 2.75 inch OUTSIDE Diameter Tubing with .065 inch wall thickness
- GREASEABLE
- Designed to hold 3R series universal joint
- Fits 2.562 inches between inner surfaces where "C" Clips lock in
- Fits 1 1/8 inch bearing cap diameter
- INSIDE "C" Clip Style
- D = 1.125 Bearing Cap Bore Diameter
- F = 2.63 Butt Diameter
- H = 1.62 CL to Weld
Details
- N3R-28-341
- N3R-28-341
- Neapco
- Available
- New
