Oldsmobile > Pinion Yokes

Oldsmobile Pinion Yokes

Denny's Driveshafts offer a variety of Oldsmobile Pinion Yokes.  The typical Olds rear end pinion yoke utilizes a strap and bolt design to hold the rear universal joint into the yoke.  Disconnecting the 4 bolts and 2 straps is necessary to remove the driveshaft to from the car.  Denny's offers both the original equipment strap and bolt design and also the u-bolt design as replacements.  Please measure your u-joint width before ordering.  The 1310 u-joint will measure 3.219 wide and the 1330 will measure 3.625 wide.  Both will have a 1.062 bearing cap diameter.

Please click here for Pinion Yokes


9900047 Pinion Yoke Kit GM 3R Series 27 splines fits Oldsmobile with GM 7.6 inch 10 bolt rear end
9900047 Pinion Yoke Kit GM 3R Series 27 splines fits Oldsmobile with GM 7.6 inch 10 bolt rear end
$130.95 $105.95 each
Part Number:
9900047
$130.95 $105.95 each

9900047

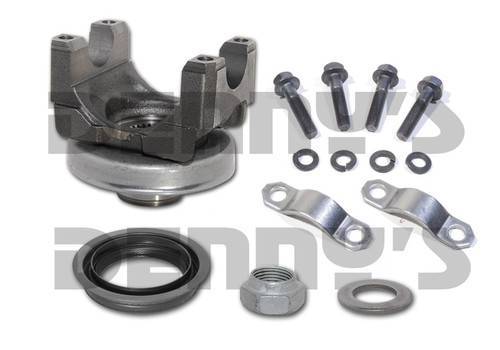

3R Series Pinion Yoke Kit  - strap and bolt style

  • Fits Oldsmobile with GM 7.6 inch 10 Bolt Rear End
  • 27 splines
  • Fits 3R series u-joint with inside C-Clips
    • 2.556 inches between inside surfaces of yoke
    • 1.128 bearing cap diameter
  • Includes strap and bolt set
  • Includes pinion nut and washer
  • Includes Pinion Seal new style triple lip design

Status: SOLD OUT...More Coming Soon
9900047 Pinion Yoke Kit GM 3R Series 27 splines fits Oldsmobile with GM 7.6 inch 10 bolt rear end
9900047 Pinion Yoke Kit GM 3R Series 27 splines fits Oldsmobile with GM 7.6 inch 10 bolt rear end
$130.95 $105.95 each
Part Number:
9900047
$130.95 $105.95 each

9900047

3R Series Pinion Yoke Kit  - strap and bolt style

  • Fits Chevrolet and GM 7.6 inch 10 Bolt Rear End
  • 27 splines
  • Fits 3R series u-joint with inside C-Clips
    • 2.556 inches between inside surfaces of yoke
    • 1.128 bearing cap diameter
  • Includes strap and bolt set
  • Includes pinion nut and washer
  • Includes Pinion Seal new style triple lip design

Status: SOLD OUT...More Coming Soon
9984216 Pinion Yoke 30 spline 3R series for inside c-clip u-joint fits Oldsmobile GM 8.5 inch 10 bolt rear end
9984216 Pinion Yoke 30 spline 3R series for inside c-clip u-joint fits Oldsmobile GM 8.5 inch 10 bolt rear end
$52.95 each
Part Number:
9984216
$52.95 each

Part Number 9984216

3R Series Pinion Yoke to replace original equipment

  • Fits Oldsmobile 8.5 inch 10 Bolt Rear Ends
  • 30 splines
  • Fits INSIDE "C" Clip style universal joints listed below
  • Strap and Bolt Style

DIMENSIONS

  • 21A - Height = 3.375 inches
  • 24 - U-Joint lockup Inside dimension = 2.556 inches
  • 22 - U-Joint saddle diameter = 1.125 inches
  • 25 - Seal surface diameter = 1.938
  • 23 - Spline Diameter = 1.312

Status: IN STOCK
9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2  with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
9400022 Pinion Yoke KIT 3R series fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with 8.2 inch BOP rear end with 27 spline pinion and bolt in style axles
$125.95 each
Part Number:
9400022
$125.95 each

9400022

  • 3R SERIES PINION YOKE KIT
    • INCLUDES - pinion nut, washer and u-bolt set
  • 27 spline
  • U-Bolt style
  • Fits 1966 to 1971 Oldsmobile F-85, Cutlass, 4-4-2 with BOP rear axle housing with bolt in style axles
    • Commonly known as the BOP Rear End (Buick-Olds-Pontiac)
  • 1.942 seal surface diameter
    • DOES NOT FIT early BOP housings that originally had a pinion yoke with the 1.642 seal surface diameter

Status: IN STOCK - FREE SHIPPING
1957-1964 Oldsmobile 1350 Chromoly Pinion Yoke 13 Spline Mark Williams 39018
1957-1964 Oldsmobile 1350 Chromoly Pinion Yoke 13 Spline Mark Williams 39018
$198.95 each
Part Number:
MW 39018
$198.95 each

1957-1964 Oldsmobile and Pontiac 1350 series Chromoly 13 Spline Pinion Yoke

Status: FACTORY DIRECT TO YOU
5 Matching Results Found
