Genuine American Axle & Manufacturing parts for AAM 9.25 inch Front Axle.

Dodge RAM 4wd front outer axle shafts, inner axle shafts, complete axle shaft assemblies, ball joints, axle u-joints, wheel joints, bearings, yokes, seals, serrated pinion flange, ring and pinion gear sets, internal gears, differential carriers and related parts for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 DODGE RAM 2500 and 3500 series 4X4 trucks.

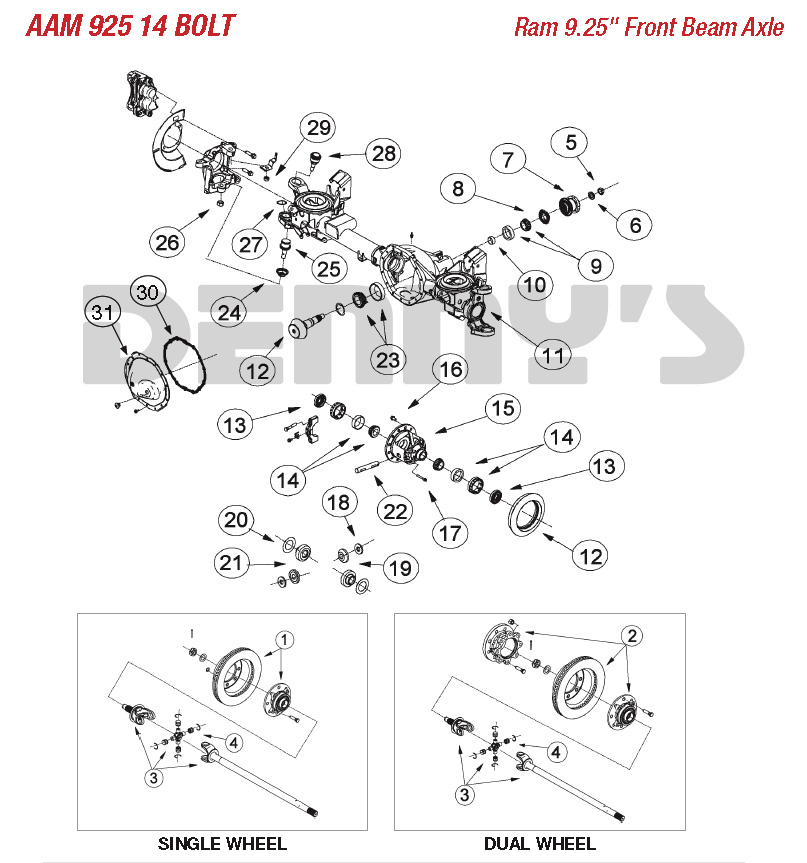

Parts diagram for AAM 9.25 inch 14 bolt FRONT axle for 2003 and newer Dodge Ram 2500, 3500 at Denny's Driveshafts

Diag #	Part #	Description
1	*****	Dealer Only
2	*****	Dealer Only
3	Multiple	Please scroll down to AXLE U-Joint and AXLE Outer / AXLE Inner listings
4	Multiple	Please scroll down to AXLE U-Joint and AXLE Outer / AXLE Inner listings
5	9783762	Pinion Nut
6	517900	Pinion Washer
7	40047860	Pinion Flange - SERRATED Style
7	40112849	Pinion Flange - FLAT style
8	40017140	Pinion Seal
9	In Kit	Small Pinion Roller Bearing Cup SEE Master Bearing Kit
10	14012691	Collapsible Spacer/ Crush Collar
11	*****	Housing - For Reference only
12	Multiple	Gear Set - Please scroll down to Ring and Pinion Gear Section
13	40011965	Axle shaft Output TUBE Seal
14	In Kit	Diff case Roller Bearing Cup SEE Master Bearing Kit
15	Multiple	Diff Case - Please scroll down to Differential Case listings
16	40031306	Ring Gear bolt with dry thread locker adhesive applied to each bolt
17	In Kit	Diff Cross shaft lock screw - Please scroll down to DIFF SPIDER GEAR listings
18	In Kit	Diff Small gear thrust washers Flat and Curved - See DIFF SPIDER GEAR listings
19	In Kit	Diff Side gear - Please scroll down DIFF SPIDER GEAR listings
20	In Kit	Diff Side gear thrust washer - Please scroll down DIFF SPIDER GEAR listings
21	In Kit	Diff Side Gear - Please scroll down DIFF SPIDER GEAR listings
22	In Kit	Diff Cross shaft - Please scroll down DIFF SPIDER GEAR listings
23	In Kit	Large Pinion Roller Bearing Cup SEE Master Bearing Kit
24	In Kit	Please scroll down to BALL JOINT Listings
25	In Kit	Please scroll down to BALL JOINT Listings
26	In Kit	Please scroll down to BALL JOINT Listings
27	In Kit	Please scroll down to BALL JOINT Listings
28	In Kit	Please scroll down to BALL JOINT Listings
29	In Kit	Please scroll down to BALL JOINT Listings
30	40011815	RUBBER over Metal GASKET
31	40015796	COVER

AAM 9.25 inch FRONT - DODGE

AXLE - DUST SHIELD

	AAM 40011848 - DEFLECTOR fits Outer Axle Stub Shaft DODGE Ram 2500, 3500 with 9.25 inch Front Axle CLICK HERE for More Details Part Number: 40011848	$5.10	IN STOCK

AXLE - NUT and WASHER

	AAM 40010627 NUT fits Outer Axle Stub Shaft 2003 - 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle CLICK HERE for More Details Part Number: 40010627	$7.98	IN STOCK

	AAM 40010627 Nut and 40010628 Washer set with cotter pin 2003 - 2013 Dodge Ram 2500, 3500 Outer Axle 4x4 with 9.25 inch AAM Front CLICK HERE for More Details Part Number: 40010627/40010628	$9.10	IN STOCK

	AAM 40073474 NUT fits Outer Axle Stub Shaft 2014 and newer DODGE Ram 2500, 3500 with 9.25 inch Front Axle CLICK HERE for More Details Part Number: 40073474	$3.55	IN STOCK

AXLE - TUBE SEALS

	AAM 40201742 Axle Shaft Tube Seal fits 2003 and newer DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 40201742	$23.95	IN STOCK

	AAM 74050016 - AXLE SEAL KIT fits 2003 and newer DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74050016	$53.95	IN STOCK

AXLE - U-JOINTS

2003 - 2009

	DANA SPICER 5006813 Wheel U-Joint 1485 Series fits 2003 to 2009 Dodge RAM 2500 RAM 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 5006813	~~$73.95~~ $69.95	IN STOCK

	AAM 74081485 Universal Joint 1485 series fits 2003 to 2009 DODGE RAM 2500/3500 with 9.25 Front Axles CLICK HERE for More Details Part Number: 74081485	$61.95	IN STOCK

	AAM 74110001 WHEEL JOINT KIT- Fits 2003 to 2009 DODGE RAM 2500/3500 with 9.25 Front Axles 1485 series PARTS FOR BOTH RIGHT AND LEFT AXLES CLICK HERE for More Details Part Number: 74110001	$144.95	IN STOCK FREE SHIPPING

2010 - 2018

	AAM 74081555 Universal Joint 1555 series fits 2010 to 2023 DODGE RAM 2500/3500 with 9.25 Front Axles CLICK HERE for More Details Part Number: 74081555	$63.95	IN STOCK

	AAM 74110002 WHEEL JOINT KIT- Fits 2010 to 2013 DODGE RAM 2500/3500 with 9.25 Front Axles 1555 series PARTS FOR BOTH RIGHT AND LEFT AXLES CLICK HERE for More Details Part Number: 74110002	$150.95	SOLD OUT

AXLE - OUTER

2003 - 2008

	AAM 40027243 - Outer Axle Stub Shaft fits 2003 to 2008 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series CLICK HERE for More Details Part Number: 40027243K	$165.95	IN STOCK FREE SHIPPING

2009 ONLY

	AAM 40052462 Outer Axle Stub Shaft fits 2009 ONLY DODGE Ram 2500, 3500 DISCONTINUED NO LONGER AVAILABLE - See Complete Axle Assembly CLICK HERE for More Details Part Number: 40052462	$0.01

2010 - 2013

	AAM 40060443 - Outer Axle Stub Shaft fits 2010 to 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series CLICK HERE for More Details Part Number: 40060443K	$136.95	IN STOCK FREE SHIPPING

AXLE - INNER

2003 - 2009

	C809-2458 Left Inner Axle fits 2003 to 2009 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series CLICK HERE for More Details Part Number: C809-2458	$216.95	IN STOCK FREE SHIPPING

	C809-3282 Right Inner Axle fits 2003 to 2009 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series CLICK HERE for More Details Part Number: C809-3282	$196.95	IN STOCK FREE SHIPPING

2010 - 2013

	AAM 40060431 Left Inner Axle fits 2010 to 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series CLICK HERE for More Details Part Number: 40060431	$122.95

	C809-2478 Right Inner Axle fits 2010 to 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series CLICK HERE for More Details Part Number: C809-2478	$160.95	IN STOCK FREE SHIPPING

AXLE - INTERMEDIATE - from disconnect to spider gear

	AAM 40114128 Intermediate output shaft passenger side fits from spider gear to disconnect 9.25 inch front 2014 - 2018 Ram 2500, 3500 CLICK HERE for More Details Part Number: 40114128	$195.95	SOLD OUT

AXLE - DISCONNECT PARTS

	AAM 40116533 Electric shift Disconnect actuator for 9.25 inch front 2014 to 2018 RAM 2500, 3500 CLICK HERE for More Details Part Number: 40116533	$152.69	IN STOCK FREE SHIPPING

	AAM 40178466 Electric shift Disconnect actuator for 9.25 inch front 2020 and newer RAM 2500, 3500 CLICK HERE for More Details Part Number: 40178466	$162.95	SOLD OUT

AXLE - COMPLETE ASSEMBLY

2003 - 2008

	C809-3273 Right Axle Assembly fits 2003 to 2008 DODGE Ram 2500, 3500 with 9.25 inch Front Axle CLICK HERE for More Details Part Number: C809-3273	$410.95	IN STOCK FREE SHIPPING

	C809-3563 Left Axle Assembly fits 2003 to 2008 DODGE Ram 2500, 3500 with 9.25 inch Front Axle CLICK HERE for More Details Part Number: C809-3563	$410.95	IN STOCK FREE SHIPPING

2009 ONLY

	C809-3280 Right Axle Assembly 2009 ONLY DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series CLICK HERE for More Details Part Number: C809-3280	$415.95	IN STOCK FREE SHIPPING

	C809-2460A Left Axle Assembly 2009 ONLY DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1485 series CLICK HERE for More Details Part Number: C809-2460A	$425.95	IN STOCK FREE SHIPPING

2010 - 2013

	AAM 40072773 / 68065426AB Right Axle Assembly fits 2010 to 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series CLICK HERE for More Details Part Number: 40072773 / 68065426AB	$190.97

	AAM 40072774 / 68065427AB - Left Axle Assembly fits 2010 to 2013 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series CLICK HERE for More Details Part Number: 40072774	$279.63

2014 - 2018

	C809-9645 Left Axle Assembly fits 2014 to 2018 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series replaces 40104193 CLICK HERE for More Details Part Number: C809-9645	$320.95	SOLD OUT

	C809-9646 Right Axle Assembly fits 2014 to 2018 DODGE Ram 2500, 3500 with 9.25 inch Front Axle 1555 series Disconnect Side CLICK HERE for More Details Part Number: C809-9646	$325.95	IN STOCK FREE SHIPPING

BALL JOINTS

	AAM 74100001 - BALL JOINT SET fits 2003 - 2013 DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74100001	~~$72.75~~ $69.29

	AAM 74100007 BALL JOINT SET fits 2014 - 2018 DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74100007	$76.95	IN STOCK

DIFF CASE

	AAM 40047279 Electric Locker TracRite Differential fits 2003 to 2014 RAM 2500/3500 with 9.25 inch Front 05175278AB CLICK HERE for More Details Part Number: 40047279	$1,235.95	SOLD OUT

	AAM 40035046 Loaded Open Differential Case fits 9.25 inch Beam front axle 2003 to 2006 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40035046	$295.00

	AAM 40031460 Loaded Open Differential Case fits 9.25 inch Beam front axle 2007 to 2013 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40031460	~~$292.95~~ $279.95	IN STOCK FREE SHIPPING

	AAM 40089797 Loaded Open Differential Case fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40089797	$289.95	SOLD OUT

	AAM 14012753 Adjuster nut for differential bearings Dodge Ram 9.25 inch front CLICK HERE for More Details Part Number: 14012753	$21.95	IN STOCK

	AAM 14012707 diff bearing adjuster lock CLICK HERE for More Details Part Number: 14012707	$2.25	IN STOCK

DIFF COVER

	AAM 40007601 diff cover fill plug fits Ram 9.25 inch front CLICK HERE for More Details Part Number: 40007601	$2.95	IN STOCK

	AAM 40011815 Diff Cover GASKET fits 9.25 inch Beam front axle 2003 to 2013 Dodge Ram 2500, 3500 CLICK HERE for More Details Part Number: 40011815	$0.01

	AAM 40063948 Diff Cover fits 9.25 inch Beam front axle 2003 to 2013 Dodge Ram 2500, 3500 CLICK HERE for More Details Part Number: 40063948	$28.95	IN STOCK

	AAM 40087998 Diff Cover for 9.25 inch front diff fits 2014 - 2016 RAM 2500, 3500 CLICK HERE for More Details Part Number: 40087998	$18.38	IN STOCK

	AAM 74030009 Cover and Gasket Kit fits 9.25 inch Beam front axle 2003 to 2012 Dodge Ram 2500, 3500 CLICK HERE for More Details Part Number: 74030009	$0.01

	Dana Spicer 38615 Loctite SI 5699 Replaced by 70-31414-10 REINZOSIL RTV Silicone Gasket Maker CLICK HERE for More Details Part Number: 38615	$7.65

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 16	$23.64	IN STOCK

	AAM 40002169 Diff Cover BOLT metric thread M8 x 1.25 x 22 fits RAM 9.25 inch front CLICK HERE for More Details Part Number: 40002169 Diagram Number: 30	$1.30	IN STOCK

DIFF PARTS - SPIDER GEAR

	AAM 74047037 Diff Spider gear kit fits 2003 to 2006 DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74047037	$99.72

	AAM 74042462 Diff GEAR Kit Spider gear set fits 2007 to 2012 DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74042462	$110.35	IN STOCK

RING and PINION GEAR SET

2003 - 2006

	AAM 40036546 Ring and Pinion Gear Set 3.73 Ratio fits 9.25 inch Beam front axle 2003 to 2013 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40036546	$295.95	IN STOCK FREE SHIPPING

2007 - 2013

	AAM 40045288 Ring and Pinion Gear Set 3.42 Ratio fits 9.25 inch Beam front axle 2007 to 2013 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40045288	~~$313.90~~ $298.95	SOLD OUT

	AAM 40036546 Ring and Pinion Gear Set 3.73 Ratio fits 9.25 inch Beam front axle 2003 to 2013 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40036546	$295.95	IN STOCK FREE SHIPPING

2014 - 2016

	AAM D925342GS-1 Ring and Pinion Gear Set 3.42 Ratio fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: D925342GS-1	~~$346.37~~ $329.88	SOLD OUT

	AAM D925373GS-2 Ring and Pinion Gear Set 3.73 Ratio fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: D925373GS-2	~~$346.45~~ $329.95	SOLD OUT

	AAM D925410GS-2 Ring and Pinion Gear Set 4.10 Ratio fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: D925410GS-2	$329.50	IN STOCK FREE SHIPPING

	AAM D925444GS Ring and Pinion Gear Set 4.44 Ratio fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: D925444GS	~~$346.37~~ $329.88	IN STOCK FREE SHIPPING

	AAM 40146853 Ring and Pinion Gear Set 4.56 Ratio fits 9.25 inch Beam front axle 2014 to 2016 Dodge Ram 2500, 3500 Original Equipment CLICK HERE for More Details Part Number: 40146853	~~$303.98~~ $289.50

RING GEAR BOLT

	AAM 40031306 Ring Gear Bolt for 9.25 inch Beam front axle 2003 and newer Dodge Ram 2500, 3500 CLICK HERE for More Details Part Number: 40031306	$1.59	IN STOCK

COLLAPSIBLE SPACER / CRUSH COLLAR

	AAM 14012691 Collapsable Spacer Crush Collar for DODGE 9.25 Front 2003 and newer RAM 2500, 3500 CLICK HERE for More Details Part Number: 14012691	$1.95	IN STOCK

MASTER BEARING KIT 9.25 inch AAM FRONT

	AAM 74067005 Master Bearing Kit fits 2003 to 2013 Dodge Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74067005	$135.50	IN STOCK FREE SHIPPING

	AAM 74067022 Master Bearing Kit fits 9.25 inch front diff 2014, 2015, 2016 RAM 2500, 3500 CLICK HERE for More Details Part Number: 74067022	$136.53	IN STOCK FREE SHIPPING

PINION SEAL

	AAM 26060975 PINION SEAL SLEEVE for 40017140 AAM Seal for Dodge Ram 2500, 3500 CLICK HERE for More Details Part Number: 26060975	$6.86	IN STOCK

	AAM 40017140 PINION SEAL fits DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 40017140	$9.95	IN STOCK

	AAM 74020009 - PINION SEAL KIT fits 2003 and newer DODGE Ram 2500, 3500 with 9.25 inch AAM Front Axle CLICK HERE for More Details Part Number: 74020009	$23.95	IN STOCK

PINION NUT and WASHER

	AAM 517900 Pinion Washer for DODGE 9.25 Front 2003 and newer RAM 2500, 3500 CLICK HERE for More Details Part Number: 517900	$1.70	IN STOCK

	AAM 9783762 Pinion Nut for DODGE 9.25 Front 2003 and newer RAM 2500, 3500 CLICK HERE for More Details Part Number: 9783762	$1.95	IN STOCK

PINION FLANGE - SERRATED

	AAM 40047860 SERRATED PINION FLANGE 30 splines fits 9.25 inch AAM Front Axle 2003 and newer DODGE Ram 2500, 3500 CLICK HERE for More Details Part Number: 40047860	$65.33	IN STOCK

PINION FLANGE - FLAT

	AAM 40112849 Pinion Flange 30 splines FLAT mounting surface fits 9.25 inch front with 12 bolts on cover 2014 - 2016 RAM 2500, 3500 CLICK HERE for More Details Part Number: 40112849	$65.62	IN STOCK
