Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

General Motors

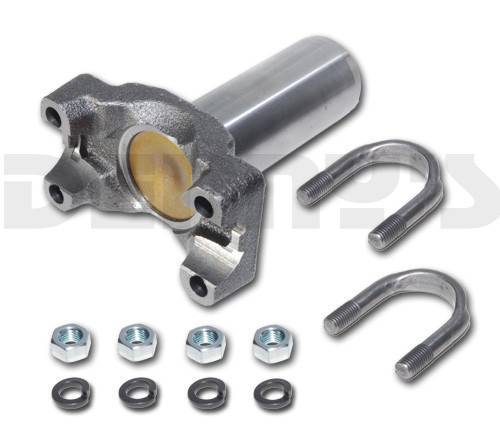

General Motors Transmission Slip Yokes

Denny's Driveshafts stocks a wide variety of General Motors Automatic and Manual Transmission Slip yokes in 1310, 1330 and 1350 series as well as the 3R series GM original equipment design.  Choose from all of the popular transmission models such as Powerglide, Turbo 350, T-350, Torbo 400, T-400, 4L60, 4L80, 700R4, 200R, Muncie M20, M21 M22, Borg Warner T-5, T-56, T-10, ZF 6 speed, Saginaw, 4L65, 4L85.   Slip yokes are available to fit 16, 27 and 32 spline GM transmission output shafts.



 Spline Count PART NUMBER
PHOTO SEE MORE INFO Series LockUp Type U-Joint LockUp Width U-Joint Cap Dia Barrel Length Overall Length Construction
 16 splines 1310
 2-3-1331X MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  4.875  CAST
   2081500 MORE INFO  1310 U-Bolt  3.219  1.062  3.375  5.000  CAST Corvette Detachable
********
 27 splines 1310
 2081856   MORE INFO  1310 U-Bolt  3.219  1.062  3.375  5.000  CAST Corvette Detachable
   2-3-4911X   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  4.875  CAST
   T2-3-4911HP   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  4.880  FORGED
   2-3-6081X   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  5.469  CAST
   N2-3-6081X   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  5.470  CAST
   T2-3-6081HP   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.625  5.470  FORGED
   2099626   MORE INFO  1310 Outside Snap Ring  3.219  1.062  6.000  8.000  Long Barrel CAST
   T2-3-6081HP8XL   MORE INFO  1310 Outside Snap Ring  3.219  1.062  6.250  8.000  Long Barrel FORGED
   598448   MORE INFO  1310CV Tab Style  3.219  1.062   5.875 Double Cardan CV style slip yoke
********       *********   *********** *********
 27 splines 1330
 2-3-12081X   MORE INFO  1330 Outside Snap Ring  3.625  1.062  3.625  5.470  CAST
   T2-3-12018HP   MORE INFO  1330 Outside Snap Ring  3.625  1.062  3.625  5.470  FORGED
   2-3-12051X   MORE INFO  1330 Outside Snap Ring  3.625  1.062  4.625  6.760  CAST, WITH Vent Hole
   2-3-11781X   MORE INFO  1330 Outside Snap Ring  3.625  1.062  4.625  6.760  CAST, NO Vent Hole
********       *********   *********** *********
 27 splines 1350
 T3-3-6081HP   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.880  5.470  FORGED CM
   N3-3-4271X   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.625  5.940  CAST
   39005   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.500  5.812

 FORGED CM

   39035   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.500  5.812

 FORGED CM for Roller Bearing PG

   3-3-4281X   MORE INFO  1350 Outside Snap Ring  3.625  1.188  4.625  6.940  CAST
   N3-3-4281X   MORE INFO  1350 Outside Snap Ring  3.625  1.188  4.625  6.940  CAST
   T3-3-4281HP   MORE INFO  1350 Outside Snap Ring  3.625  1.188  5.130  6.940  FORGED CM
********       *********   *********** *********
 27 splines 3R
 T3R-3-6081HP   MORE INFO  3R Inside C Clip  2.556  1.125  3.750  5.470  FORGED
   7812557   MORE INFO  3R Inside C Clip  2.556  1.125  3.750  5.470  CAST
   N3R-3-6081X   MORE INFO  3R Inside C Clip  2.556  1.125  3.750  5.470  CAST
   7848635   MORE INFO  3R Inside C Clip  2.556  1.125  4.875  6.750  CAST
   N3R-3-12051X   MORE INFO  3R Inside C Clip  2.556  1.125  4.875  6.750  CAST
********       **********   *********** *********
 32 splines 1310
 2-3-5281X   MORE INFO  1310 Outside Snap Ring  3.219  1.062    5.188  CAST 1.688 BARREL OD
 ********       **********   *********** *********
 32 splines 1310
 2-3-10431X   MORE INFO  1310 Outside Snap Ring  3.219  1.062  4.00  5.50  CAST
   T2-3-10431HP   MORE INFO  1310 Outside Snap Ring  3.219  1.062  4.00  5.50  FORGED
   T2-3-13131HP   MORE INFO  1310 Outside Snap Ring  3.219  1.062  3.25  4.875  FORGED
   2020662   MORE INFO  1310 Outside Snap Ring  3.219  1.062      CAST Slip Yoke to replace Bolt On
   N2-3-9131X   MORE INFO  1310 Outside Snap Ring  3.219 1.062 6.0 7.50 CAST - COUNTERBORED
********       *********   *********** *********
 32 splines 1330
 2012322   MORE INFO  1330 Strap and Bolt  3.625  1.062      CAST Corvette Detachable
   SY30-32S-T400   MORE INFO  1330 Outside Snap Ring  3.625  1.062  3.375  5.25  CAST
   2060544   MORE INFO  1330 Outside Snap Ring  3.625  1.062      CAST Slip Yoke to replace Bolt On
********       *********   *********** *********
 32 splines 1350
 3-3-2431X   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.25  5.50  CAST
   T3-3-2431HP   MORE INFO  1350 Outside Snap Ring  3.625  1.188  3.880  5.50  FORGED CM
   39004   MORE INFO  1350 Outside Snap Ring  3.625  1.188    5.75  FORGED CM
   3-3-5571X   MORE INFO  1350 Outside Snap Ring  3.625  1.188  4.875  6.938  CAST
   2060108-CM   MORE INFO  1350 Outside Snap Ring  3.625  1.188      FORGED CM
Slip Yoke to replace Bolt On
   704400   MORE INFO  1350CV Tab Style  3.625  1.188     Double Cardan CV style slip yoke
********       *********   *********** *********
 32 splines 3R
 T3R-9131HP   MORE INFO  3R Inside C Clip  2.556  1.125  6.000  7.500  FORGED
   N3R-3-9762X   MORE INFO  3R Inside C Clip  2.556  1.125  3.75  5.375  CAST
   N3R-3-9131X   MORE INFO  3R Inside C Clip  2.556  1.125  6.000  7.625  CAST
   2060989   MORE INFO  3R Inside C Clip  2.556  1.125      CAST Slip Yoke to replace Bolt On
   509041   MORE INFO  3R CV Inside C Clip  2.556  1.125    6.875 Double Cardan CV style slip yoke




General Motors

16 SPLINE - 1310 Series - Fits 3 7/32 by 1 1/16 U-Joint

27 Spline 1310 Series - Fits 3 7/32 by 1 1/16 U-Joint

DETACHABLE FOR CORVETTE

5 INCH

5 INCH FORGED

5.5 INCH

5.5 INCH FORGED

8 INCH

8 INCH FORGED

27 Spline 1330 Series - Fits 3 5/8 by 1 1/16 U-Joint

5.5 INCH

5.5 INCH FORGED

6.75 INCH

27 Spline 1350 Series - Fits 3 5/8 by 1 3/16 U-Joint

5.47 INCH CHROMOLY

6 INCH

5.812 INCH CHROMOLY

7 INCH

7 INCH CHROMOLY

27 Spline GM 3R Series - Fits 2 9/16 by 1 1/8 U-Joint - Inside clips

5.47 INCH FORGED

5.5 INCH

6.75 INCH

32 SPLINE with 1.688 barrel OD

32 SPLINE with 1.886 barrel OD

1310 Series - Fits 3 7/32 by 1 1/16 U-Joint

1330 Series - Fits 3 5/8 by 1 1/16 U-Joint

1350 Series - Fits 3 5/8 by 1 3/16 U-Joint

GM 3R Series - Fits 2 9/16 by 1 1/8 U-Joint - Inside clips

32 SPLINE - TRUCK TRANSMISSION T-400, 4L80, 4L85

1310 Series - Fits 3 7/32 by 1 1/16 U-Joint

1350 Series - Fits 3 5/8 by 1 3/16 U-Joint

GM 3R Series - Fits 2 9/16 by 1 1/8 U-Joint - Inside clips
