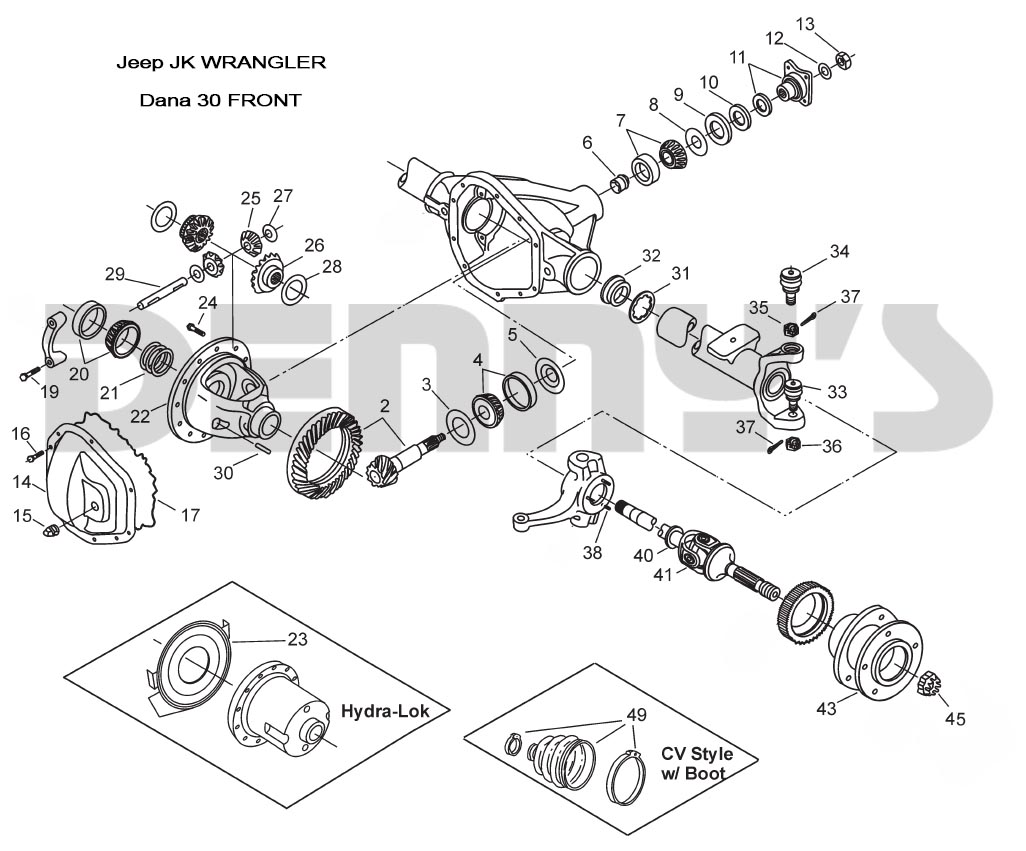

Dana 30 Front axle parts for Jeep JK at Denny's Driveshafts

Diagram #	Part #	Description	Diagram #	Part #	Description
	*****	Housing - For reference only	24	41221	Ring Gear Bolts (Qty 10)
2	Multiple	Ring and Pinion Gear set 3.73 and 4.10	25	2005962	Small Spider Gear
3	701140X	Shim	26	2005962	Side Spider Gear
4	707064X	Inner Pinion Bearing Cup and Cone	27	2005962	Cupped washer - small spider
5	48741-3	Baffle	28	2005962	Flat Thrust washer - side spider
6	Multiple	Collapsible Spacer	29	41648	Cross shaft
7	706015X	Outer Pinion Bearing	30	13449	Roll Pin
8	Multiple	Slinger	31	2003627	Guide
9	2004670	Pinion Seal	32	Multiple	Tube Seal
10	47762	Inner Pinion Seal	33-37	2007354	Ball Joint Set
11	2005008	Pinion Flange/Yoke	38	2016794	Hub Bolt (Qty 3 per side)
13	44189	Pinion Nut
14	2007353	Diff Cover	40	51707	Slinger
15	43180	Plug for Diff Cover	40-42	Multiple	Axle Shafts and U-Joint
16	34279	Bolts for Diff Cover Quantity 10	43	10021363	Hub assembly
17	70-31414-10	RTV Sealer	47	2008564	Nut
	*****	Diff Brg Cap - not sold separately	49	708179	CV Boot Kit - Special Order
19	48632-1	Bolt for Diff Brg Cap
20	706016X	Diff Bearing Kit Cup and Cone
21	701173X	Diff Bearing Shim/Spacer Kit
22	2005974	Diff Case fits 3.73, 4.10
23	49175	Plenum Assy (Hydra Lok)

DANA 30 FRONT - JK 2007 - 2018

	DANA SPICER 2017378 Differential Bearing Master Kit Fits JEEP JK Wrangler 2007-2018 with Dana 30 Front CLICK HERE for More Details Part Number: 2017378	$174.27	IN STOCK FREE SHIPPING

	Dana Spicer 2005021-5 Ring and Pinion Gear Set 3.73 Ratio fits Dana 30 Front 2007 to 2018 Jeep JK Wrangler CLICK HERE for More Details Part Number: 2005021-5 Diagram Number: 2	~~$309.30~~ $259.00	IN STOCK FREE SHIPPING

	Dana Spicer 2005027-5 Ring and Pinion Gear Set 4.10 Ratio fits Dana 30 Front 2007 to 2018 Jeep JK Wrangler CLICK HERE for More Details Part Number: 2005027-5 Diagram Number: 2	~~$501.58~~ $420.08	IN STOCK FREE SHIPPING

	Dana Spicer 701140X Pinion Shim Kit 8 shims fits Jeep JK Dana 30 front, Jeep JK Dana 44 front and rear CLICK HERE for More Details Part Number: 701140X Diagram Number: 3	$20.86	IN STOCK

	Dana Spicer 707064X Inner Pinion Bearing Kit includes M802048 and M802011 Jeep JK Dana 30 front CLICK HERE for More Details Part Number: 707064X Diagram Number: 4	$28.89	IN STOCK

	Dana Spicer 48741-3 Baffle 3.180 inch OD for Inner Pinion Bearing fits Dana 30 front and Dana 44 front end Jeep JK Wrangler 2007 to 2018 CLICK HERE for More Details Part Number: 48741-3 Diagram Number: 5	$1.91	IN STOCK

	Dana Spicer 10009299 Crush Sleeve / Collapsible Spacer fits JEEP JK, JL Dana Super 30 FRONT axle CLICK HERE for More Details Part Number: 10009299 Diagram Number: 6	$18.23	IN STOCK

	Dana Spicer 50614 Crush Sleeve / Collapsible Spacer Fits JEEP JK and WJ with Dana Super 30 front and JEEP JK with Dana 44 FRONT axle CLICK HERE for More Details Part Number: 50614 Diagram Number: 6	$3.16	IN STOCK

	Dana Spicer 706015X INNER PINION BEARING KIT for Jeep JK Wrangler Dana 30 front - HM88649, HM88610 CLICK HERE for More Details Part Number: 706015X Diagram Number: 7	~~$34.18~~ $29.55	IN STOCK

	Dana Spicer 13575 Slinger for pinion bearing 2.845 OD 1.132 ID fits Jeep Wrangler Dana 30 front CLICK HERE for More Details Part Number: 13575 Diagram Number: 8	$0.74	IN STOCK

	Dana Spicer 2005565 Slinger for pinion bearing 2.125 OD 1.260 ID fits Jeep Wrangler Dana 30 front CLICK HERE for More Details Part Number: 2005565 Diagram Number: 8	$1.88	IN STOCK

	Dana Spicer 42778 Slinger for pinion bearing 2.125 OD 1.135 ID fits Jeep Wrangler Dana 30 front CLICK HERE for More Details Part Number: 42778 Diagram Number: 8	$3.82	IN STOCK

	Dana Spicer 2004670 Pinion Seal fits 2007 to 2018 JEEP Wrangler JK with DANA Super 30 or DANA 44 FRONT END CLICK HERE for More Details Part Number: 2004670 Diagram Number: 9	$13.95	IN STOCK

	Dana Spicer 2005008 Companion Flange 24 Spline fits 2007 to 2018 JEEP Wrangler JK with DANA Super 30 or DANA 44 FRONT END CLICK HERE for More Details Part Number: 2005008 Diagram Number: 11	~~$77.30~~ $64.74	IN STOCK

	Dana Spicer 44189 Pinion Nut fits 2007 to 2018 JEEP Wrangler JK with DANA Super 30 or DANA 44 FRONT END CLICK HERE for More Details Part Number: 44189 Diagram Number: 12/13	$2.95	IN STOCK

	Dana Spicer 2007353 Diff COVER kit for Dana 30 front stamped steel OEM fits 1966 to 2018 CLICK HERE for More Details Part Number: 2007353 Diagram Number: 14	~~$77.50~~ $64.91	IN STOCK

	Dana Spicer 43180 Plug for Differential Cover CLICK HERE for More Details Part Number: 43180 Diagram Number: 15	$4.92	IN STOCK

	Dana Spicer 34279 Diff Cover BOLT 5/16-18 hex head fits Dana 25, 27, 30, Super 30, 35, 44, Chevy 8.2 inch 10 bolt, Chevy 12 Bolt, GM 7.5 and 7.6 inch 10 bolt, GM 8.5 and 8.6 inch 10 bolt, AMC 20 CLICK HERE for More Details Part Number: 34279 Diagram Number: 16	$2.25	IN STOCK

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10 Diagram Number: 17	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 17	$23.64	IN STOCK

	Dana Spicer 706016X DIFFERENTIAL CARRIER BEARING KIT for Jeep JK Wrangler Dana 30 front axle - LM501349, LM501314 CLICK HERE for More Details Part Number: 706016X Diagram Number: 20	~~$44.69~~ $37.43

	Dana Spicer 701173X Diff bearing Shim KIT for Dana 30 front Jeep JK, JKU 2007 to 2018 CLICK HERE for More Details Part Number: 701173X Diagram Number: 21	~~$125.38~~ $105.00	IN STOCK

	Dana Spicer 2005974 Loaded Differential Carrier - OPEN Standard diff fits 3.73 and 4.10 Ratio gears Dana 30 Front 2007 to 2018 Jeep JK Wrangler CLICK HERE for More Details Part Number: 2005974 Diagram Number: 20, 22, 24-29	$369.18	IN STOCK FREE SHIPPING

	Dana Spicer 41221 RING GEAR BOLT fits Dana 28 , Dana 30, Dana 35, Dana 44 Front and Rear diff CLICK HERE for More Details Part Number: 41221 Diagram Number: 24	$0.42	IN STOCK

	Dana Spicer 41648 Spider Gear Cross Shaft for Jeep JK Wrangler with Dana 30 front Open diff carrier CLICK HERE for More Details Part Number: 41648 Diagram Number: 29	$22.64	IN STOCK

	Dana Spicer 13449 ROLL PIN for Diff Spider Cross shaft fits Dana 28 IFS, 30, 35, 44, 36 ICA, 44 ICA, 44 IFS CLICK HERE for More Details Part Number: 13449 Diagram Number: 30	$0.45	IN STOCK

	Dana Spicer 2003627 CLICK HERE for More Details Part Number: 2003627 Diagram Number: 31	$5.62	IN STOCK

	Dana Spicer 2013455 Tube Seal fits DANA 30, 44 Front 2007 to 2018 Jeep JK - Improved Design CLICK HERE for More Details Part Number: 2013455 Diagram Number: 32	$12.11	IN STOCK

	Dana Spicer 46470 TUBE SEAL 2.125 OD fits Right and Left Side 1972 to 1986 Jeep CJ, 1997 to 2006 Jeep TJ, 2007 to 2011 Jeep JK, 1993 to 1998 Jeep ZJ, 1999 to 2001 Jeep XJ with Dana 30 Front Axle - NON Disconnect style CLICK HERE for More Details Part Number: 46470 Diagram Number: 32	$5.20	IN STOCK

	Dana Spicer 54381 Tube Seal fits DANA 30, 44 Front 2007 to 2018 Jeep JK - OEM Replacement CLICK HERE for More Details Part Number: 54381 Diagram Number: 32	$9.48	IN STOCK

	Dana Spicer 2007354 Ball Joint set Jeep JK 2007 to 2018 JK Wrangler DANA 30 or DANA 44 front CLICK HERE for More Details Part Number: 2007354 Diagram Number: 33-37	~~$94.19~~ $78.89	IN STOCK

	Dana Spicer 2016794 BOLT for Front Wheel Hub Bearing Assembly Jeep JK Wrangler 2007 to 2018 CLICK HERE for More Details Part Number: 2016794 Diagram Number: 38	$2.48	IN STOCK

	DANA SPICER 2014616-1 LEFT SIDE HD Axle Assembly fits 2007 to 2017 Jeep WRANGLER JK, UNLIMITED with DANA SUPER 30 Front CLICK HERE for More Details Part Number: 2014616-1 Diagram Number: 40-41	~~$352.64~~ $295.34	IN STOCK FREE SHIPPING

	DANA SPICER 2014616-2 RIGHT SIDE HD Axle Assembly fits 2007 to 2015 Jeep WRANGLER JK, UNLIMITED with DANA SUPER 30 Front CLICK HERE for More Details Part Number: 2014616-2 Diagram Number: 40-41	~~$347.41~~ $325.95	IN STOCK FREE SHIPPING

	Dana Spicer 51707 dust slinger for inner axle shaft fits Jeep JK Dana 30 and Dana 44 front CLICK HERE for More Details Part Number: 51707 Diagram Number: 40	$6.29	IN STOCK

	Dana Spicer 5-7166X Front Axle Universal Joint for 2012 to 2018 JEEP JK Wrangler with Dana 30 front CLICK HERE for More Details Part Number: 5-7166X Diagram Number: 41 U-Joint	$59.94	IN STOCK

	DANA SPICER 5-760X Front Axle Universal Joint NON Greaseable fits 2007 to 2011 JEEP JK Wrangler with DANA 30 front CLICK HERE for More Details Part Number: 5-760X Diagram Number: 41 U-Joint	$28.56	IN STOCK

	Dana Spicer 10021363 Front Wheel Hub Bearing Assembly with ABS sensor and wire for Jeep JK 2007 to 2018 CLICK HERE for More Details Part Number: 10021363 Diagram Number: 43	$92.95	IN STOCK

	Dana Spicer 2008564 Outer Axle Nut Jeep JK Wrangler 2007 - 2018 Dana 30 front CLICK HERE for More Details Part Number: 2008564 Diagram Number: 47	$12.89	IN STOCK
