AAM 9.25 IFS Clamshell FRONT - GM

Chevy / GMC 9.25 inch IFS Front Differential Parts

1988 to 2010 Full size Pickups and SUV's

Hummer H2, Avalanche, Escalade ESV, EXT, Sierra 2500, 3500, Silverado 2500, 3500

Suburban, Yukon XL

9.25 inch diameter ring gear
33 spline axle shafts
6 Bolt axle flange
2 piece clamshell style case

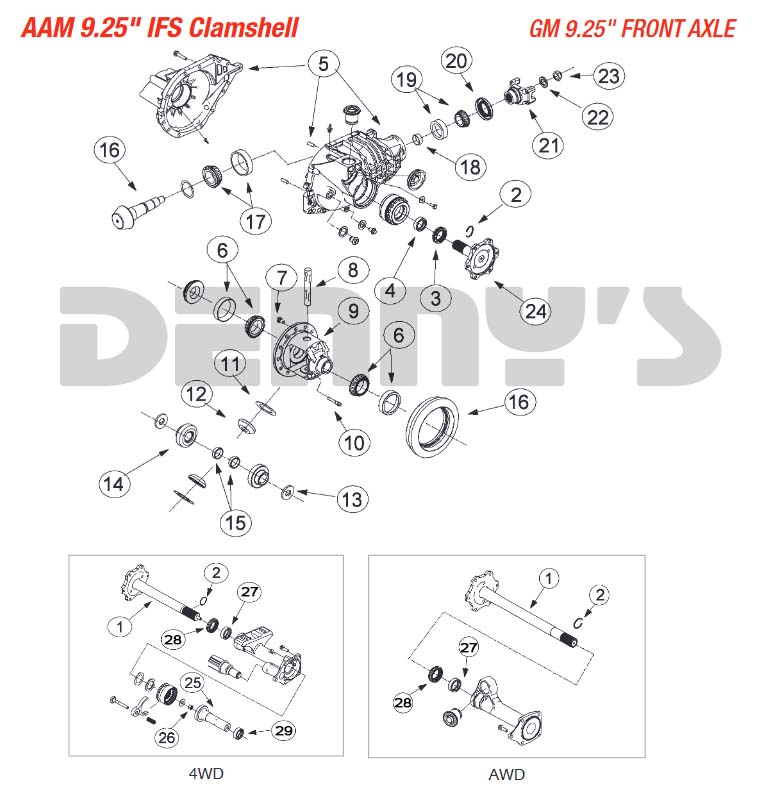

Parts diagram for AAM 9.25 IFS Clamshell front for Chevy GMC trucks at Denny's Driveshafts

AAM 9.25 IFS Clamshell FRONT - GM

AXLE SHAFTS

	AAM 40057071 Output axle shaft Left Side 33 splines 6 Bolt flange 5.82 inches long fits 2008 to 2010 Silverado, Sierra, Hummer H2 with GM 9.25 inch IFS Front 4WD/AWD see number 24 CLICK HERE for More Details Part Number: 40057071 Diagram Number: 24	$81.95	IN STOCK

	AAM 40039201 Output axle shaft Right Side 33 splines 6 Bolt flange 14.06 inches long fits 1997 to 2010 Sierra, Yukon, Silverado, Avalanche, Tahoe, Suburban, Escalade with GM 9.25 inch IFS Front 4WD see number 1 CLICK HERE for More Details Part Number: 40039201 Diagram Number: 1	$105.95	SOLD OUT

	AAM 40057073 Output axle shaft Right Side 33 splines 6 Bolt flange 20.35 inches long fits 2007 to 2009 Hummer H2 with GM 9.25 inch IFS Front AWD see number 1 CLICK HERE for More Details Part Number: 40057073 Diagram Number: 1	$128.26	IN STOCK FREE SHIPPING

	AAM 40029252 Inner shaft Right side 33 splines 6 Bolt flange 6.181 inches long for 1988 to 2010 Sierra, Yukon, Silverado, Avalanche, Tahoe, Suburban, Escalade with GM 9.25 inch IFS Clamshell front 4WD see number 25 CLICK HERE for More Details Part Number: 40029252 Diagram Number: 25	$62.95	IN STOCK

BEARING KITS

	AAM 15521873 IFS Output Needle Bearing 1.61 x 2.00 x 0.630 inches fits 1988 to 2010 GM 9.25 in. IFS Clamshell front see number 4 and 27 CLICK HERE for More Details Part Number: 15521873 Diagram Number: 4/27	$7.92	IN STOCK

	AAM 15530296 IFS Needle Bearing for inner shaft 1.50 x 1.88 x 0.630 inches fits 1988 to 2010 GM 9.25 in. IFS Clamshell front see number 29 CLICK HERE for More Details Part Number: 15530296 Diagram Number: 29	$5.95	IN STOCK

	AAM 26041516 IFS Output Needle Bearing .432 x .67 x .51 inches fits 1988 to 2010 GM 9.25 in. IFS Clamshell front see number 26 CLICK HERE for More Details Part Number: 26041516 Diagram Number: 26	$5.55	IN STOCK

	AAM 74067005 Master Bearing Kit fits 1988 to 2011 Chevy and GM Sierra, Silverado, Suburban, Yukon XL, Avalanche with 9.25 inch IFS Salisbury Clamshell Front Axle CLICK HERE for More Details Part Number: 74067005	$135.50	SOLD OUT

CRUSH COLLAR

	AAM 14012691 Collapsible Spacer Crush Collar for 1988 to 2010 Chevy and GMC 9.25 inch Clamshell FRONT CLICK HERE for More Details Part Number: 14012691 Diagram Number: 18	$1.95	IN STOCK

DIFF PARTS

	AAM 11503877 Adjuster BOLT M6 x 1.0 x 14 - 6 PT HEX fits 1988 to 2010 GM 9.25 in. IFS Clamshell front CLICK HERE for More Details Part Number: 11503877	$0.62	IN STOCK

	AAM 11503963 LOCK WASHER for adjuster bolt 12mm OD x 6mm ID x 2mm fits 1988 to 2010 GM 9.25 in. IFS Clamshell front CLICK HERE for More Details Part Number: 11503963	$0.52	IN STOCK

	AAM 14012695 Diff case EMPTY no internals fits GM 9.25 in. IFS Clamshell front fits 3.42 and up ratios CLICK HERE for More Details Part Number: 14012695 Diagram Number: 9	$185.37

	AAM 14042602 Washer for fill plug CLICK HERE for More Details Part Number: 14042602	$1.25	IN STOCK

	AAM 15521875 Diff case adjuster retainer Lock Tab CLICK HERE for More Details Part Number: 15521875	$1.09	IN STOCK

	AAM 15588383 Drain plug washer CLICK HERE for More Details Part Number: 15588383	$1.10	IN STOCK

	AAM 26008812 Diff case adjuster retainer T-Clip CLICK HERE for More Details Part Number: 26008812	$1.59	IN STOCK

	AAM 26031703 Snap ring for Right Side output shaft 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 26031703	$0.79	IN STOCK

	AAM 26045211 Right Side Diff Case Adjuster 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 26045211	$148.34	IN STOCK

	AAM 26058815 Drain plug for GM 8.25 inch IFS front and 9.25 inch clamshell front M12x1.50x35 w/ Magnet CLICK HERE for More Details Part Number: 26058815	$3.20	IN STOCK

	AAM 40026655 Axle vent GM 8.25 inch IFS front and GM 9.25 inch Clamshell front CLICK HERE for More Details Part Number: 40026655	$22.95	IN STOCK

	AAM 40035046 Loaded Open Differential Case CLICK HERE for More Details Part Number: 40035046 Diagram Number: 9	$295.00

	AAM 40040610 Snap ring for Left Side output shaft 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 40040610	$4.34	IN STOCK

	AAM 476753 Fill Plug CLICK HERE for More Details Part Number: 476753	$7.11	IN STOCK

GEARS

	AAM 40058536 Ring and Pinion Gear Set 3.73 Ratio 41 x 11 fits 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 40058536 Diagram Number: 16	$289.95	IN STOCK FREE SHIPPING

	AAM 40072307 Ring and Pinion Gear Set 4.10 Ratio 41 x 10 fits 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 40072307 Diagram Number: 16	$321.25	SOLD OUT

	AAM 40136007 Ring and Pinion Gear Set 5.13 Ratio 41 x 8 fits 1988 to 2010 GM 9.25 inch IFS Clamshell Front CLICK HERE for More Details Part Number: 40136007 Diagram Number: 16	$536.50	IN STOCK FREE SHIPPING

	AAM 40140594 Ring and Pinion gear set 3.42 ratio fits 9.25 inch IFS front 1988 to 2016 Chevy GMC K20, K30 CLICK HERE for More Details Part Number: 40140594 Diagram Number: 16	$289.95	IN STOCK FREE SHIPPING

INSTALL KITS

	AAM 74010011 MASTER INSTALL KIT fits 1999 to 2016 Chevy, GM, Sierra, Silverado, Yukon XL, Avalanche, Hummer H2 with AAM 9.25 inch Clamshell Front Axle CLICK HERE for More Details Part Number: 74010011	~~$90.25~~ $85.95	IN STOCK

PINION YOKE

	AAM 40025925 Pinion Yoke GM 3R series fits Chevy and GMC 8.25 inch IFS and 9.25 inch IFS Front CLICK HERE for More Details Part Number: 40025925 Diagram Number: 21	$59.95	IN STOCK

	AAM 9783762 Pinion Nut CLICK HERE for More Details Part Number: 9783762 Diagram Number: 23	$1.95	IN STOCK

	AAM 517900 WASHER for pinion nut CLICK HERE for More Details Part Number: 517900 Diagram Number: 22	$1.70	IN STOCK

SEALS

	AAM 40051283 Output shaft seal 1988 to 2010 GM 9.25 inch IFS Clamshell Front see number 3 and 28 CLICK HERE for More Details Part Number: 40051283 Diagram Number: 3/28	$9.95	IN STOCK

	AAM 74050005 Output Shaft Seal Kit 1997 to 2010 GM 9.25 IFS Clamshell Front CLICK HERE for More Details Part Number: 74050005	$39.95	IN STOCK

	AAM 40007712 PINION SEAL fits 1988 to 2014 CHEVY and GMC with 9.25 inch Clamshell FRONT Axle CLICK HERE for More Details Part Number: 40007712 Diagram Number: 20	$6.95	IN STOCK

SHIFTER KIT

	AAM 15588371 Return Spring for shift fork fits GM 9.25 inch IFS Clamshell front CLICK HERE for More Details Part Number: 15588371	$0.42	IN STOCK

	AAM 74080008 Disconnect Shifter Kit fits 2001 - 2012 GM 9.25 inch IFS Clamshell front CLICK HERE for More Details Part Number: 74080008	$166.85	IN STOCK FREE SHIPPING

SPIDER GEARS

	AAM 74040363 Spider Gear Kit fits 2007 to 2010 GM 9.25 inch IFS Clamshell front CLICK HERE for More Details Part Number: 74040363 Diagram Number: 10-15	$129.95	IN STOCK FREE SHIPPING

	AAM 74047037 Spider Gear Kit fits 1988 to 2006 GM 9.25 inch IFS Clamshell front CLICK HERE for More Details Part Number: 74047037 Diagram Number: 10-15	$99.72
