Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck


9.5 inch GM REAR End Parts

GM 9.5 inch REAR

Parts for GM 9.5 inch rear differentials with C-CLIP STYLE AXLES ONLY

  • 9.5 inch 14 bolt cover
    • 1981 to 2013 - Chevy and GMC Light Trucks
    • Has a 30 spline pinion
    • 12 bolts on ring gear
  • 9.5 inch 12 bolt cover
    • 2014 to 2018 - Chevy and GMC Light Trucks
    • Has a 32 spline pinion
    • 12 bolts on ring gear

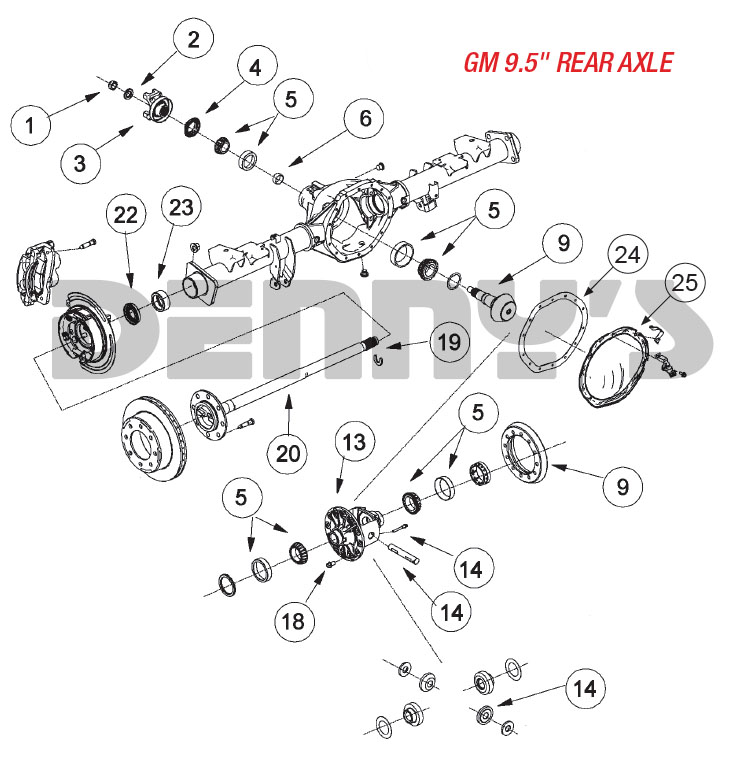

GM 9.5 inch rear end exploded view at Denny's Driveshafts


9.5 inch GM REAR End Parts

AXLE

BEARINGS AND SEALS

AXLE

AAM 74050015 Wheel Bearing and Seal Kit 1997 - 2013 GM 9.5 inch 14 bolt rear CLICK HERE for More Details Part Number: 74050015
Diagram Number:
22-23
$78.95
IN STOCK

DIFFERENTIAL

Timken 3896 Pinion seal for 1981 to 1997 GM 9.5 Inch 14 Bolt Rear End CLICK HERE for More Details Part Number: 3896
Diagram Number:
4
$16.10
IN STOCK
AAM 40088808 Pinion Seal GM 9.5 inch 12 bolt rear 2014, 2015, 2016, 2017, 2018 CLICK HERE for More Details Part Number: 40088808
Diagram Number:
4
$13.25
IN STOCK

DIFF PARTS

AAM 14012703 ring gear bolt fits GM 9.5 inch 14 bolt rear end 1981 to 2013 CLICK HERE for More Details Part Number: 14012703
Diagram Number:
18
$1.08
IN STOCK
AAM 40031306 Ring Gear Bolt for 9.5 inch 14 bolt rear end 1981-2013 CLICK HERE for More Details Part Number: 40031306
Diagram Number:
18
$1.32
IN STOCK
AAM 14012707 diff bearing adjuster lock CLICK HERE for More Details Part Number: 14012707
$2.20
IN STOCK
AAM 14012748 Bolt for Diff bearing adjuster CLICK HERE for More Details Part Number: 14012748
$1.86
IN STOCK

DIFF CASE

AAM 74040363 Spider Gear Kit fits 1981 to 2013 GM 9.5 inch 14 bolt rear end CLICK HERE for More Details Part Number: 74040363
Diagram Number:
14
$127.55
IN STOCK
FREE SHIPPING

DIFF COVER

AAM 40039024 Diff Cover 14 bolt for GM 9.5 inch rear end CLICK HERE for More Details Part Number: 40039024
Diagram Number:
25
$32.95

SOLD OUT
Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10
Diagram Number:
24
$4.94
IN STOCK

GEAR SET

PINION YOKES

with 14 BOLT COVER - 30 SPLINES

AAM 517900 Washer for pinion nut GM 9.5 inch 14 bolt REAR fits up to 2013 CLICK HERE for More Details Part Number: 517900
Diagram Number:
1
$1.70
IN STOCK
AAM 9783762 Pinion nut for 9.5 inch 14 bolt Rear fits up to 2013 CLICK HERE for More Details Part Number: 9783762
Diagram Number:
2
$1.95
IN STOCK

with 12 BOLT COVER - 32 SPLINES
