8.6 inch 10 Bolt REAR end parts

GM 8.6 inch 10 BOLT Rear End Parts

GM 8.6 inch 10 BOLT rear end gears, carriers, axles, bearings, shims, seals, crush collars and more.

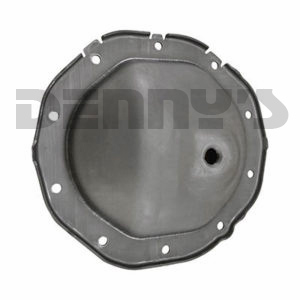

Cover bolts: 10
Ring gear bolts: 10
Ring gear diameter: 8.5/8.6 inches
Ring gear bolt thread: 7/16 - 20
Pinion splines: 30
Pinion nut socket size: inch
Carrier breaks:
- 2.73 and up
Axles: C Clip Style
Axle splines: 30
Years: 1999 up to 2018
1999 and newer 1/2 ton and SUV with REAR DISC Brakes

8.6 inch 10 Bolt REAR end parts

DIFFERENTIAL PARTS

BEARINGS

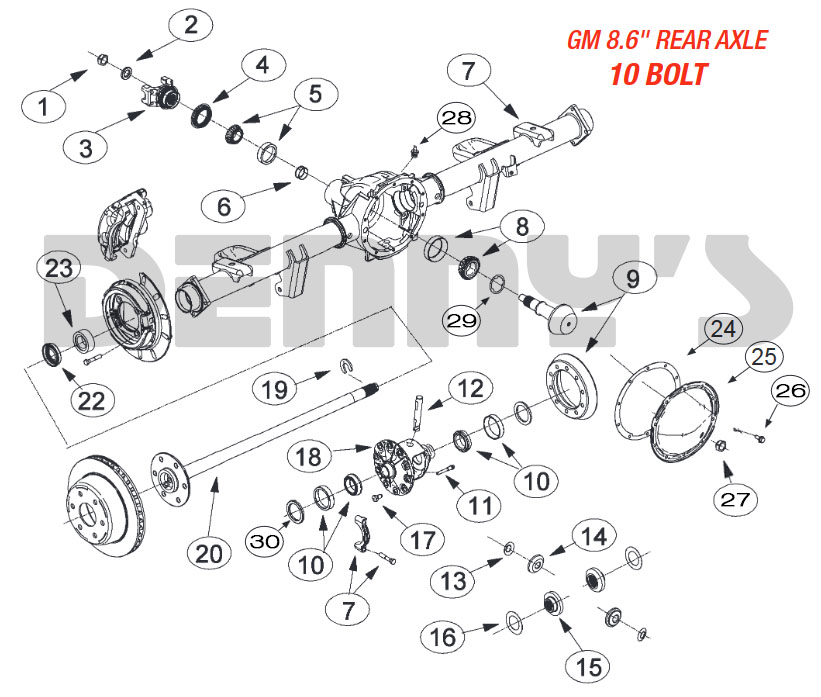

	AAM 74010008 MASTER INSTALL KIT fits GM 8.6 inch 10 bolt REAR 1998 to 2012 GM 1/2 ton - Sierra, Silverado, Yukon, Denali, Suburban, Excalade, Avalanche CLICK HERE for More Details Part Number: 74010008 Diagram Number: 1,2,4,6,17,19,22,24,26,27	$163.49	IN STOCK FREE SHIPPING

	AAM 74067008 Master Bearing Kit fits GM 8.6 inch 10 bolt rear 1999 to 2008 1/2 ton Sierra, Silverado, Yukon, Denali, Suburban, Excalade, Avalanche, H3, H3T CLICK HERE for More Details Part Number: 74067008 Diagram Number: 1,2,4,5,6,8,10	$103.80	IN STOCK

	AAM 74067016 Master Bearing Kit fits GM 8.6 inch HD 10 bolt rear 2009 to 2014 GM 1/2 ton Sierra, Silverado, Yukon, Denali, Suburban, Excalade, Avalanche CLICK HERE for More Details Part Number: 74067016 Diagram Number: 1,2,4,5,6,8,10	$128.39	IN STOCK

	DT Components DRK-321CMK Master Bearing kit fits GM 8.6 inch 10 bolt REAR end 1998 to 2008 CLICK HERE for More Details Part Number: DRK-321CMK	$142.95	IN STOCK FREE SHIPPING

	DT Components DRK-321QMK Master Bearing kit fits 2009 to 2014 Chevy GMC 8.6 inch 10 bolt corporate REAR end CLICK HERE for More Details Part Number: DRK-321QMK Diagram Number: 1,4,5,6,8,10,17,29,30	$199.95	IN STOCK FREE SHIPPING

	AAM 40001710 Axle Seal 1990 and newer CLICK HERE for More Details Part Number: 40001710 Diagram Number: 22	$6.26	IN STOCK

	AAM 40008157 Axle Bearing 2.795 in. OD fits 1990 and newer 8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 40008157 Diagram Number: 23	$24.71	IN STOCK

	AAM 74070008 Wheel Bearing and Seal Kit with C-Clip for Rear axle GM 8.6 inch 10 Bolt REAR 1990 and newer Chevy GMC 1/2 ton CLICK HERE for More Details Part Number: 74070008 Diagram Number: 19,22,23	$30.75	IN STOCK

	Timken LM603012 CLICK HERE for More Details Part Number: LM603012 Diagram Number: 10	$10.60	IN STOCK

	TIMKEN LM603049 Tapered Roller Bearing CONE CLICK HERE for More Details Part Number: LM603049 Diagram Number: 10	$17.46	IN STOCK

	TIMKEN SET 36 Bearing Set Includes LM603049 CONE LM603012 CUP CLICK HERE for More Details Part Number: SET 36 Diagram Number: 10	$24.33	IN STOCK

CRUSH COLLAR

	AAM 40010355 Collapsable Spacer Crush Collar for GM 8.5, 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 40010355 Diagram Number: 6	$2.10	IN STOCK

DIFF CARRIER - LIMITED SLIP

	AAM 40135974 Tracrite GT Helical Gear Limited Slip Differential Case Assembly fits 8.6 inch 10 bolt REAR with 30 spline axles CLICK HERE for More Details Part Number: 40135974 Diagram Number: 18	$471.40

DIFF CARRIER - OPEN

	AAM 40048044 Open Diff Carrier loaded case fits 1999 to 2018 GM 8.6 inch 10 bolt rear 1/2 ton pickups, Tahoe, Yukon, Avalanche, Escalade with 30 spline rear axles CLICK HERE for More Details Part Number: 40048044 Diagram Number: 18	$242.50	IN STOCK FREE SHIPPING

SPIDER GEARS - OPEN DIFF

	AAM 3833322 C-Clip for REAR axle shaft GM 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 3833322 Diagram Number: 19	$1.25	IN STOCK

	AAM 74047014 Spider Gear Kit fits 30 spline axles for OPEN diff 1999 to mid 2000 Chevy and GMC 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 74047014 Diagram Number: 11-16	$101.31	IN STOCK

	AAM 74047015 Spider Gear Kit fits 30 spline axles for OPEN diff Mid 2000 to 2008 Chevy and GMC 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 74047015 Diagram Number: 11-16	$96.98	IN STOCK

	AAM 74040887 Spider Gear Kit fits 30 spline axles for OPEN diff 2009 to 2012 Chevy and GMC Hummer H3 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 74040887 Diagram Number: 11-16	$99.46	IN STOCK

DIFF COVER

	AAM 74030007 Diff COVER KIT fits 8.6 inch 10 bolt rear end 1998 to 2012 Sierra, Silverado, Yukon, Tahoe, Escalade, Avalanche, Savana, Express, S10, Sonoma, Blazer, Jimmy, Bravada CLICK HERE for More Details Part Number: 74030007 Diagram Number: 24,25,26	$43.99	IN STOCK

	AAM 74030006 Diff COVER KIT fits 8.6 inch 10 bolt rear end 2004 to 2012 H3, H3T, Colorado, Canyon CLICK HERE for More Details Part Number: 74030006 Diagram Number: 24,25,26	$46.44	IN STOCK

	AAM 40011068 Diff Cover fits 8.6 inch 10 bolt rear fits 1999 to 2006 DISCONTINUED No longer available CLICK HERE for More Details Part Number: 40011068 Diagram Number: 25	$26.35

	AAM 40027020 Diff COVER fits 8.6 inch 10 bolt rear end 2008 to 2012 Trailblazer Envoy CLICK HERE for More Details Part Number: 40027020 Diagram Number: 25	$24.65	IN STOCK

	AAM 40002169 Diff Cover BOLT metric thread M8 x 1.25 x 22 fits 8.6 inch 10 bolt rear end CLICK HERE for More Details Part Number: 40002169 Diagram Number: 26	$1.32	IN STOCK

	AAM 40060238 Stub Bolt for diff cover to hold brake line CLICK HERE for More Details Part Number: 40060238 Diagram Number: 26	$3.25	IN STOCK

VENTS and FILL PLUGS

	AAM 26062696 Axle Vent PRESS IN 8mm straight barb CLICK HERE for More Details Part Number: 26062696 Diagram Number: 28	$1.49	IN STOCK

	AAM 40007601 diff fill plug fits GM 8.6 inch rear, Ram 10.5 inch and 11.5 inch rear CLICK HERE for More Details Part Number: 40007601 Diagram Number: 27	$2.94	IN STOCK

RING AND PINION GEAR SETS

	AAM 40127810 Ring and Pinion Gear Set 3.08 ratio (40-13) fits 8.5/8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 40127810 Diagram Number: 9	$323.39	IN STOCK FREE SHIPPING

	AAM 40053029 Ring and Pinion Gear Set 3.42 ratio (41-12) fits 8.5/8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 40053029 Diagram Number: 9	$321.25	IN STOCK FREE SHIPPING

	AAM 26066706 Ring and Pinion Gear Set 3.73 ratio (41-11) fits 8.5/8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 26066706 Diagram Number: 9	$321.25	IN STOCK FREE SHIPPING

	AAM 40053031 Ring and Pinion Gear Set 4.10 ratio (41-10) fits 8.5/8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 40053031 Diagram Number: 9	$326.47	IN STOCK FREE SHIPPING

	AAM 40053802 Ring and Pinion Gear Set 4.56 ratio (41-9) fits 8.5/8.6 inch 10 bolt rear CLICK HERE for More Details Part Number: 40053802 Diagram Number: 9	$327.19

	AAM 40061033 Ring Gear Bolt for 8.6 inch 10 bolt rear 7/16 x 20 x .88 - LH 6 PT SERRATED HEX W/ ADHESIVE CLICK HERE for More Details Part Number: 40061033 Diagram Number: 9	$0.96	IN STOCK

PINION YOKES

	9966401 Pinion Yoke 3R Series 30 splines for inside c-clip style u-joint fits 1999 and newer Chevy and GM 8.6 inch 10 bolt rear end CLICK HERE for More Details Part Number: 9966401 Diagram Number: 3	$116.20	IN STOCK

	9985702 Pinion Yoke 1350 series for 1999 and newer Chevrolet and GMC car and light truck 8.6 inch 10 bolt rear end CLICK HERE for More Details Part Number: 9985702 Diagram Number: 3	$83.55	SOLD OUT

	AAM 517900 Washer for pinion nut GM 8.6 inch 10 bolt REAR CLICK HERE for More Details Part Number: 517900 Diagram Number: 2	$1.89	IN STOCK

	AAM 9783762 Pinion nut for 8.6 inch 10 bolt Rear CLICK HERE for More Details Part Number: 9783762 Diagram Number: 1	$2.09	IN STOCK

	AAM 26064028 Pinion Seal fits 1999 to 2008 GM 8.6 inch 10 bolt Rear pinion yokes designed for triple lip seal CLICK HERE for More Details Part Number: 26064028 Diagram Number: 4	$9.86	IN STOCK

	AAM 26064029 PINION SEAL fits 2009 to 2018 CHEVY and GMC with 8.6 inch 10 Bolt REAR CLICK HERE for More Details Part Number: 26064029 Diagram Number: 4	$12.51	IN STOCK

	AAM 74020007 PINION SEAL KIT fits 1999 to 2012 CHEVY and GM with 8.6 inch REAR Axle CLICK HERE for More Details Part Number: 74020007 Diagram Number: 1,2,4,6	$29.11	IN STOCK

	AAM 26060975 PINION SEAL SLEEVE fits 1999 and newer CHEVY and GMC with 8.6 inch 10 Bolt REAR CLICK HERE for More Details Part Number: 26060975 Diagram Number: 4	$7.55	IN STOCK

AXLE SHAFTS

5 LUG

	AAM 26010415 axle shaft 5 lug 5 inch bolt circle 30 splines 31.378 inches fits GM 8.5 inch 10 bolt rear Chevy and GMC 2 wheel drive C-Trucks from 1988 to 1991 CLICK HERE for More Details Part Number: 26010415 Diagram Number: 20	$138.55	IN STOCK FREE SHIPPING

	AAM 26010417 axle shaft 5 lug 5 inch bolt circle 30 splines 31.812 inches fits GM 8.5 inch 10 bolt rear Chevy and GMC 2 wheel drive Tahoe, Yukon, Suburban from 1992 to 1998 CLICK HERE for More Details Part Number: 26010417 Diagram Number: 20	$138.55	IN STOCK FREE SHIPPING

6 LUG

	AAM 40009029 Axle shaft 6 lug 30 splines 34.44 inches fits GM 8.6 inch 10 bolt rear Chevy and GMC G Vans with rear disc brakes from 2002 to 2011 CLICK HERE for More Details Part Number: 40009129 Diagram Number: 20	$337.00	IN STOCK FREE SHIPPING

	AAM 40019701 Axle shaft 6 lug 5.5 inch bolt circle 30 splines 34.09 inches fits GM 8.6 inch 10 bolt rear Chevy and GMC 1/2 ton, SUV, Suburban, Tahoe from 2007 to 2017 CLICK HERE for More Details Part Number: 40019701 Diagram Number: 20	$247.75	IN STOCK FREE SHIPPING

	AAM 40022632 Axle shaft 6 lug 5.47 inch bolt circle 30 splines 33.58 inches fits GM 8.6 inch 10 bolt rear HUMMER H3 from 2006 to 2011 CLICK HERE for More Details Part Number: 40022632 Diagram Number: 20	$227.62	IN STOCK FREE SHIPPING

ABS TONE RING

	AAM 40016199 ABS exciter ring - 55 TEETH (2003-2006 Escalade, Tahoe, Yukon, Hummer GMT820) CLICK HERE for More Details Part Number: 40016199	$32.45	IN STOCK

	AAM 40030759 ABS exciter ring - 32 TEETH (2007+ Silverado / Sierra GMT900) CLICK HERE for More Details Part Number: 40030759	$23.08	IN STOCK
