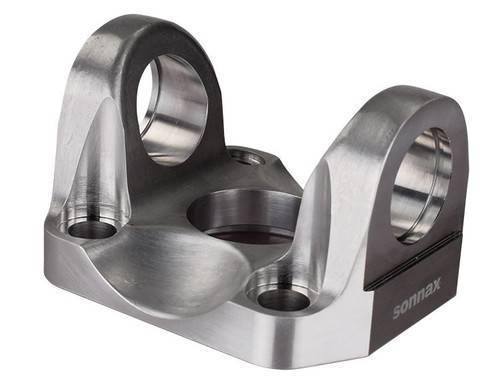

Driveshaft and Driveline Parts > FLANGE YOKES > ALUMINUM FLANGE YOKES > 1350 series OUTSIDE Snap Ring

Sonnax T3-2-1859A

Aluminum Flange Yoke

• 1350 series
  • Fits 1350 series universal joints listed at bottom of this page
  • Fits 3.625 x 1.188 u-joint size
• Outside Snap Ring style
• 2.95 inch female pilot
• 4.75 inch bolt circle
• 1.750 inch CL to mounting face

• Material: 6061-T6 Aluminum
• Bolt Hole Dia.: 0.516"
• Weight (lbs): 1.270
• Bolt Count: 4

NOTE:

• Dimensionally the same as Dana Spicer 3-2-1859 steel flange yoke

Sonnax T3-2-1579A

Aluminum Flange Yoke

• 1350 series
  • Fits 1350 series universal joints listed at bottom of this page
  • Fits 3.625 x 1.188 u-joint size
• Outside Snap Ring style
• 2 inch female pilot
• 4.25 inch bolt circle
• 1.625 inch CL to mounting face

NOTE:

• Dimensionally the same as Dana Spicer 3-2-1579 and Neapco N3-2-1579 steel flange yoke

Sonnax T3-2-119A

Aluminum Flange Yoke

• 1350 series
  • Fits 1350 series universal joints listed at bottom of this page
  • Fits 3.625 x 1.188 u-joint size
• Outside Snap Ring style
• 2.75 inch male pilot
• 3.75 inch bolt circle
• 1.562 inch CL to mounting face

NOTE:

• Dimensionally the same as Dana Spicer 3-2-119 steel flange yoke

Sonnax T3-2-949A

Aluminum Flange Yoke

• 1350 series
  • Fits 1350 series universal joints listed at bottom of this page
  • Fits 3.625 x 1.188 u-joint size
• Outside Snap Ring style
• 2 inch female pilot
• 3.5 inch bolt circle
• 1.65 inch CL to mounting face

Material: 6061-T6 Aluminum

• Bolt Count: 4
• Bolt Hole Dia.: 0.516"
• Flange Face to Centerline: 1.550"
• Weight (lbs): 0.870

SONNAX T35-ALFY-09

6-Bolt Adapter Flange Yoke Kit

• Fits Ford Mustang with 95mm bolt circle dia. pinion flange (automatic 2005–2014, manual 2005–2019).

Sonnax 6-bolt adapter flange yoke kit T35-ALFY-09 is an ideal upgrade for 2005–2019 Ford Mustang driveshafts. Specifically designed to bolt up to 95mm bolt circle diameter pinion flanges, the Sonnax yoke allows elimination of the OE CV joint. When used with a stub and slip assembly, it makes it easy to also eliminate the rubber guibo or "flex" joint, converting a two-piece driveshaft into a one-piece, U-joint style driveline.

• Note:
  • Sonnax flange yoke T35-ALFY-09 is a custom part and may fit more models than noted above. Measure flange O.D, output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

SONNAX T35-ALFY-10

6-Bolt Adapter Flange Yoke Kit

• Fits Ford Mustang with 93mm bolt circle dia. pinion flange (automatic 2015–2019).

Sonnax 6-bolt adapter flange yoke kit T35-ALFY-10 is an ideal upgrade for 2015–2019 Ford Mustang driveshafts. Specifically designed to bolt up to 93mm bolt circle diameter pinion flanges, the Sonnax yoke allows elimination of the OE CV joint. When used with a stub and slip assembly, it makes it easy to also eliminate the rubber giubo or "flex" joint, converting a two-piece driveshaft into a one-piece, U-joint style driveline.

• Note:
  • Sonnax flange yoke kit T35-ALFY-10 is a custom part and may fit more models than noted above. Measure flange O.D., output flange bolt holes and bolt circle diameter to determine if this yoke is appropriate for your build.

SONNAX T35-GMFD-01

3 Bolt Adapter Flange Yoke

REPLACED by T35-GMFD-01K - CLICK HERE

SONNAX T35-ALFY-07

6 Bolt Adapter Flange Yoke fits Hellcat and SRT8 transmissions ZF8HP and TR6060

Allows you to connect a 1350 series spline and slip style driveshaft to the transmissions listed below.

• 2015 and later Dodge Hellcat with ZF8HP and TR6060 transmissions
• 2013 and later Dodge SRT8 with Scat Pack with ZF8HP and TR6060 transmissions
• Also fits rear in BMW with 94 mm CV flange at rear end pinion
• 2009–2015 Cadillac CTS-V sedan coupe and wagon with 6L90; and ZF8HP90.

Sonnax T35-GMFD-01K

• Fits 6L80, 6L90, 8L90, 10L90, TR6060, TR3160
• 3 Bolt Aluminum Adapter Flange Yoke

Allows you to connect a 1350 series spline and slip style driveshaft to the applications listed below.

• Fits GM 6L80, 6L90 transmissions in 2010 to 2016 Chevrolet Camaro. Fits front and rear
  • Fits 2017 and newer Camaro 8L90 with .500 inch pilot when spacer is installed
  • T35-GMFD-01K Includes spacer for 8L90, 10L90
• Fits TR6060 manual transmissions with 3 bolt flange in 2015 and newer Ford Mustang V8 applications. Does NOT fit rear.
• Fits 2005, 2006 GTO rear end 3 bolt pinion flange only.

  • DOES NOT FIT 2004 GTO rear.


SONNAX T35-ALFY-08

8 Bolt Adapter Flange Yoke

Allows you to connect a 1350 series spline and slip style driveshaft to the applications listed below.

• 2015 and later Dodge Hellcat
• 2013 and later Dodge SRT 392
• Scat Pack Challenger
• Chrysler 300
