Denny's Driveshafts offer a variety of Pontiac attaching hardware for the passenger car and station wagon models. The typical Olds rear end pinion yoke utilizes a strap and bolt design to hold the rear universal joint into the yoke. Disconnecting the 4 bolts and 2 straps is necessary to remove the driveshaft to from the car.
Denny's offers both the original equipment strap and bolt set and also the u-bolt set as replacements to match your existing pinion yoke hardware.
A strap and bolt style pinion yoke will have 4 threaded holes for the bolts to thread into.
The u-bolt style pinion yoke will have 4 holes drilled straight through.
Please measure your pinion yoke saddle where the bearing cap fits into before ordering. The 1310 and 1330 series pinion yokes will be machined for a 1.062 bearing cap and the GM 3R series will be machined for a 1.125 bearing cap. The 1350 series will be machined for a 1.187 bearing cap.
1310-1330 Series U-Bolt Set. Use on any 1310 or 1330 series pinion yoke designed for a 1.062 ( 1 1/16th ) bearing cap diameter. U-bolt set comes with (2) U-bolts (4) lock washers and (4) nuts. Replace that old stretched out original set with a new one.

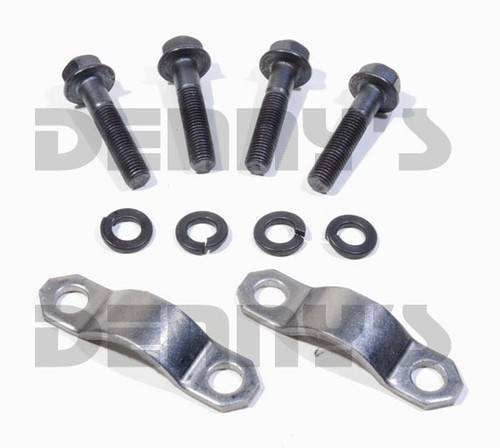

1310-1330 Series Strap & Bolt Set for GM rear end differential pinion yoke. Fits both 1310 and 1330 pinion yokes. Also fits 1330 series Corvette T-400 transmission slip yoke. Strap and bolt set comes with (2) Straps (4) Bolts. Replace that old stretched out original set with a new one.
Fits 3R series pinion yoke in late 60's early 70's Pontiac (BOP rear end) that require a u-bolt set
Fits 3R series universal joint with 1.125 inch caps and INSIDE "C" Clips
See 5-3147X or 5-795X universal joints at bottom of this page
Set includes (2) U-bolts and (4) cone lock nuts.
DOES NOT FIT tab style pinion yokes for 1.062 inch u-joint caps
DOES NOT FIT GM 3R series pinion yokes (no tabs) designed for straps and bolts
Some General Motors Buick Olds Pontiac and Chevy 3R series pinion yokes were designed for u-bolts in the late 60's and early 70's. These have been discontinued and became obsolete many years ago and very hard to find.
We now have them brand new and a perfect fit to replace your old set.
