Driveshaft and Driveline Parts > BUILD IT YOURSELF - PARTS LISTS > 1350 SPLINE and SLIP DRIVESHAFT > BUILD 1350 SERIES with HD 2.125 INCH DIAMETER TUBE > TUBING, WELD YOKE, U-JOINTS

DRIVESHAFT TUBING - DOM

12 INCH LENGTH

2.125 x .188 wall HD tubing

• Each end ID must be counterbored to fit all splines, weld yokes and cv stud yokes made for 2 inch x .120 wall
• Actual butt diameter of 2.0 x .120 weld yoke, spline or stud yoke is 1.771
  • Your tube counterbore should be approximately 1.765 for tight press fit.

• 2.125 INCH OUTSIDE DIAMETER (2 1/8 inch)
• .188 WALL THICKNESS (3/16 inch)
• DOM - Drawn over mandrel
• ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

DRIVESHAFT TUBING - DOM

24 INCH LENGTH

2.125 x .188 wall HD tubing

• Each end ID must be counterbored to fit all splines, weld yokes and cv stud yokes made for 2 inch x .120 wall
• Actual butt diameter of 2.0 x .120 weld yoke, spline or stud yoke is 1.771
  • Your tube counterbore should be approximately 1.765 for tight press fit.

• 2.125 INCH OUTSIDE DIAMETER (2 1/8 inch)
• .188 WALL THICKNESS (3/16 inch)
• DOM - Drawn over mandrel
• ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

DRIVESHAFT TUBING - DOM

36 INCH LENGTH

2.125 x .188 wall HD tubing

• Each end ID must be counterbored to fit all splines, weld yokes and cv stud yokes made for 2 inch x .120 wall
• Actual butt diameter of 2.0 x .120 weld yoke, spline or stud yoke is 1.771
  • Your tube counterbore should be approximately 1.765 for tight press fit.

• 2.125 INCH OUTSIDE DIAMETER (2 1/8 inch)
• .188 WALL THICKNESS (3/16 inch)
• DOM - Drawn over mandrel
• ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

DRIVESHAFT TUBING - DOM

48 INCH LENGTH

2.125 x .188 wall HD tubing

• Each end ID must be counterbored to fit all splines, weld yokes and cv stud yokes made for 2 inch x .120 wall
• Actual butt diameter of 2.0 x .120 weld yoke, spline or stud yoke is 1.771
  • Your tube counterbore should be approximately 1.765 for tight press fit.

• 2.125 INCH OUTSIDE DIAMETER (2 1/8 inch)
• .188 WALL THICKNESS (3/16 inch)
• DOM - Drawn over mandrel
• ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

DANA SPICER 3-28-777

1350 Series Weld Yoke

DRIVESHAFT TUBING - DOM

60 INCH LENGTH

2.125 x .188 wall HD tubing fits all splines, weld yokes and cv stud yokes made for 2 inch x .120 wall.

• 2.125 INCH OUTSIDE DIAMETER (2 1/8 inch)
• .188 WALL THICKNESS (3/16 inch)
• DOM - Drawn over mandrel
• ASTM A513

Great choice for applications requiring additional torsional strength.

Also resists dents from rocks.

DANA SPICER 5-1350X

1350 Series MAINTENANCE FREE U-Joint.

DANA SPICER 5-178X

1350 Series GREASEABLE U-Joint.

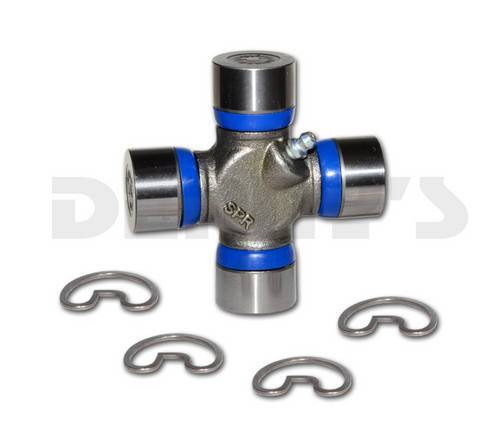

DANA SPICER 5-1350-1X

• 1350 Series Spicer GREASEABLE Universal Joint
• 5-1350-1X greaseable version of the 5-1350X
  • Grease fitting in end of bearing cap

• Dimensions
  • A = 3.625 inches
  • B = 3.625 inches
  • C = bearing caps are 1.188 inch diameter
  • D = bearing caps are 1.188 inch diameter
  • outside snap rings
