FORD Super Duty F-250, F-350, F-450, F-550

2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

COIL Spring FRONT ONLY

Dana Super 60 / 256

256 mm / 10 inch ring gear

Front axle and differential parts

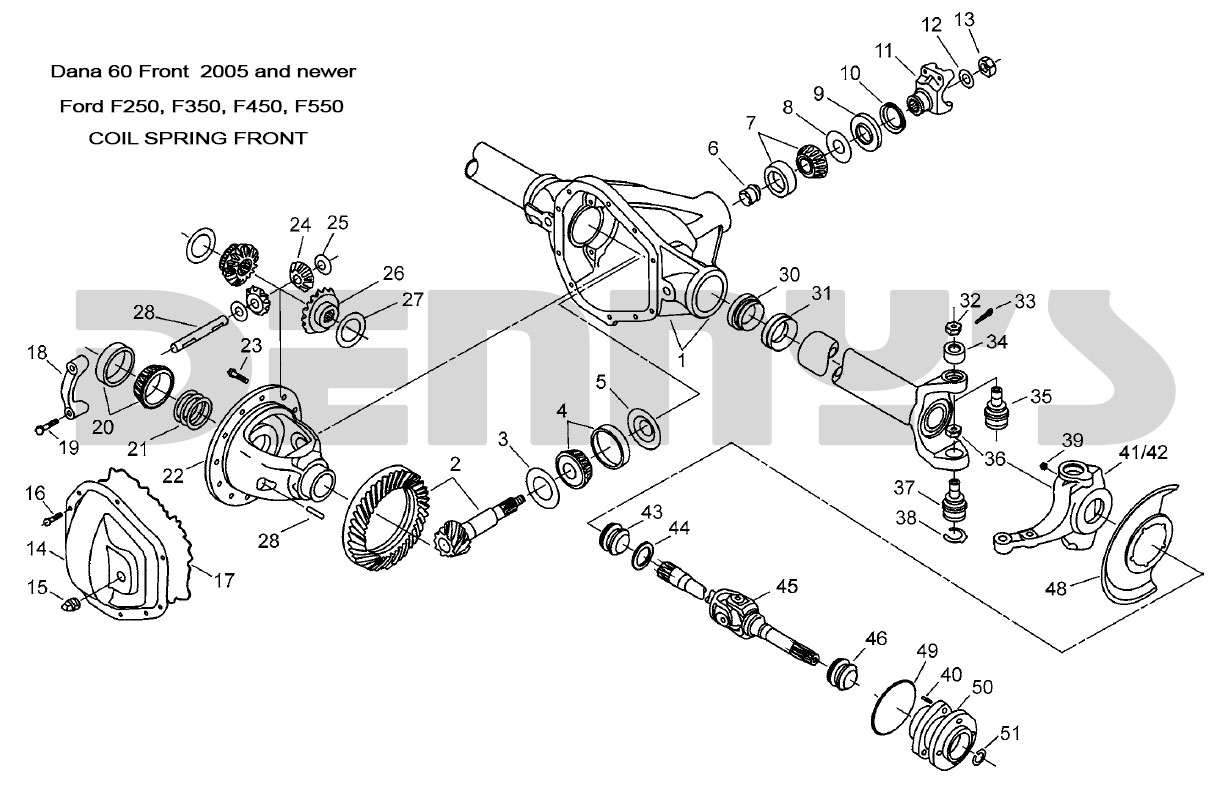

Exploded view Dana 60 front diff 2005 and newer Ford F250, F350, F450, F550 at Denny's Driveshafts

Diagram #	Part #	Description	Diagram #	Part #	Description
1	****	Housing - Refence Only	28	44810	Lock
2	Multiple	Gear Set - See Ring and Pinion Gear	28	30263	Diff Cross Pin
3	703032	Shim Kit for Inner Pinion Bearing	30	2019816	Axle INNER Tube Seal
3	****		31	53987	Guide Tube
4	706046X	Inner Pinion Bearing Cup and Cone	32, 33, 35 - 38	708238	Ball Joint Kit
5	30982	Baffle for Inner pinion bearing	34	****	Camber/Caster Bushing
6	45658	Collapsible Spacer/Crush Collar	39	48660	Nut
7	706045X	Outer Pinion Bearing Cup and Cone	40	Multiple	Stud for hub bearing
8	42737	Thrustwasher	41	Dealer	Knuckle - Right Side
9	Multiple	Pinion Seal	42	Dealer	Knuckle - Left Side
10	47886	Seal for end yoke	43	2014835	Seal housing OUTER tube
11	Multiple	Pinion Yoke	44	2020143	Seal on inner axle
12	30275	Washer for pinion nut	45	Multiple	Axle Shaft Assembly
13	30271	Pinion Nut	45	Multiple	Axle Shaft OUTER
14	Multiple	Diff Cover	45	Multiple	Axle U-Joint
15	****	Plug	46	2023068	Outer Axle Seal
16	34822	Cover Bolt
17	34687	Cover Gasket	48	Dealer	Dust Shield
18	****	Diff Bearing Cap	49	54983	O-Ring
19	48632-2	Bolt for Diff Bearing Cap	50	Dealer	Hub Bearing Assembly
20	706047X	Diff Case Bearings	51	2002360	Snap Ring
21	708012	Diff Bearing Shim Kit
22	Multiple	Diff Case
23	40638	Ring Gear Bolt
24 - 28	Multiple	Spider Gear Kit
24	55654	Small Spider Gear Std Diff
25	54630	Thrustwasher for Sm Spider Gear
26	55650	Larger Spider Gear Std Diff
27	34729	Thrustwasher for Lg Spider Gear

DANA SUPER 60 FRONT - FORD 2005 to 2016

AXLE SNAP RINGS

	Dana Spicer 2002360 Snap Ring for outer stub axle 2005 and newer Ford Dana 60 front F250, F350, F450, F550 CLICK HERE for More Details Part Number: 2002360 Diagram Number: 51	$2.95	IN STOCK

AXLE SEALS

O-Ring

	Dana Spicer 54983 Rubber O RING for wheel hub fits 2005 to 2015 FORD Super Duty F-250, F-350, F-450, F-550 with DANA SUPER 60 Front Axle CLICK HERE for More Details Part Number: 54983 Diagram Number: 49	$1.65	IN STOCK

Vacuum Fitting

	Dana Spicer 45587 axle vent fitting for vacuum hub auto locks Ford Excursion and 1999 and newer Super Duty F250, F350, F450, F550 CLICK HERE for More Details Part Number: 45587	$7.95	IN STOCK

Outer Stub Axle Seal

	Dana Spicer 2023068 Axle Seal fits Outer Axle Shaft 2005 to 2016 FORD Super Duty F-250, F-350, F-450, F-550 with DANA SUPER 60 Front Axle replaces 2017426 and 55474 CLICK HERE for More Details Part Number: 2023068 Diagram Number: 46	$27.95	IN STOCK

Housing OUTER Tube Seal

	Dana Spicer 2014835 Axle Housing Outer Tube Seal 2005 to 2013 FORD Super Duty F-250, F-350, F-450, F-550 with DANA SUPER 60 Front Axle CLICK HERE for More Details Part Number: 2014835 Diagram Number: 43	$20.95	IN STOCK

INNER Tube Seal

	DANA SPICER 2019816 Dana SUPER 60 INNER TUBE Seal fits 2002 to 2016 Ford F-250, F-350, F450, F550 with Monobeam Coil Front replaces 52148 CLICK HERE for More Details Part Number: 2019816 Diagram Number: 30	$19.95	IN STOCK

	DANA SPICER 53987 Black Plastic axle GUIDE for INNER TUBE Seal fits Dana 60 in 2002 to 2016 Ford F-250, F-350, F450, F550 with Monobeam COIL SPRING Front CLICK HERE for More Details Part Number: 53987 Diagram Number: 31	$12.95	IN STOCK

INNER Axle Dust Shield

	Dana Spicer 2020143 Plastic Dust Shield fits Inner Axle shaft 2005 to 2016 Ford Super Duty F250, F350, F450, F550 CLICK HERE for More Details Part Number: 2020143 Diagram Number: 44	$9.95	IN STOCK

AXLE U-JOINT

F250, F350

	Dana Spicer SPL55-1480XC Performance U-Joint BLUE Coated NON Greaseable fits Dana 50 and Dana 60 front axle shafts Optional choice for SPL55-3X applications CLICK HERE for More Details Part Number: SPL55-1480XC	~~$93.77~~ $78.99

	DANA SPICER SPL55-3X Front Axle Universal Joint NON GREASEABLE 3.00 lockup dimension fits OEM Axle shaft 2005 to 2016 FORD F-250 Super Duty, F-350 Super Duty with DANA 60 Front CLICK HERE for More Details Part Number: SPL55-3X	$55.78	IN STOCK

	DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits OEM Axle shaft 2005 to 2016 FORD F-250 Super Duty, F-350 Super Duty with DANA 60 Front CLICK HERE for More Details Part Number: SPL55-4X	$61.77	IN STOCK

	DANA SPICER SPL70-4X Front Axle Universal Joint GREASEABLE 3.780 lockup dimension fits replacement axle part numbers 10013778, 10013781 CLICK HERE for More Details Part Number: SPL70-4X	$114.95	IN STOCK

F450, F550

	Dana Spicer SPL55-1480XC Performance U-Joint BLUE Coated NON Greaseable fits Dana 50 and Dana 60 front axle shafts Optional choice for SPL55-3X applications CLICK HERE for More Details Part Number: SPL55-1480XC	~~$93.77~~ $78.99

	DANA SPICER SPL55-3X Front Axle Universal Joint NON GREASEABLE 3.00 lockup dimension fits 1999 to 2003 FORD F-450, F-550 Super Duty all with DANA Super 60 Front CLICK HERE for More Details Part Number: SPL55-3X	$55.78	IN STOCK

	DANA SPICER SPL55-4X Front Axle Universal Joint GREASEABLE 3.00 lockup dimension fits 1999 to 2003 FORD F-450, F-550 Super Duty all with DANA Super 60 Front CLICK HERE for More Details Part Number: SPL55-4X	$61.77	IN STOCK

	DANA SPICER SPL70-4X Front Axle Universal Joint GREASEABLE 3.780 lockup dimension fits 2005 to 2019 FORD F-450, F-550 Super Duty with DANA Super 60 Front CLICK HERE for More Details Part Number: SPL70-4X	$114.95	IN STOCK

OUTER STUB AXLE

F250, F350 - 2005 to 2013 COIL SPRING FRONT

	Dana Spicer 2023068 Axle Seal fits Outer Axle shaft 2005 to 2016 FORD Super Duty F-250, F-350, F-450, F-550 with DANA SUPER 60 Front Axle replaces 2017426 and 55474 CLICK HERE for More Details Part Number: 2023068 Diagram Number: 46	$27.95	IN STOCK

F450, F550 - 2005 and newer

	DANA SPICER 2001874 OUTER Axle Shaft 35 spline with 2023068 seal fits 2005 to 2011 Ford F450, F550 with Dana Super 60 Front Axle replaces old number 53694 CLICK HERE for More Details Part Number: 2001874	~~$113.49~~ $92.95	IN STOCK

	Dana Spicer 2023068 Axle Seal fits outer axle shaft 2001874 in 2005 to 2016 FORD Super Duty F-450, F-550 with DANA SUPER 60 Front Axle replaces old number 2017426 and 55474 CLICK HERE for More Details Part Number: 2023068 Diagram Number: 46	$27.95	IN STOCK

COMPLETE AXLE ASSEMBLY - 2005 and newer

F250 - F350

	Dana Spicer 10013778 RIGHT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-1 and 2022234-1 CLICK HERE for More Details Part Number: 10013778 Diagram Number: 45	~~$245.95~~ $220.95	IN STOCK FREE SHIPPING

	Dana Spicer 10013781 LEFT SIDE Axle Assembly fits FORD 05 to 16 F-250 and F-350 Super Duty with DANA 60 FRONT Replaces 2013564-2 and 2022234-2 CLICK HERE for More Details Part Number: 10013781 Diagram Number: 45	~~$225.95~~ $195.95	IN STOCK FREE SHIPPING

	DANA SPICER 2001874 OUTER Axle Shaft 35 spline with 2023068 seal fits replacement axle shaft 10013778 and 10013781 CLICK HERE for More Details Part Number: 2001874	~~$113.49~~ $92.95	IN STOCK

F450 - F550

	Dana Spicer 2022236-2 Left Side Axle Assembly fits FORD F-450 and F-550 Super Duty wide track Fat Boy DANA 60 FRONT Replaces 85155-4 CLICK HERE for More Details Part Number: 2022236-2 Diagram Number: 45	$205.75

	Dana Spicer 2022236-1 Right Side Axle Assembly fits FORD F-450 and F-550 Super Duty wide track Fat Boy DANA 60 FRONT Replaces 85155-3 CLICK HERE for More Details Part Number: 2022236-1 Diagram Number: 45	$205.75

BALL JOINTS

	Dana Spicer 708238 BALL JOINT SET for 2005 to 2013 FORD F-250 and F-350 with DANA SUPER 60 Coil Spring Front CLICK HERE for More Details Part Number: 708238 Diagram Number: 32-38	$89.95	IN STOCK

STUD for Wheel Bearing

	Dana Spicer 53644-1 Stud for mounting wheel unit bearing to steering knuckle Dana Super 60 front 6000 GVW 2005 to 2017 Ford F250, F350 CLICK HERE for More Details Part Number: 53644-1 Diagram Number: 40	$8.95	IN STOCK

	Dana Spicer 53644-2 Stud for mounting wheel unit bearing to steering knuckle Dana Super 60 front 7000 GVW 2005 to 2017 Ford F450, F550 CLICK HERE for More Details Part Number: 53644-2 Diagram Number: 40	$2.21	IN STOCK

VENT

	Dana Spicer 46082 Axle Vent for 2021 and newer Ford Super Duty Dana Super 60/256 Front axle CLICK HERE for More Details Part Number: 46082	$7.95	IN STOCK

DIFF PARTS

DIFF CASE and SPIDERS

DANA 60 OPEN DIFF - LOADED CASE

	Dana Spicer 10010271 carrier loaded open standard differential Ford Dana 60 Front 2005-2022 fits 4.30 and numerically lower gears CLICK HERE for More Details Part Number: 10010271 Diagram Number: 22	~~$280.95~~ $239.50	IN STOCK FREE SHIPPING

	Dana Spicer 2005502 Dana 60 / Super 60 Open DIFF CARRIER LOADED CASE 1.50 - 35 spline 4.10 ratio and DOWN fits 2005 to 2018 FORD F250, F350 HIGH PINION Dana 60 FRONT differential CLICK HERE for More Details Part Number: 2005502 Diagram Number: 22	$349.80	IN STOCK FREE SHIPPING

	Dana Spicer 2005501 Dana 60 / Super 60 Open DIFF CARRIER LOADED CASE 1.50 - 35 spline 4.56 ratio and UP fits 2005 to 2018 FORD F250, F350, F450, F550 HIGH PINION Dana 60 FRONT differential CLICK HERE for More Details Part Number: 2005501 Diagram Number: 22	$319.95	IN STOCK FREE SHIPPING

DANA 60 OPEN DIFF - EMPTY CASE

	Dana Spicer 706040X Dana 60 Open DIFF CARRIER CASE 4.10 ratio and DOWN fits FORD HIGH PINION Dana 60 FRONT differential CLICK HERE for More Details Part Number: 706040X Diagram Number: 22	~~$222.42~~ $198.95	SOLD OUT

	Dana Spicer 706041X Dana 60 Open DIFF CARRIER CASE 4.56 ratio and UP fits FORD HIGH PINION Dana 60 FRONT differential CLICK HERE for More Details Part Number: 706041X Diagram Number: 22	$238.00	FACTORY DIRECT

DANA 60 OPEN DIFF - SPIDER GEAR KITS

	Dana Spicer 706702X Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits FORD HIGH PINION Dana 60 FRONT differential case 706040X, 706041X, 2005502 CLICK HERE for More Details Part Number: 706702X Diagram Number: 24-28	~~$320.95~~ $299.95	IN STOCK FREE SHIPPING

	Dana Spicer 708236 Dana 60 Open DIFF SPIDER GEAR KIT 1.50 - 35 spline fits 2004 and newer FORD HIGH PINION Dana 60 FRONT differential case 706041X, 2005501 NEW STYLE FORMED GEARS CLICK HERE for More Details Part Number: 708236 Diagram Number: 24-28	$130.18	IN STOCK FREE SHIPPING

Cross Shaft / Roll Pin

	Dana Spicer 44810 ROLL PIN for Diff Spider Cross shaft fits 1978 to 2015 Ford F250, F350 Dana 60 Front Axle CLICK HERE for More Details Part Number: 44810 Diagram Number: 28	$3.47	IN STOCK

	Dana Spicer 30263 Cross Shaft fits Ford F250, F350 Dana 60 Front Open diff and Track Lok diff case CLICK HERE for More Details Part Number: 30263 Diagram Number: 28	$16.66	IN STOCK

GEARS

	Dana Spicer 708233-4 Dana Super 60 Ring and Pinion Gear Set Kit 4.88 Ratio (39-08) Reverse Rotation Coil Spring FRONT 2002 to 2011 FORD Super Duty F250, F350, F450, F550 - FREE SHIPPING CLICK HERE for More Details Part Number: 708233-4	$523.98

	Dana Spicer 84676 Ring and Pinion Gear Set 4.88 ratio (39-08) fits Dana 60 FRONT in 2004 to 2015 Ford F250, F350, F450, F550 - Reverse Rotation Gears for HIGH PINION FRONT CLICK HERE for More Details Part Number: 84676 Diagram Number: 2	$475.95	SOLD OUT

	DANA SPICER 84677 Ring and Pinion Gear Set 5.38 Ratio (43-08) REVERSE ROTATION for FORD DANA 60 and SUPER 60 front axle - FREE SHIPPING CLICK HERE for More Details Part Number: 84677 Diagram Number: 2	$329.40	SOLD OUT

RING GEAR BOLTS

	Dana Spicer 40638 RING GEAR BOLT 1/2-20 RH Grade 8 hex head fits Dana 60, 61, 70, 70U, 70HD front and rear ends CLICK HERE for More Details Part Number: 40638 Diagram Number: 23	$0.37	IN STOCK

Collapsible Spacer / Crush Collar

	Dana Spicer 45658 Dana 60 and SUPER 60 Crush Sleeve / Collapsable Spacer FORD F-250, F-350, F-450, F-550 from 1999 to 2016 CLICK HERE for More Details Part Number: 45658 Diagram Number: 6	$3.35	IN STOCK

DIFF BEARINGS and SHIMS

DIFF BEARINGS

	DT Components DRK-331AMK Master Bearing Kit fits Dana 60 FRONT 1999-2016 Ford F250, F350, F450, F550 models CLICK HERE for More Details Part Number: DRK-331AMK	~~$209.95~~ $195.95	IN STOCK FREE SHIPPING

	DT Components DRK-331FMK Master Bearing Kit fits Dana 60 FRONT 2017, 2018, 2019 Ford F250, F350, F450, F550 CLICK HERE for More Details Part Number: DRK-331FMK	~~$292.65~~ $260.95	IN STOCK FREE SHIPPING

	DANA SPICER 706047X - FORD DANA 60 Differential Carrier Bearings (2) 382S (2) 387A CLICK HERE for More Details Part Number: 706047X Diagram Number: 20	$89.91	IN STOCK

DIFF SETUP SHIMS

	Dana Spicer 703032 SHIM Kit for INNER pinion bearing Dana 60 front in 2005 and newer Ford F250, F350, F450, F550 CLICK HERE for More Details Part Number: 703032 Diagram Number: 3	~~$32.48~~ $29.25	IN STOCK

	DANA SPICER 708012 Differential Carrier SHIM KIT for Dana 60, 61 CLICK HERE for More Details Part Number: 708012 Diagram Number: 21	~~$48.95~~ $45.67	IN STOCK

PINION BEARINGS

	Dana Spicer 10055782 Inner pinion bearing 2021 and newer Ford Super Duty Dana Super 60/256 Front axle CLICK HERE for More Details Part Number: 10055782	$41.24	IN STOCK

	DANA SPICER 706045X - FORD DANA 60 OUTER PINION Bearing HM88510 and HM88542 CLICK HERE for More Details Part Number: 706045X Diagram Number: 7	$32.95	IN STOCK

	DANA SPICER 706046X - FORD DANA 60 INNER PINION Bearing HM803110 and HM803146 CLICK HERE for More Details Part Number: 706046X Diagram Number: 4	$42.79	IN STOCK

BAFFLES, SLINGERS, THRUST WASHERS

	Dana Spicer 2021009 Baffle for inner pinion bearing 2021 and newer Ford Super Duty Dana Super 60/256 Front axle CLICK HERE for More Details Part Number: 2021009	$1.41	IN STOCK

	Dana Spicer 30982 Baffle 3.480 inch OD for Inner Pinion Bearing Dana 60, 61 front and rear ends CLICK HERE for More Details Part Number: 30982 Diagram Number: 5	$3.55	IN STOCK

	Dana Spicer 42737 THRUST WASHER 2.250 inch OD for Outer Pinion Bearing for DANA 60, 61, 70 front or rear CLICK HERE for More Details Part Number: 42737 Diagram Number: 8	$2.65	IN STOCK

Diff Cover and Gasket

	Dana Spicer 2016946 Diff Cover stamped steel for 1999 to 2022 Ford Dana 60 Front replaces OE Part Numbers DC3Z-4033-A, DC34-4033-CA CLICK HERE for More Details Part Number: 2016946 Diagram Number: 14	~~$32.42~~ $27.15	IN STOCK

	Dana Spicer 34822 Diff Cover BOLT .375-16 fits Dana 60, Super 60, Dana 70, Super 70 CLICK HERE for More Details Part Number: 34822 Diagram Number: 16	$1.85	IN STOCK

	Dana Spicer 38615 Loctite SI 5699 Replaced by 70-31414-10 REINZOSIL RTV Silicone Gasket Maker CLICK HERE for More Details Part Number: 38615 Diagram Number: 17	$7.65

	Victor Reinz 70-31414-10 Reinzosil RTV Silicone Gasket Maker 2.36 oz. (70 ml) tube CLICK HERE for More Details Part Number: 70-31414-10 Diagram Number: 17	$4.94	IN STOCK

	Victor Reinz 70-31414-40 Reinzosil RTV Silicone Gasket Maker 10.48 oz. (310 ml) cartridge for caulking gun CLICK HERE for More Details Part Number: 70-31414-40 Diagram Number: 17	$23.64	IN STOCK

	Dana Spicer 2011159 Steel Differential COVER Kit fits Ford F250, F350 Dana 60 front 1999 to 2015 Fill plug hole 0.480 in. below center CLICK HERE for More Details Part Number: 2011159 Diagram Number: 14-16	$55.47	IN STOCK

	Dana Spicer 34687 DIFF COVER GASKET CLICK HERE for More Details Part Number: 34687	$4.53

	Dana Spicer 43180 Plug for Differential Cover 47707-1 fits Ford F250, F350 Dana 60 front 1999 to 2015 CLICK HERE for More Details Part Number: 43180 Diagram Number: 15	$4.95	IN STOCK

PINION SEALS

	Dana Spicer 2009802 Pinion Seal fits DANA 60 and SUPER 60 FRONT in 2000 to 2016 FORD F-250, F-350, F-450, F-550 CLICK HERE for More Details Part Number: 2009802 Diagram Number: 9	$13.98	IN STOCK

PINION NUT and WASHER

	Dana 60 Pinion NUT CLICK HERE for More Details Part Number: 30271 Diagram Number: 13	$0.95	IN STOCK

	Dana 60 Pinion WASHER CLICK HERE for More Details Part Number: 30275 Diagram Number: 12	$0.45	IN STOCK

PINION YOKE

OEM 1350 Series Replacement

	Dana Spicer 3-4-5731-1X Pinion Yoke 1350 series OEM replacement fits Dana 60 front in 2005 to 2016 Ford Super Duty F250, F350, F450, F550 CLICK HERE for More Details Part Number: 3-4-5731-1X Diagram Number: 11	$55.95	IN STOCK

1350 series OPTIONAL

	Dana 60 Pinion Yoke 1350 series 29 spline U-Bolt Style CLICK HERE for More Details Part Number: 9566266 Diagram Number: 11	~~$138.55~~ $125.95	IN STOCK FREE SHIPPING

	9522421 CHROMOLY Pinion Yoke 1350 series fits Ford Dana 60, 61, 70 front or rear with 29 Spline pinion CLICK HERE for More Details Part Number: 9522421 Diagram Number: 11	$169.95	IN STOCK FREE SHIPPING

1410 series OPTIONAL

	9606112 FORGED Pinion Yoke 1410 series U-Bolt style fits all Dana 60, 61, 70 with 29 spline pinion CLICK HERE for More Details Part Number: 9606112 Diagram Number: 11	$171.55	IN STOCK FREE SHIPPING

	Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series FORD with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style CLICK HERE for More Details Part Number: 3-4-5711-1X Diagram Number: 11	$88.95	IN STOCK

1480 series OPTIONAL

	Dana Spicer 3-4-13391-1X Pinion Yoke 1480 series fits Dana 60 and 70 with 29 spline pinion Strap & Bolt Style CLICK HERE for More Details Part Number: 3-4-13391-1X Diagram Number: 11	$228.95	IN STOCK FREE SHIPPING
