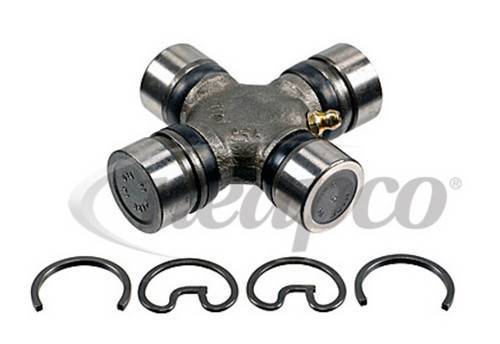

Dennys Driveshafts and Driveline Parts - Combo U-Joint 1310 to DODGE 7290 series 3.219 OUTSIDE to 2.625 INSIDE

1310 to 7290 series Combination Universal Joints

To connect 1310 series driveshafts or driveline components to 7290 series driveshafts or driveline components.
- For example:
  - to connect a 1310 slip yoke to a 7290 driveshaft.
  - to connect a 7290 driveshaft to a 1310 rear end pinion yoke
1310 series
- 3.219 inches (3 7/32) wide across bearing caps
- 2 bearing caps are 1.062 inch (1 1/16) diameter
- Designed for Outside snap ring style driveshaft yokes and also Locating Tab style pinion yokes, transmission yokes and transfer case yokes
7290 series
- 2.625 inches (2 5/8) wide between the yoke inner surfaces where the "C" Clips lock in. Approximate overall width cap to cap is 3 5/8 inches
- 2 bearing caps are 1.125 (1 1/8) inch diameter
- Designed for INSIDE snap ring style driveshaft yokes and also NON Locating Tab style pinion yokes, transmission yokes and transfer case yokes
